AS363-24V-OE is directly soldered with LED & Free wheeling diode across coil. These can be done with the jumpers supplied with current including LED current.
Key Specifications
| Type | 1 C/O Modules with Jumpers |
| Series | AS363 |
| Part Number | AS363-24V-OE |
| Mount | Din Rail |
| Nominal Coil Voltage | 24VDC |
| Number of Relays | 4 |
| Warranty | 1 Year |
Features
• LED & Freewheeling diode across coil
• Jumpers for Coil Looping
• Reverse Polarity blocking diode
Detailed Specifications
| Contact configuration | 1C/O |
| Number of channels | 1, 2, 4, 8, 12, 16 |
| Must operate voltage | 21VDC |
| Must release voltage | 6.2VDC |
| Max coil voltage | 26.4VDC |
| Set time | 15 ms |
| Reset time | 20 ms |
| Relay contact rating | 10A@28VDC/230VAC |
| On board contact rating | 5A@28VDC/230VAC |
| Coil termination type | Screw type |
| Contact termination type | Screw type |
| Operating ambient | 0 - 55°C |
| Dimensions (WxHxD) | 68 x 80 x 70 mm |
| Weight | 200 gm |
Datasheet:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 931.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

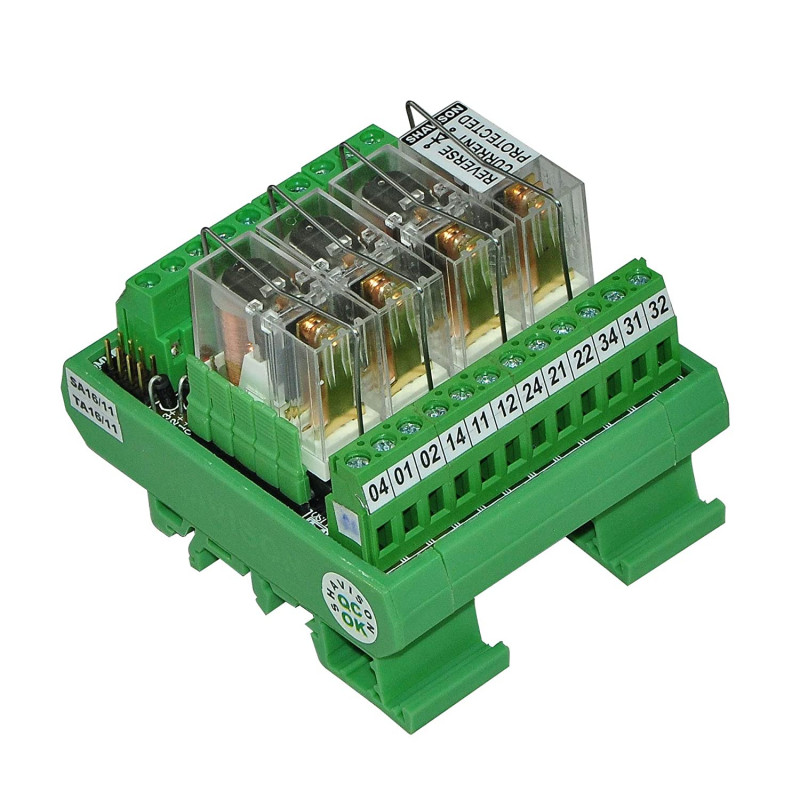

AS363-24V-OE Shavison 4 Channel 24V Solid State Relay Module 230V 5A with Reverse Blocking Diode and Led Indicator
- Product Code: EC-4465
- Availability: Out Of Stock
-
Rs.789.00
- (Excluding 18% GST)
