The C016 20D003 110 10 from Amphenol is an ecomate circular female cable connector with 3 + PE contacts. The ecomate series provide easy operation, reduced dimensions, robust design, quick and easy assembly. This connectors main area of application is in the field of plant construction and machine building. It is used for measuring and controlling applications as well as for power supply technology. This ergonomically designed connectors are approved by UL E63093, CSA 48932, VDE 1781/1780, SEV 00.0394 standards and designed for safe handling.

Features:

1. Silver-plated contacts and screw termination
2. Cable diameter from 6mm to 10mm
3. Rated voltage of 400V according to DIN EN 60664-1/IEC 60664-1 standard
4. Contact resistance is less than or equal to 5mohm according to DIN EN 60512-2/IEC 60512-2 (test 2a)
5. Current carrying capacity of 16A at 55C according to DIN EN 60512-3/IEC 60512-2 (test 5b)
6. Operating temperature range from -40C to 100C
7. IP67/IP65degree of protection in accordance with DIN EN 60529/IEC 60529 standard
8. Blue colourpolyamide (PA6/PA6.6)housing
9. Maximum wire gaugeof 2.5mm
10. Strain relief with cable retention and clamping ring

Specifications:

1. Product Range: Ecomate C016 Series
2. Circular Connector Shell Style: Cable Mount Receptacle
3. No. of Contacts: 4Contacts
4. Circular Contact Type: Screw Socket
5. Coupling Style: Threaded
6. Connector Body Material: Nylon (Polyamide) Body
7. Contact Plating:Silver

Package Includes:

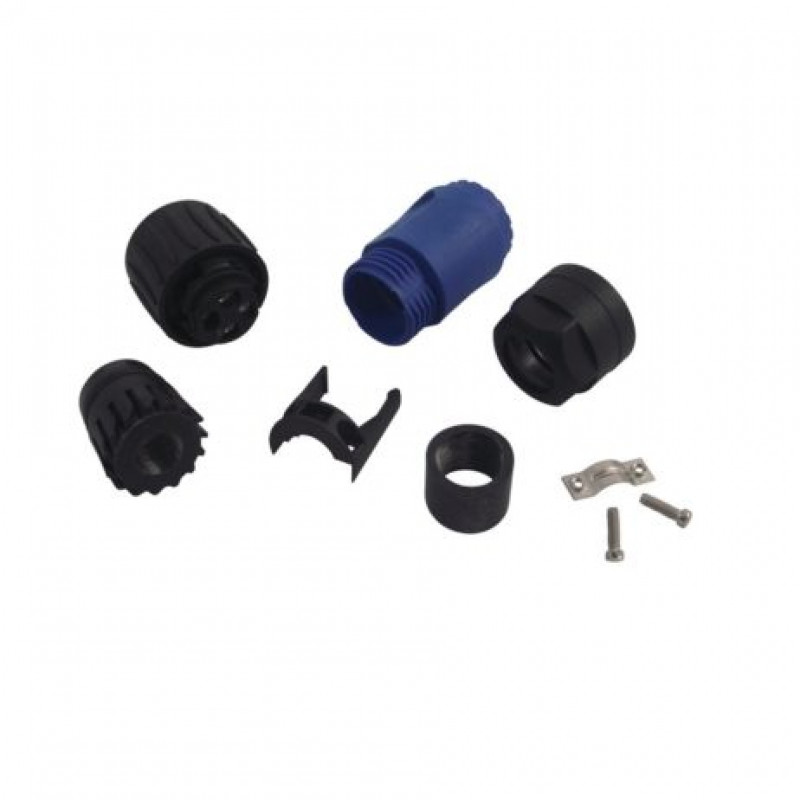

1 x C016 20D003 110 10-CIRCULAR CONN, RCPT, 3+PE WAY,
