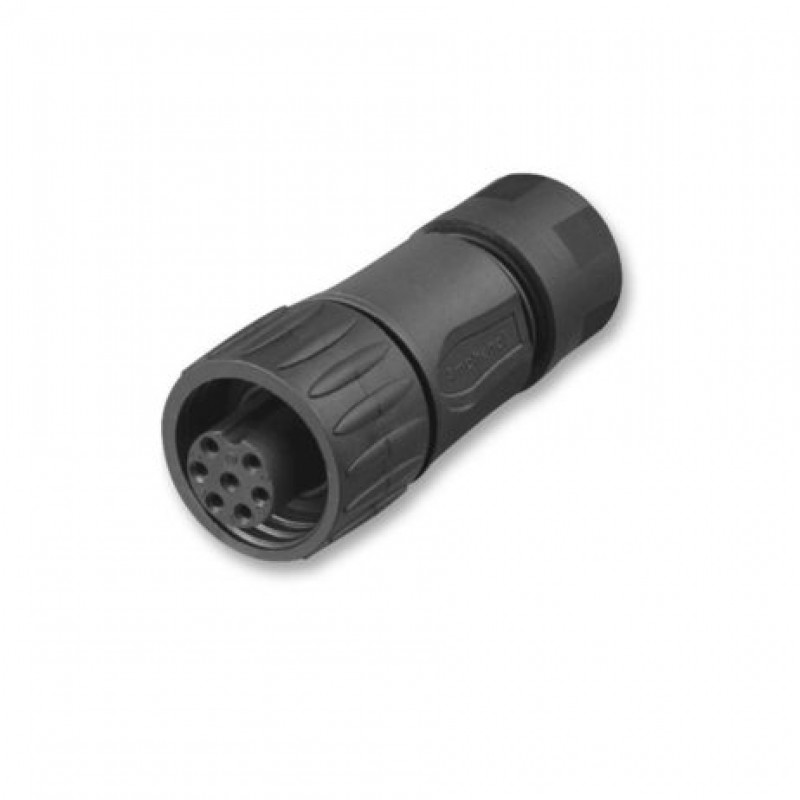

The C016 30D006 100 12 is a 6 + PE-position female straight Cable Connector with silver-plated contacts and a black backshell. The C016 series cable connector with strain relief and clamping ring. In design and conception, the Ecomate program meets the high requirements for applications in industrial technology. It is suitable for a 0.75 mm wire gauge.
Features:
- Quick and easy assembly
- Ergonomically designed product range for safe handling
- Housing components made from the premium molding material
- >=10R Insulation resistance
- <=5mR Contact resistance
- Protection class IP65/67 in the mated condition in accordance with DIN EN 60526
Specifications:
- No. of contacts: 6+PE
- Termination: solder
- Wire Gauge: AWG 18
- Rated Insulation Voltage: 250
- Current carrying capacity: 12A/+55C , 12A /+ 131F
- Protection Class: IP 65 /IP 67
- Locking system: Thread Coupling
Package Includes:
1 x C016 30D006 100 12-SOCKET, FREE, ECOMATE, 6+PE
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
C016 30D006 100 12-Socket, Free, Ecomate, 6+PE
- Product Code: EC-21378
- Availability: Out Of Stock
-
Rs.1009.00
- (Excluding 18% GST)
