Camera Flange is the base for collaborative robots from Elephant Robotics. Camera Flange helps you complete more creative robots. Used for my Cobot 280 M5Stackmy Cobot 280 PiMyCobot 280 For Arduinomy Cobot 280 Jetson Nanomy Palletizer 260 M5Stackmy Palletizer 260 Pimech Arm 270 M5mechArm 270 Pimy Buddy 280.
Features:
- Adopt color wide-angle high-definition 720P; Support MJPEand YUV format; With standard USB2.0 high-speed interface.

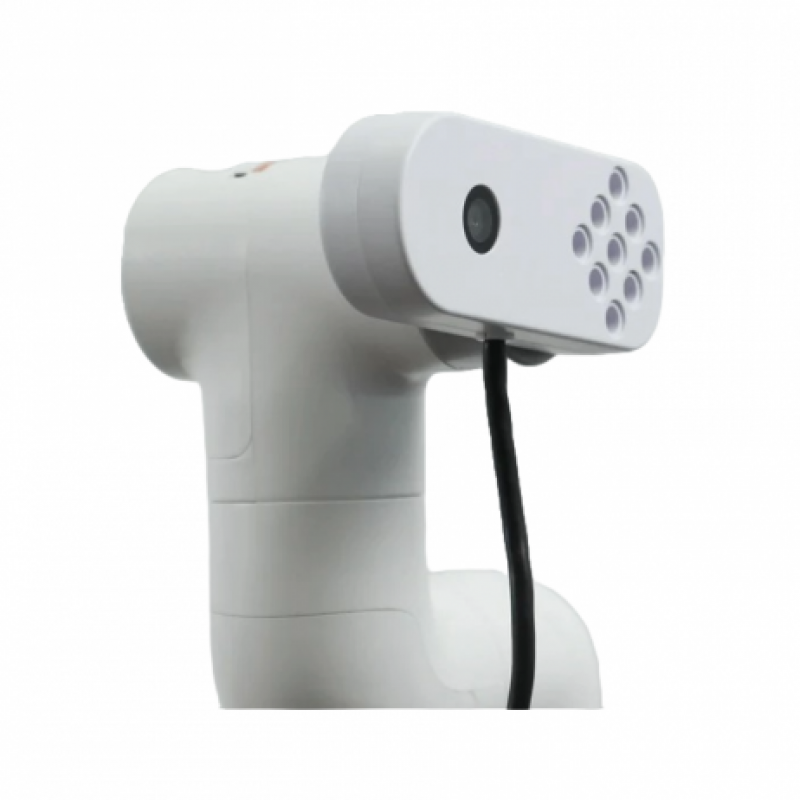

- It installs in minutes on the Robot arm. Plug-and-play. It is very convenient and fast.
- The compact design and small volume let you dont worry about taking up too much space.
- Lightweight and Easy to Carry
Specifications:
- Size: 18x18x20mm
- Maximum pixels: 1 million 1280X720
- Support image formats: YUV, MJPEG
- Pixel size: 3.4umX3.4um
- Maximum frame rate: 1280720 @ 25fps
- USB protocol: USB2.0 HS/FS
- Supported resolution: 1280X720, 640X480, 320X240
- Power supply: DC5V 90mA
- Lens focal length Standard: 1.7mm
- Field of view angle: 60
- Supported systems: Win7/8/10, Linux, MAC
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Camera Flange 2.0 Version
- Product Code: EC-26359
- Availability: Out Of Stock
-
Rs.14444.00
- (Excluding 18% GST)
