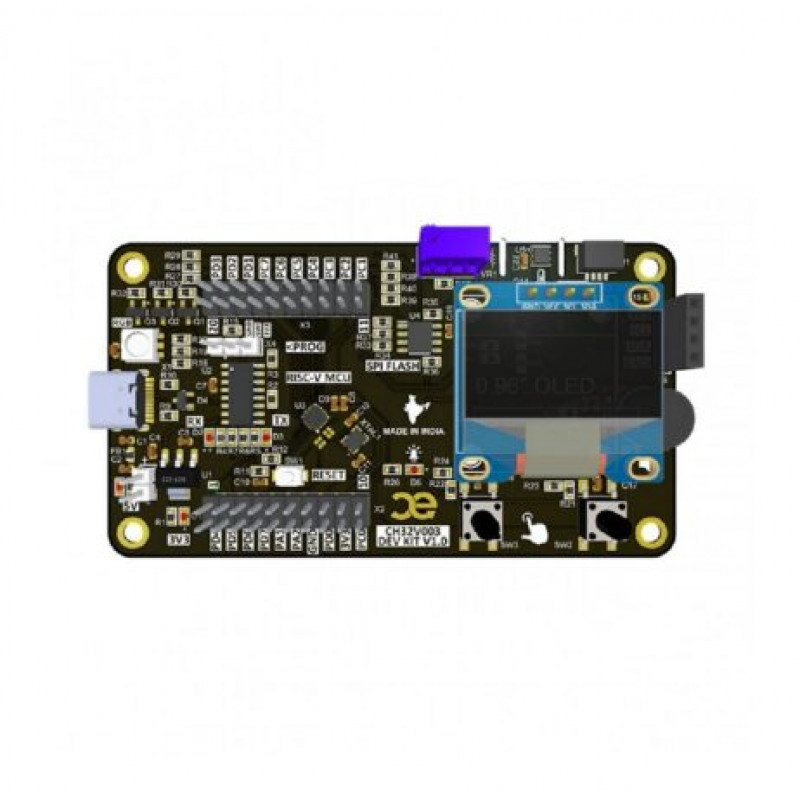

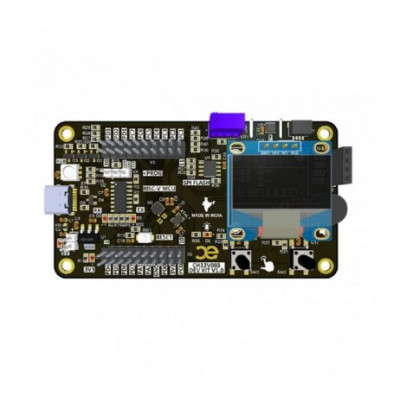

The CAPUF CH32V003 Development Kit is a comprehensive platform designed for developers and engineers to explore and utilize the capabilities of the CH32V003 microcontroller. Equipped with a 0.96-inch OLED display, this development kit offers an ideal environment for prototyping, testing, and developing embedded applications.

The CH32V003 is an ultra-low-cost (10-cent) 32-bit microcontroller based on the RISC-V 2A core. It has a maximum system main frequency of 48MHz and features 2KB of SRAM and 16KB of Flash memory.

The CH32V003 also has a wide range of peripheral interfaces, including a DMA controller, a 10-bit ADC, an op-amp comparator, multiple timers, and standard communication interfaces such as USART, I2C, and SPI. The CH32V003 can be used in a wide range of applications.

Useful link Products CAPUF

Applications:

1. Embedded Systems: Ideal for learning and experimenting with embedded system design.
2. IoT Prototyping: Suitable for developing Internet of Things (IoT) devices with display capabilities.
3. Educational Tool: Great for educational purposes, helping students and hobbyists learn microcontroller programming and interfacing.
4. Consumer Electronics: Development of small consumer electronics requiring display output.

Features:

1. USB-C Port for Power (5V) and Serial Interface
2. On Board 3.3V LDO
3. UART USB to UART
4. SPI 8Mbit SPI NOR Flash
5. PWM RGB LED
6. GPIO I/P Two Keys
7. ADC I/P Variable Resistor / Potentiometer
8. GPIO O/P One LED and one Buzzer
9. 3 Pin header for WCH-LinkE Programmer
10. 20 Pin MCU IOs Breakout on headers
11. LED Indications for 5V/3.3V/UART RX, TX
12. Option for connecting external 24Mhz Oscillator
13. MCU Reset Button is provided on the board

Package Includes:

1 x CH32V003 Dev Kit Development Board with OLED Display

1 x USB-A to USB-C Cable

1 x WCHLinkE Programmer

1 x Jumper wires
