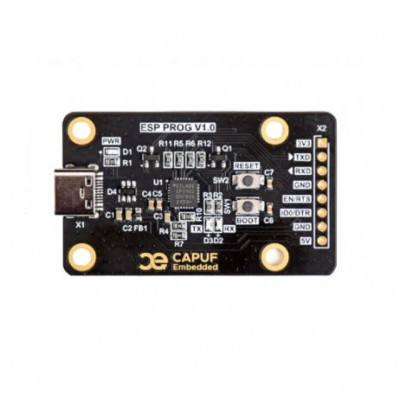

ESP32 Programmer V1 board. It can be used in multiple ways, like programming ESP8266, ESP32, or any other microcontroller that needs boot Pin and Reset Pin control along with UART RX and TX for flashing the MCU with a new program.
Or one can also use it as a USB to UART adapter.
Useful Link Products CAPUF
Features:
- Compact size: 50mmx30mm
- USB-C Type Interface: you can connect a USB in any direction. Use USB-A to USB-C Cable.
- LEDs for Power, RX, TX
- Switch for Reset and Boot
- Both 3.3V and 5V are available on the O/P connector
- All signals on a standard 2.54mm Pitch Header (Header will come along with the board (unsoldered))
Package Includes:
1 x CAPUF ESP32 PROGRAMMER V1 ESP Prog ESP32 & ESP8266 Programmer USB-C, USB to UART Adapter
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
CAPUF ESP32 PROGRAMMER V1 ESP Prog ESP32 & ESP8266 Programmer USB-C, USB to UART Adapter
- Product Code: EC-29823
- Availability: 7
-
Rs.512.00
- (Excluding 18% GST)
