In embedded systems, UART/serial ports are mainly used to view debug messages, to flash the program or to configure the device via command/response protocol.
The Industrial Grade Isolated USB to UART could be useful in various use cases.
High Voltage AC / DC Circuits
Isolated USB to UART Converter is mainly helpful for companies/engineers involved in building power electronics products or dealing with high-voltage DC or AC signals on their boards and want to connect them to a laptop or PC safely.
Connecting the board with HV AC or DC to a Laptop or PC USB port without isolation may damage the port or laptop. Non-isolated USB to UART converters also induce leakage currents in many situations and can significantly increase noise.
Low Power Embedded Designs which need 2.5V/1.8V
If you are working on Low-Power Designs like battery-powered asset trackers, wearables, or any battery-powered device, where UART is at a lower voltage level, you will need a USB-to-UART converter that supports those voltage levels.
Thats why CAPUF Embeddeds Isolated USB to UART Converter will help as a voltage section (1.8/2.5/3.3/5.0V) is provided.
Medical Electronics / Noise Sensitive circuits
As safety/induced noise is a great concern in many designs, an isolated USB to UART converter provides the best solution to connect your Embedded Board or product safely with a laptop or PC.
Useful Link Products CAPUF
Features:
- USB-C Port: To connect to a PC, one can use a USB-A to USB-C cable or even a USB-C to USB-C cable.
- USB to UART Bridge capable of up to 3Mbps
- Isolated Power, capable of up to 100mA. Short Circuit Protected.
- Isolated RX, TX, RTS, CTS, DTR, DSR, and all IOs are ESD-protected.
- Signal voltage level selection 1.8/2.5/3.3/5V via DIP Switch
- A 2-pin Jumper is provided to select if you want to power the target (Jumper ON) or if it will be self-powered.
- LED Indication for RX, TX, & Power
- A male 8-pin header (angled) comes in the package but is unsoldered.
- Compact Size: 30.5mm x 70.5mm
Package Includes:
1 x CAPUF ISOLATED USB to UART Converter
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

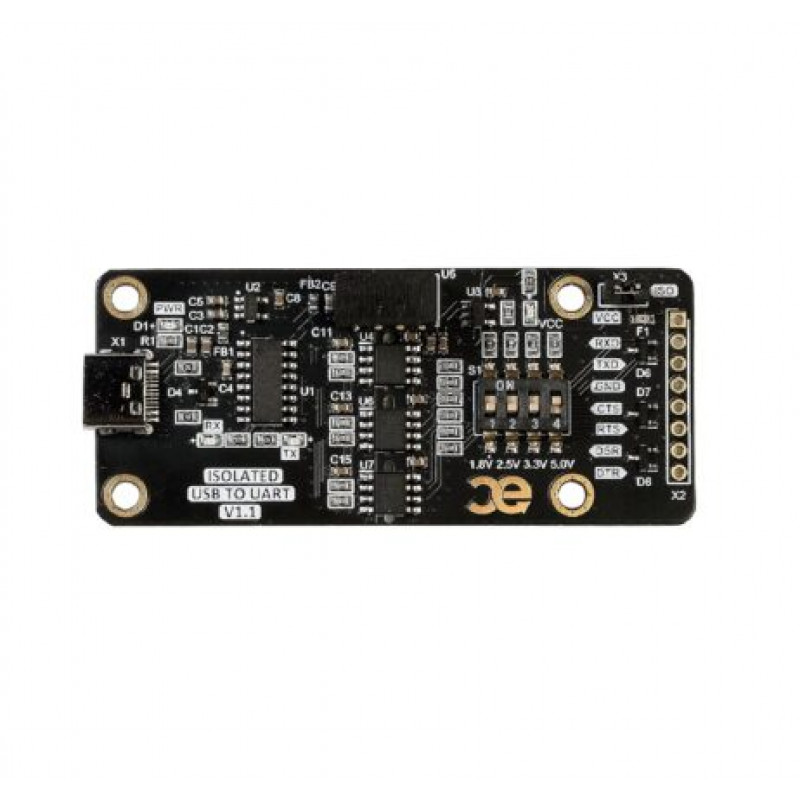

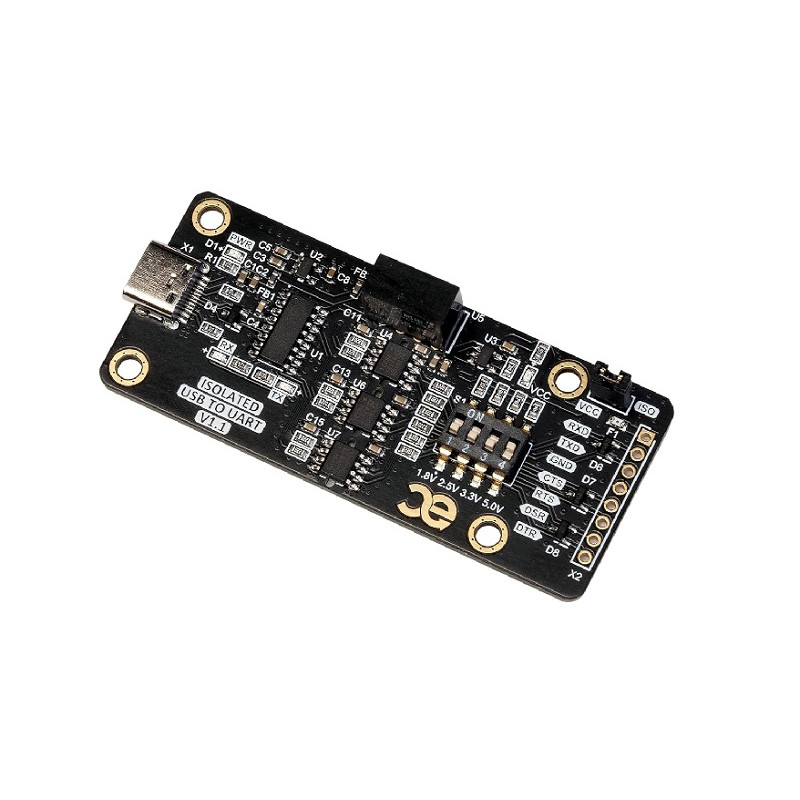

CAPUF ISOLATED USB to UART Converter
- Product Code: EC-29858
- Availability: Out Of Stock
-
Rs.1601.00
- (Excluding 18% GST)
