CD4013BE consists of two identical, independent data-type flip-flops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q\ outputs. These devices can be used for shift register applications, and , by connecting Q\ output to the data input, for counter and toggle applications. The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or rest line, respectively.

Applications:

1. Clock & Timing
2. Consumer Electronics

Features:

1. Set-reset capability
2. Static flip-flop operation retains state indefinitely with clock level either high or low
3. Medium-speed operation 16MHz typ. clock toggle rate at 10V
4. Standardized, symmetrical output characteristics
5. 100% tested for quiescent current at 20V
6. Maximum input current of 1A at 18V over full package-temperature range; 100nA at 18 V and 25C

Package Includes:

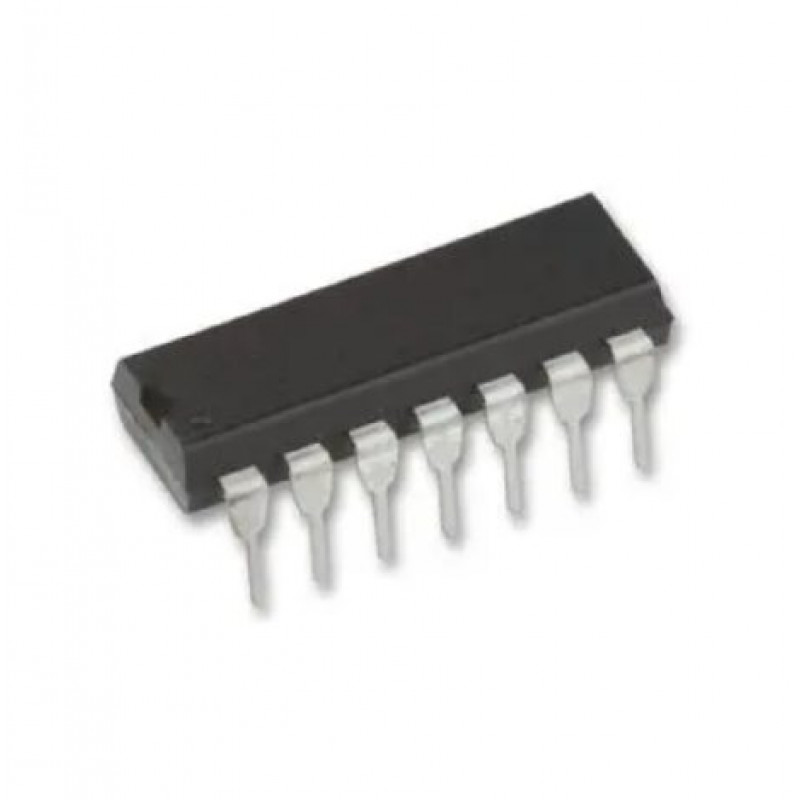

1 x CD4013BE TEXAS INSTRUMENTS Flip-Flop, Complementary Output, Positive Edge, CD4013, D, 45 ns, 12 MHz, 6.8 mA, DIP
