The CD4040BE is a CMOS 12-stage ripple-carry binary counter/divider, counter stages are flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the reset line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. All inputs and outputs are buffered.
Specifications:
- Logic Family / Base Number: CD4040
- Counter Type: Ripple Carry Binary / Divider
- Clock Frequency: 24MHz
- Count Maximum: 4095
- Logic Case Style: DIP
- No. of Pins: 16Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Logic IC Family: CD4000
- Logic IC Base Number: 4040
- Operating Temperature Min: -55C
- Operating Temperature Max: 125C
Package Includes:
1 x CD4040BE-TEXAS INSTRUMENTS-CD4040BE-Ripple Carry Binary / Divider, 24 MHz, 1 Gate, 1 Input, 3 V to 18 V, DIP-16
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

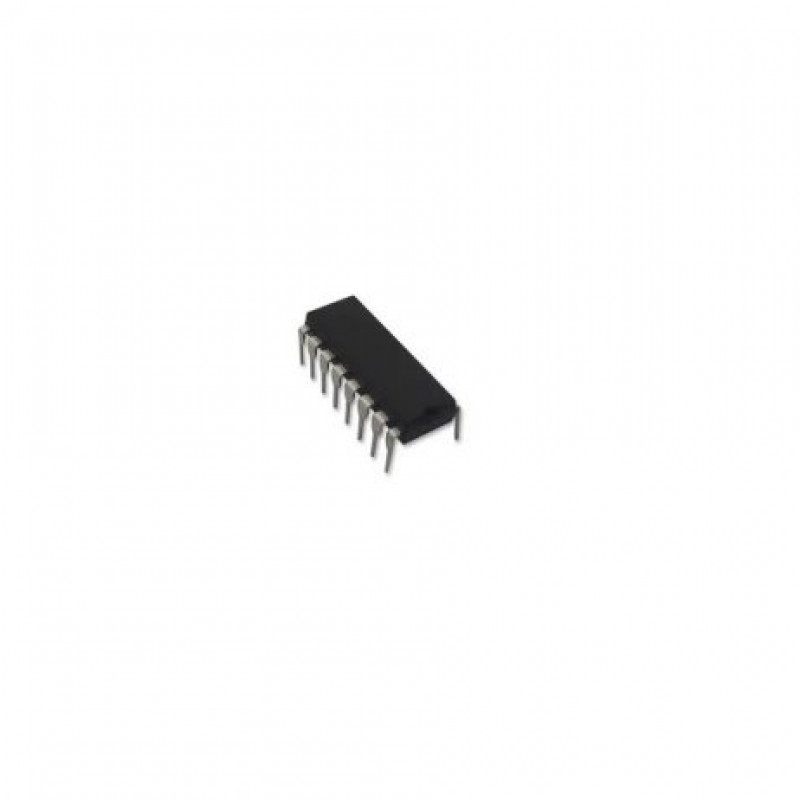

CD4040BE-TEXAS INSTRUMENTS-CD4040BE-Ripple Carry Binary / Divider, 24 MHz, 1 Gate, 1 Input, 3 V to 18 V, DIP-16
- Product Code: EC-26965
- Availability: 359
-
Rs.29.00
- (Excluding 18% GST)
