The CD4043BE is a CMOS quad NOR R/S Latch with 3-state outputs. Each latch has a separate Q output and individual SET and RESET inputs. The Q outputs are controlled by a common ENABLE input. A logic 1 or high on the ENABLE input connects the latch states to the Q outputs. A logic 0 or low on the ENABLE input disconnects the latch states from the Q outputs, resulting in an open circuit condition on the Q outputs. The open circuit feature allows common busing of the outputs.

Specifications:

Operating Temperature Min: -55C
No. of Pins: 16Pins
Product Range: CD4000 LOGIC
Operating Temperature Max: 125C
Supply Voltage Min: 3V
Supply Voltage Max: 18V
Logic Case Style: DIP
Output Current: 6.8mA
Logic IC Family: CD4000
Logic IC Base Number: 4043
Logic Family / Base Number: CD4043
Propagation Delay: 50ns

Package Includes:

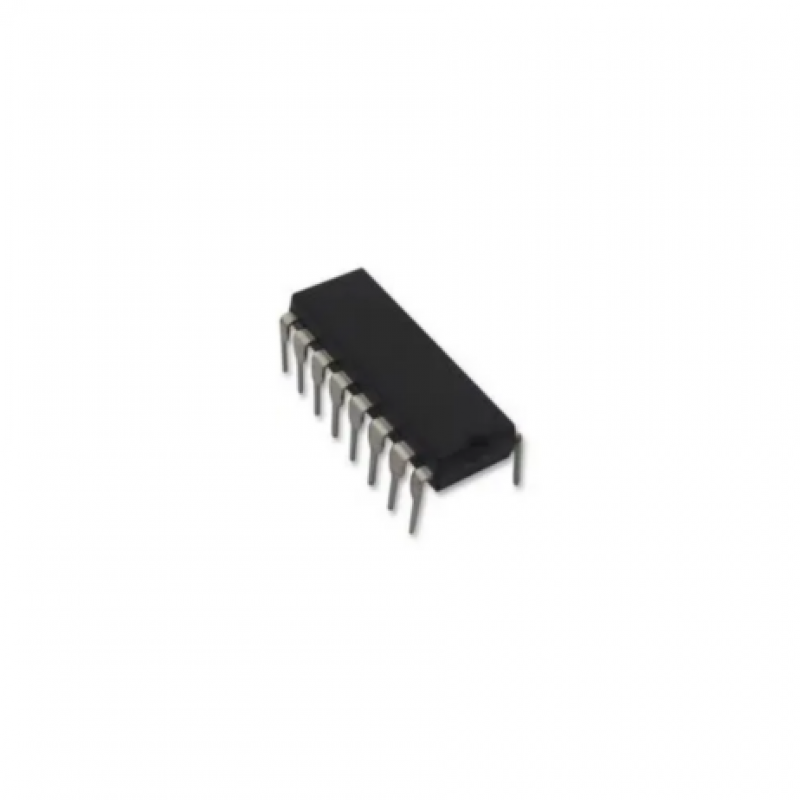

1 x CD4043BE-TEXAS INSTRUMENTS-CD4043BE-Latch, CD4043, SR, Tri State, 50 ns, 6.8 mA, DIP
