The CD4072BE is a CMOS dual 4-input OR Gate that provides the system designer with direct implementation of the positive-logic OR functions and supplements the existing family of CMOS gates. It meets all the requirements of JEDEC tentative standard no. 13B, Standard specifications for a description of B series CMOS devices.
Features:
- Medium speed operation tPLH, tPHL = 60ns (typical) at VDD=10V
- 100% Tested for quiescent current at 20V
- The maximum input current of 1A at 18V
- Standardized, symmetrical output characteristics
Package Includes:
1 x CD4072BE-TEXAS INSTRUMENTS-Logic IC, OR Gate, Dual, 4 Inputs, 14 Pins, DIP, 4072
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

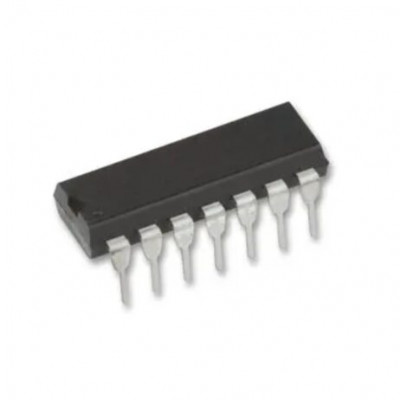

CD4072BE-TEXAS INSTRUMENTS-Logic IC, OR Gate, Dual, 4 Inputs, 14 Pins, DIP, 4072
- Product Code: EC-28473
- Availability: 437
-
Rs.49.00
- (Excluding 18% GST)
