The CD4511BE is a CMOS BCD to 7 segment LED latch decoder driver in 16 pin DIP package. It is constructed with CMOS logic and NPN bipolar transistor output devices on a single monolithic structure. This device combines low quiescent power dissipation and high noise immunity features of RCA CMOS with NPN bipolar output transistors capable of sourcing up to 25mA. This capability allows CD4511B to drive LEDs and other displays directly. Lamp test, blanking and latch enable or strobe inputs are provided to test display, shut off or intensity modulate and store BCD code. Several different signals may be multiplexed and displayed when external multiplexing circuitry is used.
Specifications:
- Logic Family / Base Number: CD4511
- Logic Type: BCD to 7 Segment Decoder / Driver / Latch
- No. of Outputs: 7Outputs
- Logic Case Style: DIP
- No. of Pins: 16Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Logic IC Family: CD4000
- Logic IC Base Number: 4511
- Operating Temperature Min: -55C
- Operating Temperature Max: 125C
- Product Range: CD4000 LOGIC
Package Includes:
1 x CD4511BE-TEXAS INSTRUMENTS-CD4511BE-BCD to 7 Segment Decoder / Driver / Latch, 1 Gate, 4 Input, 7 Output, 6.8 mA, 3 V to 18 V, DIP-16
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

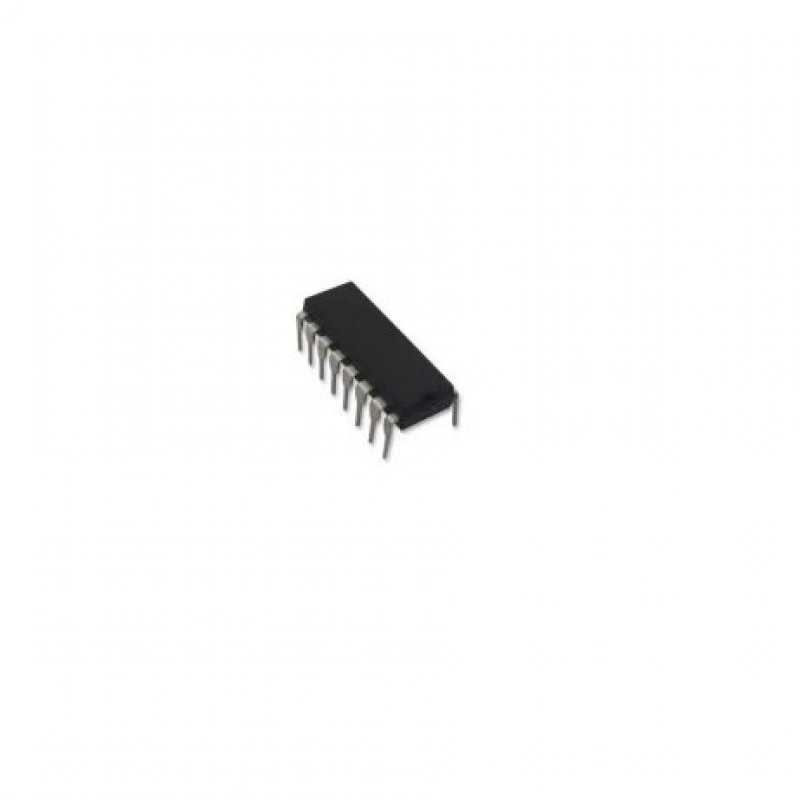

CD4511BE-TEXAS INSTRUMENTS-CD4511BE-BCD to 7 Segment Decoder / Driver / Latch, 1 Gate, 4 Input, 7 Output, 6.8 mA, 3 V to 18 V, DIP-16
- Product Code: EC-26963
- Availability: 651
-
Rs.28.00
- (Excluding 18% GST)
