1. Automotive grade AEC-Q200 qualified
2. Inductance value range from 1H to 470H, wide E-6 Series line-up allows for various usages
3. Tolerance range from 30% and 20%
4. 100KHz measuring frequency
5. DC resistance range from 5.4mohm to 600mohm
6. Rated current Isat range from 0.6A to 11.5A and Itemp range from 0.9A to 10.5A
7. Magnetic shield type wound inductor for power circuits, ferrite core
8. Operating temperature range from -55C to +150C
9. Dimension is 10mm x 10mm x 6mm (L x W x T)

Specifications:

1. Inductance: 68H
2. RMS Current (Irms): 2.4A
3. Inductor Construction: Shielded
4. Saturation Current (Isat): 1.45A
5. Product Range: CLF-NI-D
6. Power Inductor Case: 10.1mm x 10mm x 6mm
7. DC Resistance Max: 0.091ohm
8. Inductance Tolerance: 20%
9. Product Length: 10.1mm
10. Product Width: 10mm
11. Product Height: 6mm

Note:

1. For more technical details, go through the datasheet in the attachments
2. Image may vary from actual product in terms of brand and value printed

Package Includes:

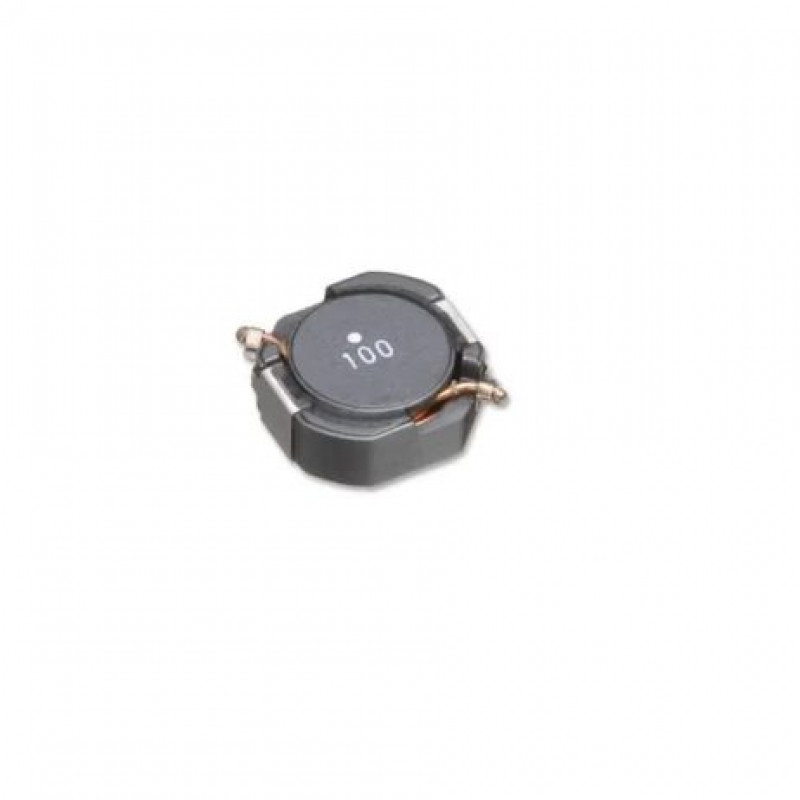

1 x CLF10060NIT-680M-D SMD Power Inductor
