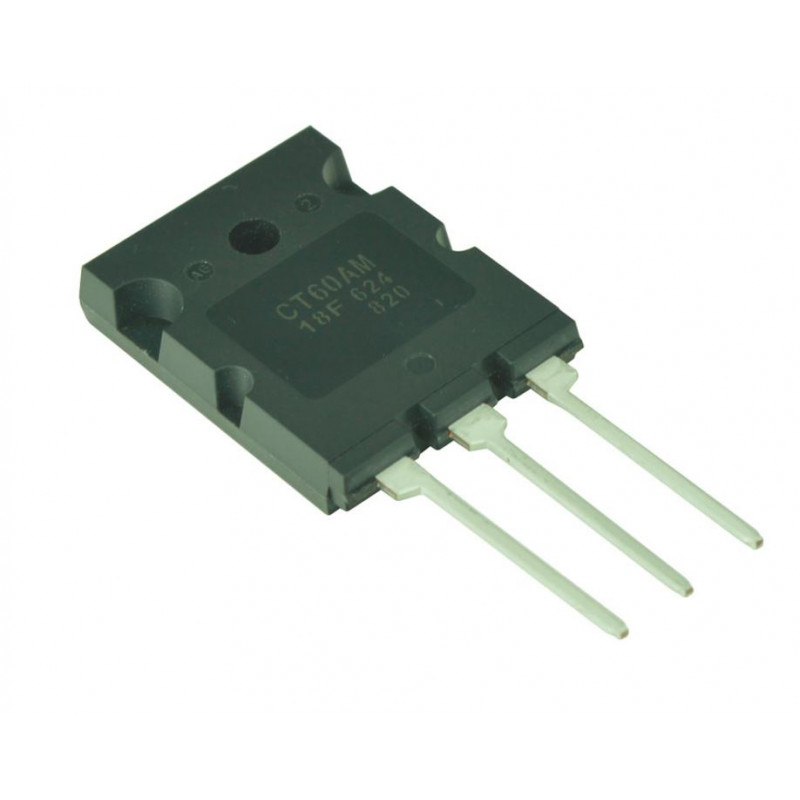

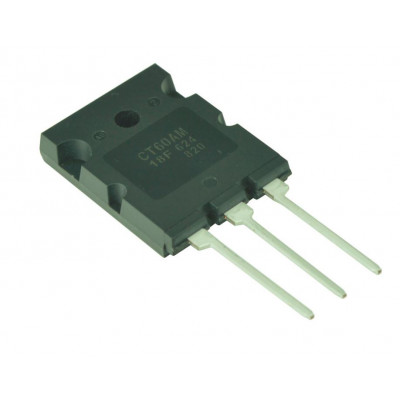

  • CT60AM-18F IGBT - 900V 60A High Voltage Current IGBT

The CT60AM-18F is an Insulated Gate Bipolar Transistor which is a simple drive and has VCES of 900V,  IC of 60A and Integrated fast-recovery diode. The CT60AM-18F has a low VCE Saturation Voltage and small tail loss.

Applications:-

• Microwave oven

Electromagnetic cooking devices

Rice-cookers

Voltage-resonant inverter circuit electric appliances

Specifications:-

Symbol Parameter Ratings Units
VCES Collector-Emitter Voltage 900 V
VGES Gate-Emitter Voltage ±25 V
VGEM  Peak Gate-Emitter Voltage ±30 V
IC Collector Current 60 A
ICM Collector Current (Pulse) 120 A
IE Emitter Current 40 A
PC Maximum Power Dissipation 180 W
Tj Junction Temperature –40 ~ +150 °C
Tstg Storage Temperature –40 ~ +150 °C


Related Document:-

CT60AM-18F IGBT Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 253.7 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

CT60AM-18F IGBT - 900V 60A High Voltage Current IGBT

  • Product Code: EC-1811
  • Availability: 490
  • Rs.215.00
  • (Excluding 18% GST)

  • Wholesale Pricing
    Select Quantity Discount Price per piece
    1 - 4 0% 215.0000
    5 - 9 1% Rs.213.00
    10 - 24 2% Rs.210.00
    25 - 49 5% Rs.205.00
    50+ 7% Rs.200.00
