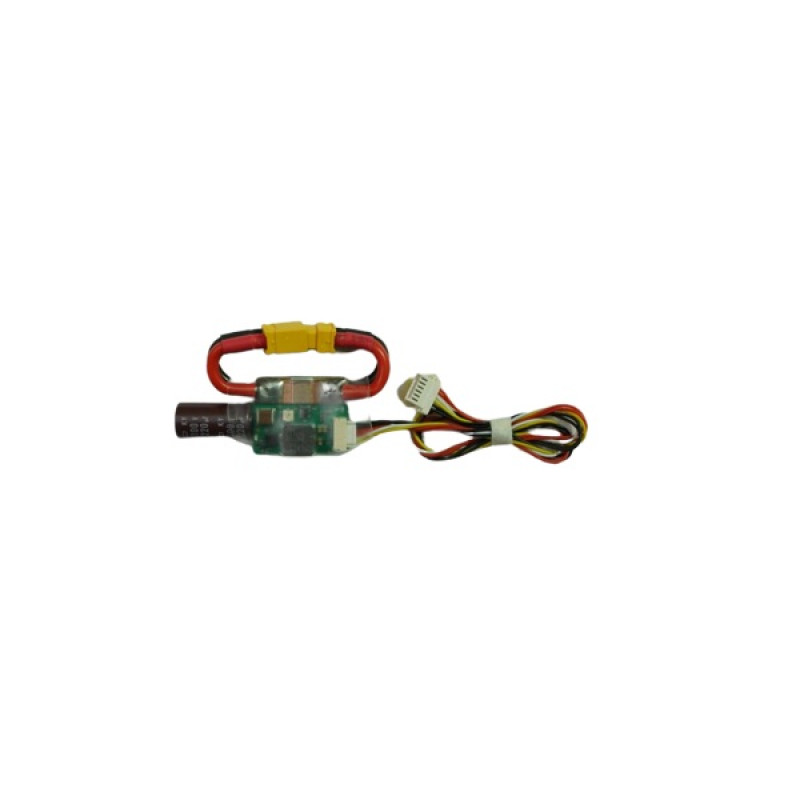

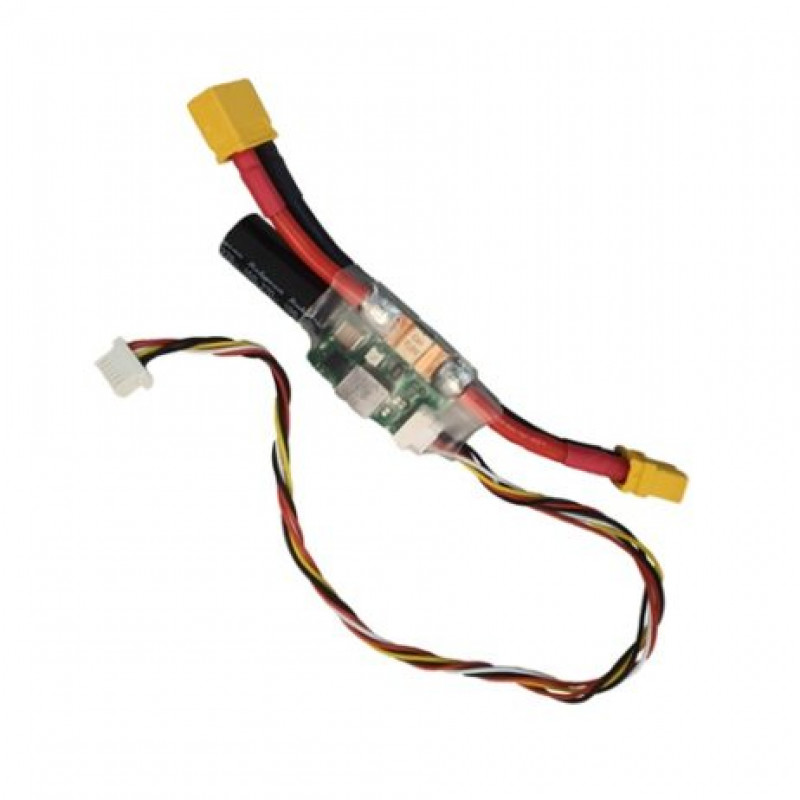

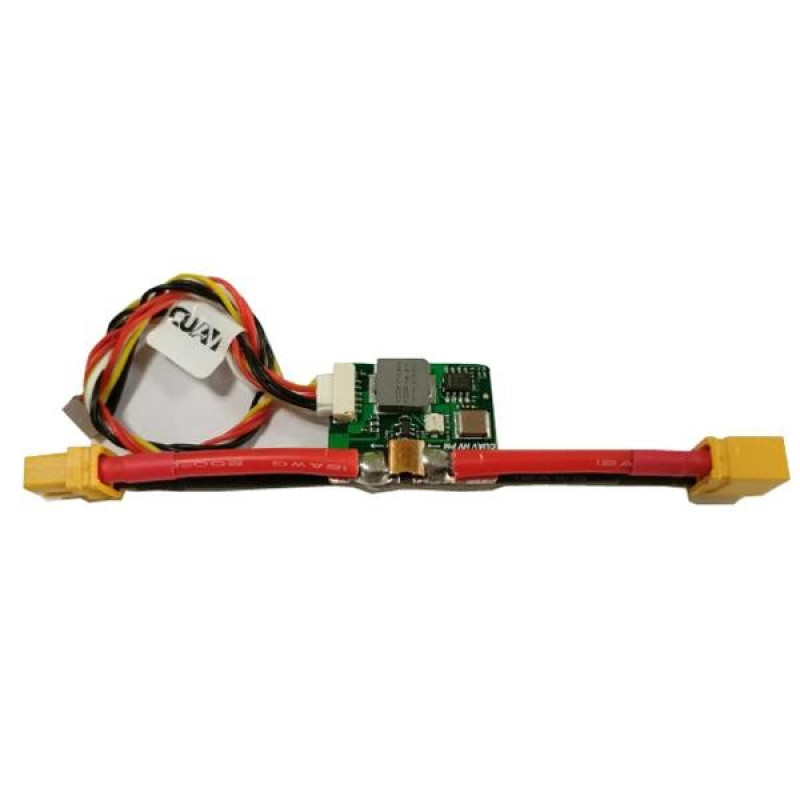

The CUAV HV_PM Power Module for V5+ is a high-quality power module designed for use with RC drones and FPV aircraft. With a wide input voltage range of 10-60V, it is compatible with a range of battery types and configurations.

This HV_PM Power Module features an XT60 plug, which is commonly used in RC drones and provides a secure and reliable connection. The module is compatible with the Pixhack and Pixhawk flight controllers, making it a versatile and convenient choice for pilots using these systems.

In addition to its reliable performance and compatibility with a range of systems, the CUAV HV_PM Power Module is also designed with safety in mind. It includes built-in protection mechanisms to prevent overcurrent, overvoltage, and overheating, helping to ensure safe and reliable operation.

The CUAV HV_PM Power Module for V5+ is a top-quality choice for RC drone and FPV pilots seeking a reliable and versatile power solution.

Ground station settings:
Use a USB or digital connection to the ground station
Initial Setup >> Optional Hardware >> Battery Detector
Select monitor: 4; Sensor 0; APM version 4; Fill in divider ratio 18; fill amperes per volt: 24
Manual calibration voltage:
Because the PM module is an analog sensor device, there may be some differences
You can calibrate the parameters for better accuracy
Pre-calibration preparation:
1: Multimeter or BB ring (calibration voltage use)
Calibration voltage steps:
1: Use battery power, and connect to the ground station
2: Use the multimeter or BB to measure the current battery voltage
3: Select the sensor version 0, in the measured battery voltage input current measured voltage filled into the box, click the mouse or click the TAB button, the ground station will automatically calculate a partial pressure ratio coefficient and automatically save the write Flight control
4: The calibration is complete, no current calibration is required.
Note: The battery is not included in the package.

Features:

  1. Provide 5V voltage output and maximum 5A current to fly control power supply
  2. Detection of the current-voltage output analog signal to the flight control
  3. Detection of the current system output analog signal to the flight control
  4. Because the PIX flight control ADC maximum detection voltage of 3.3, the maximum can only support 60A current detection.
  5. Its use is very simple, 6P signal line into the flight control POWER connector

Package Includes:

1 x CUAV HV_PM Power Module for V5+
