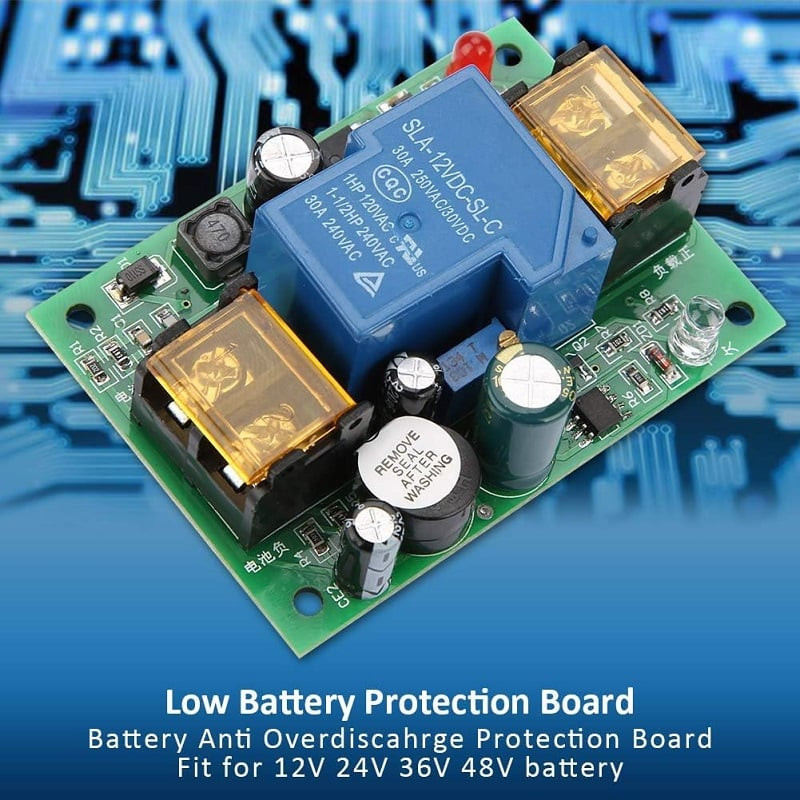

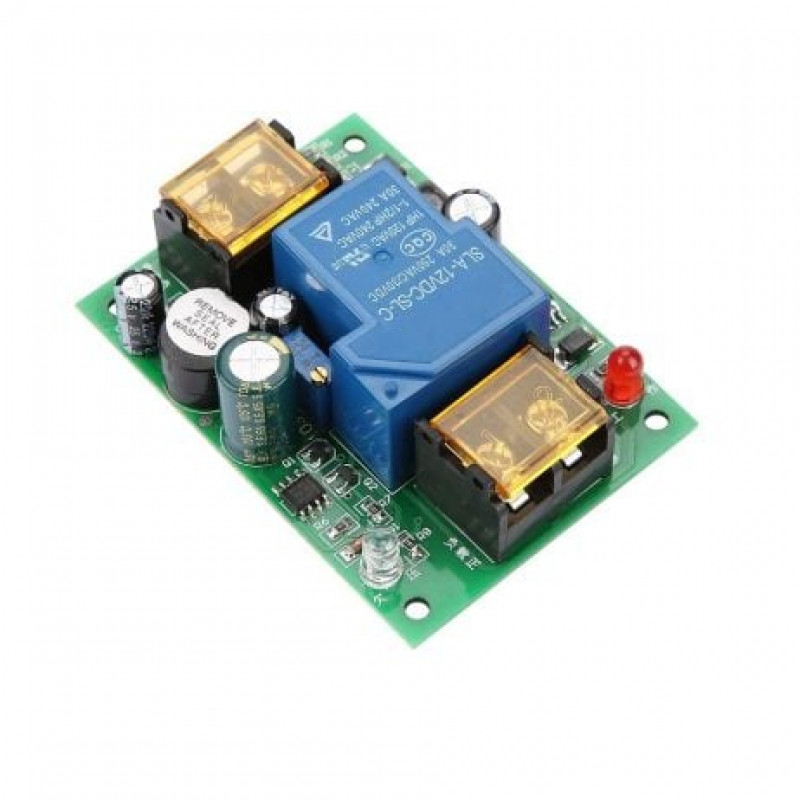

The DC 12V 24V 36V 48V Battery Anti Over Discharge Charging Controller Protection Board is a circuit protection module designed for managing batteries and preventing over-discharge.

Application Examples:

Example 1: If the load is a motor, the battery voltage will fluctuate when it is started. This protection board can work in this situation, with delay alarm of 5-10 seconds, enough to restore the battery voltage to a stable value.

Example 2: When the car just started, the lights will flash, also because the starting current is relatively large, battery voltage fluctuations, and this protection board can also work in this situation.

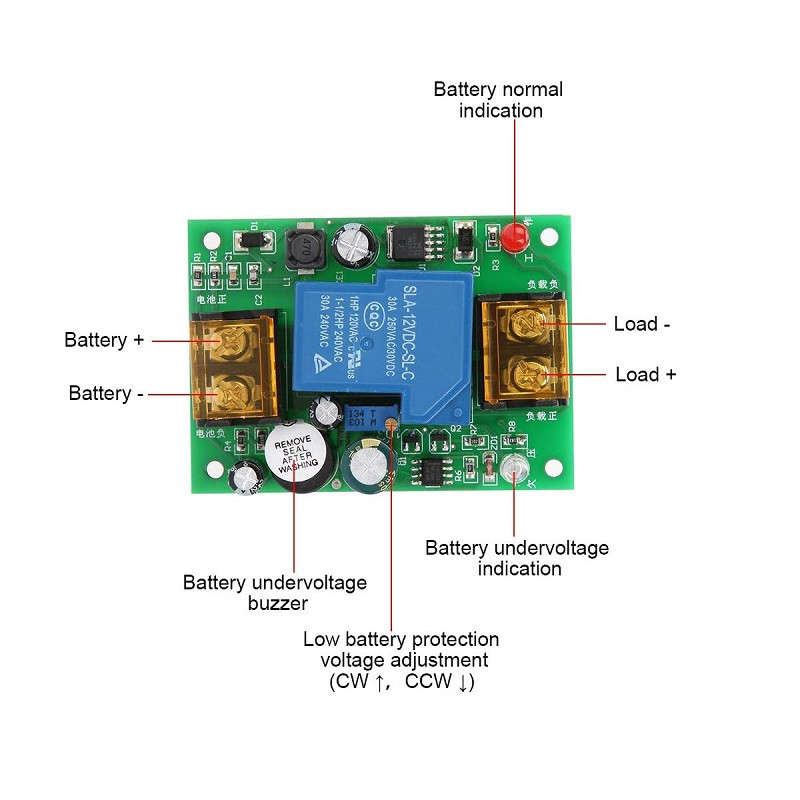

The alarm module is self-locking type: After the battery is in undervoltage status for 5-10 seconds, the module automatically disconnects the output. When the battery voltage rises above the set value, it will not reconnect the load. The module input must be manually disconnected before it can be restarted. You can easily control by connecting a normally closed switch between battery positive pole and module positive pole input end.

Note: The input has no reverse connection protection, please distinguish between positive and negative before wiring. The actual product may vary in slight variation with the image shown depending upon quantity availability.

Features:

1. Applicable for 12/24/36/48V battery, strong universality.
2. Static power consumption about 12mA (when the battery voltage is normal); Dynamic power consumption about 100mA (battery undervoltage).
3. This module will alarm and break the output when the battery is in undervoltage status for 5-20s.
4. Allowable current through this protection board is 30A at most.

Specifications:

1. Applicable Battery Voltage: 12/24/36/48V
2. Max Load Current: 30A, 250VAC/30VDC
3. Relay model: SLA-12VDC-SL-C
4. Product dimensions (mm): 70 x 50 x 20
5. Product weight (g): 57

Package Includes:

1 x DC 12V 24V 36V 48V Battery Anti Over Discharge Charging Controller Protection Board
