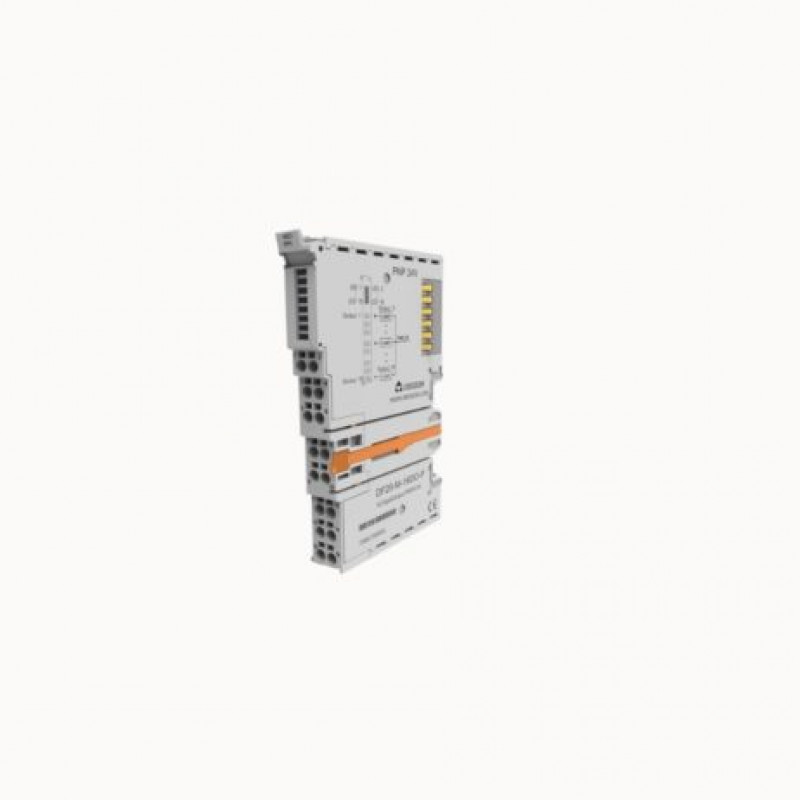

The Degson DF20-M-16DO-P is a 24VDC PNP-type digital output IO module designed for industrial automation applications. It features 16 channels and a maximum output current of 0.5A per channel, making it ideal for controlling various types of devices, such as solenoids, relays, and indicators.
The module supports both sink and source output types, allowing it to interface with a wide range of devices. It is constructed with high-quality materials, ensuring reliable and durable performance in harsh industrial environments. With its compact and modular design, the Degson DF20-M-16DO-P is easy to install and integrate into existing control systems, making it a cost-effective solution for industrial automation applications.
Features:
- Independent of fieldbus application and connection type
- Protection class IP20.
- LED display working status.
- Electronic circuit and field layer are isolated by optocoupler.
- 16 channels digital output,24VDC.
- Max current0.5A.
- PNP type.
Specifications:
- Channels: 16
- Output type: PNP
- Max output current: 0.5A per channel
- Max total output current: 8A
- Input voltage: 24VDC
- Output voltage: Same as input voltage
- Output type: Sink or source selectable by DIP switch
- Isolation voltage: 500VDC
- Response time: 0.1ms
- Operating temperature range: -20C to 70C
- Storage temperature range: -40C to 85C
- Dimensions (W x H x D): 110mm x 78mm x 22.5mm
- Weight: 125g
Package Includes:
1 x Degson 16 Channels 24VDC PNP type 0.5A Digital Output IO Module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Degson 16 Channels 24VDC PNP type 0.5A Digital Output IO Module
- Product Code: EC-21712
- Availability: Out Of Stock
-
Rs.5067.00
- (Excluding 18% GST)
