The Degson 16 channels Digital Input 24VDC PNP type IO Module is a high-quality industrial-grade module designed for monitoring and controlling digital signals in a wide range of applications. This module features 16 digital inputs, each of which is designed to accept 24VDC PNP signals.
The modules compact and modular design makes it easy to install and use, while its high-quality construction ensures reliable and accurate performance. With its high-speed response time and low power consumption, the Degson 16 channels Digital Input 24VDC PNP type IO Module is an excellent choice for any application that requires high-performance digital signal monitoring and control.
Features:
- Independent of fieldbus application and connection type
- Protection class IP20.
- LED display working status.
- Electronic circuit and field layer are isolated by optocoupler.
- 16 channels digital input,24VDC.
- PNP type.
Specifications:
- Input type: Digital input
- Number of inputs: 16 channels
- Input voltage: 24VDC
- Input current: 7mA per channel
- Input type: PNP
- Isolation voltage: 500VDC
- Response time: 5ms
- LED indicators: Yes, for each channel
- Operating temperature: -20C to 60C
- Storage temperature: -40C to 85C
- Humidity: 5% to 95%
- Mounting: DIN rail or panel mount
- Dimensions: 72mm x 120mm x 60mm
- Weight: 220g
Package Includes:
1 x Degson 16 channels Digital Input 24VDC PNP type IO Module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

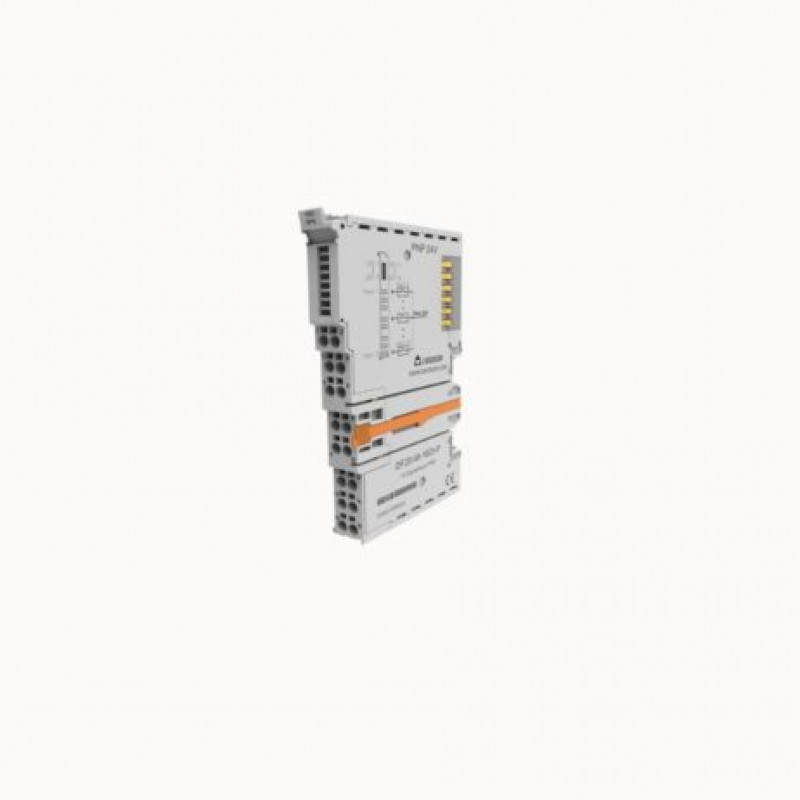

Degson 16 channels Digital Input 24VDC PNP type IO Module
- Product Code: EC-21713
- Availability: Out Of Stock
-
Rs.4296.00
- (Excluding 18% GST)
