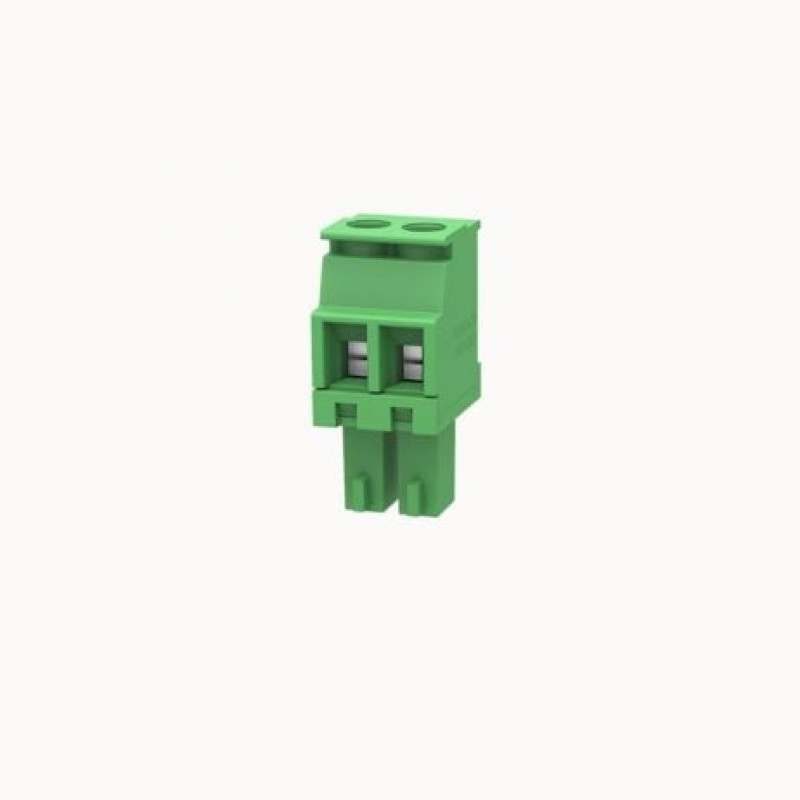

The 15EDGKA-3.81-02 is a pluggable terminal block used for connecting wires in electrical circuits. The terminal block has a rated current of 7A and a rated voltage of 250V (II/2). It has a pitch of 3.81mm, which refers to the distance between the center of two adjacent wire connection points.

The terminal block is colored green and has a contact surface that is tin-plated, which provides good conductivity and corrosion resistance. The pluggable aspect of the terminal block means that it can be easily disconnected from the circuit, making it convenient for maintenance and repairs.

Features:

• Compact design: The terminal block has a small size and a pitch of 3.81mm, making it suitable for use in space-constrained applications.
• Pluggable connection: The terminal block has a pluggable design, which makes it easy to connect and disconnect wires from the circuit.
• High current and voltage rating: With a rated current of 7A and a rated voltage of 250V, the terminal block can handle a wide range of electrical applications.
• Tin-plated contact surface: The contact surface of the terminal block is tin-plated, which ensures good conductivity and resistance to corrosion.
• Wide temperature range: The terminal block is designed to operate in temperatures ranging from -40 to +105, making it suitable for use in harsh environments.

Specifications:

1. Type: Pluggable terminal block
2. Rated current: 7A
3. Rated voltage: 250V (II/2)
4. Wire size range: 28-16 AWG
5. Pitch: 3.81mm
6. Number of positions: 2
7. Contact surface material: Tin-plated
8. Contact resistance: 20m
9. Insulation resistance: 100M
10. Temperature range: -40 to +105
11. Color: Green
12. Mounting type: Through-hole

Package Includes:

1 x Degson 2 Pin 3.81 mm Pitch Pluggable Terminal Block
