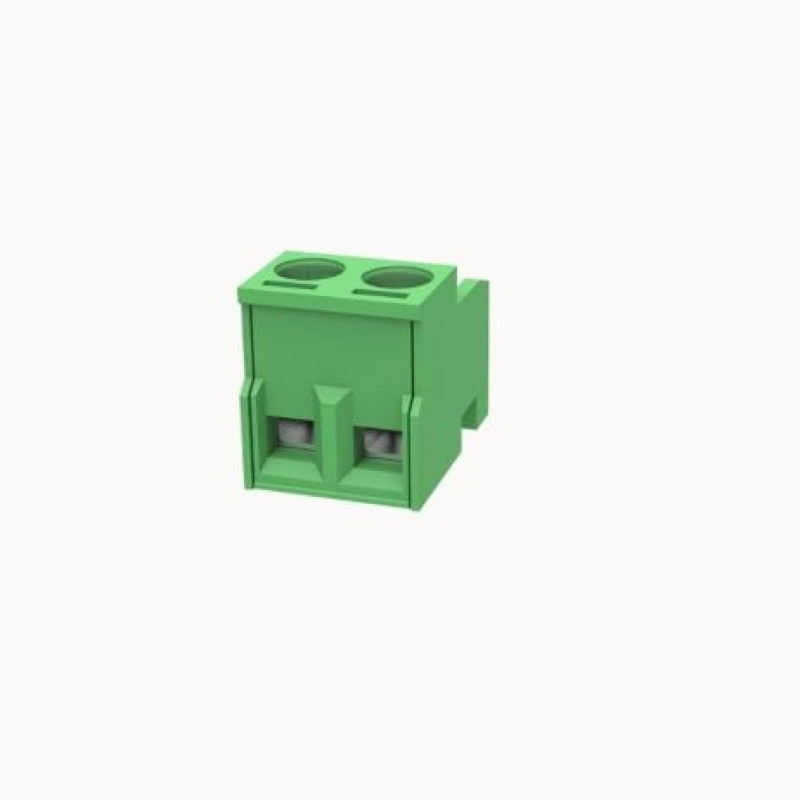

The Degson DG332W-5.0-02P is a pluggable terminal block used for connecting wires to a printed circuit board or another device. It is designed for a rated current of 12A and a rated voltage of 250V.
The terminal block features a pitch of 5.0mm, which refers to the distance between the centers of adjacent pins. It has a screw connector with wire protection, which means that wires are secured by tightening the screws on the connector to make a secure electrical connection. The wire protection feature ensures that the wires do not come loose or pull out of the connector.
The cross-section of the wire that can be connected to the terminal block is 1.5mm, which refers to the area of the wires cross-section. The connector has a green color, which can be used to identify the specific circuit or function that it is connected to.
Specifications and Features:
- Number of Pins: 2
- Pitch: 5.0mm
- Rated voltage: 250V
- Rated current: 12A
- Wire gauge: 26-16 AWG
- Insulation material: PA66, UL94V-0
- Contact plating: Tin
- Operating temperature: -40C to +105C (-40F to +221F)
- Wire connection method: Screw connection with wire protection
- Color: Green
Package Includes:
1 x Degson 2 Pin 5.0mm Pitch Pluggable Terminal Block
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Degson 2 Pin 5.0mm Pitch Pluggable Terminal Block
- Product Code: EC-21681
- Availability: Out Of Stock
-
Rs.10.00
- (Excluding 18% GST)
