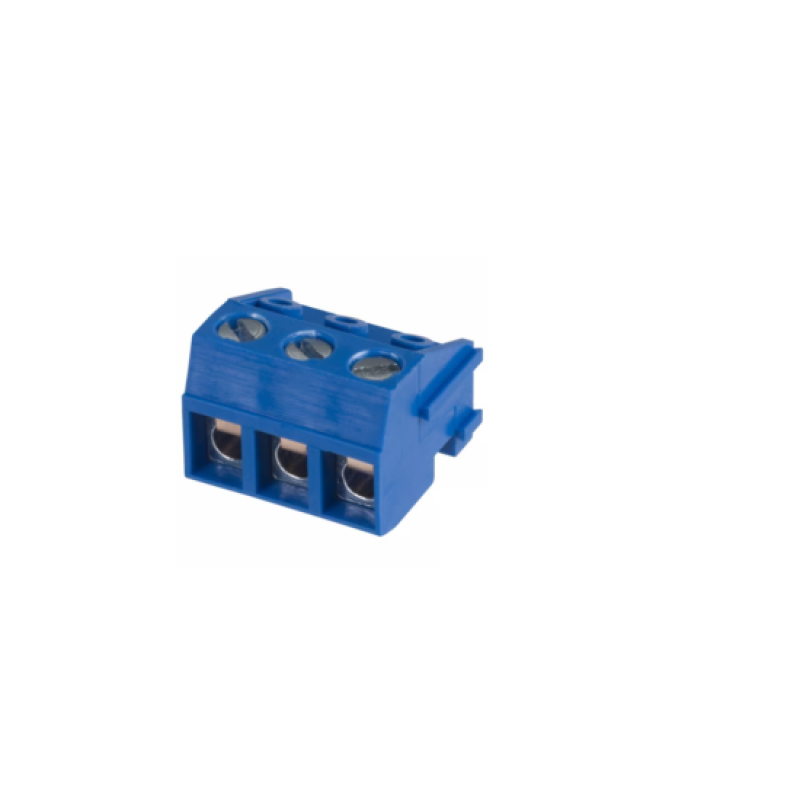

Degson 3 Pin 5.0 mm Pitch Pluggable Terminal Block is an electrical component that allows wires to be easily connected and disconnected. It consists of a plastic housing with three metal connectors, which are used to attach the wires. The 5.0 mm pitch refers to the distance between the connectors, which is the standard spacing used for many terminal blocks.
The pluggable feature of this terminal block means that it can be easily connected and disconnected from other components, without the need for any tools. This makes it a convenient solution for applications that require frequent maintenance or repairs.
The 3-pin configuration means that it can accommodate up to three wires, which makes it suitable for a range of applications, including industrial automation, control systems, and power distribution.
Specifications and Features:
- Number of pins: 3
- Pitch: 5.0 mm
- Current rating: 12A
- Voltage rating: 250V
- Wire range: 24-12 AWG
- Housing material: PA66 (UL94V-0)
- Contact material: Phosphor bronze, tin-plated
- Operating temperature: -40C to +105C
Package Includes:
1 x Degson 3 Pin 5.0 mm Pitch Pluggable Terminal Block
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Degson 3 Pin 5.0 mm Pitch Pluggable Terminal Block
- Product Code: EC-21705
- Availability: Out Of Stock
-
Rs.11.00
- (Excluding 18% GST)
