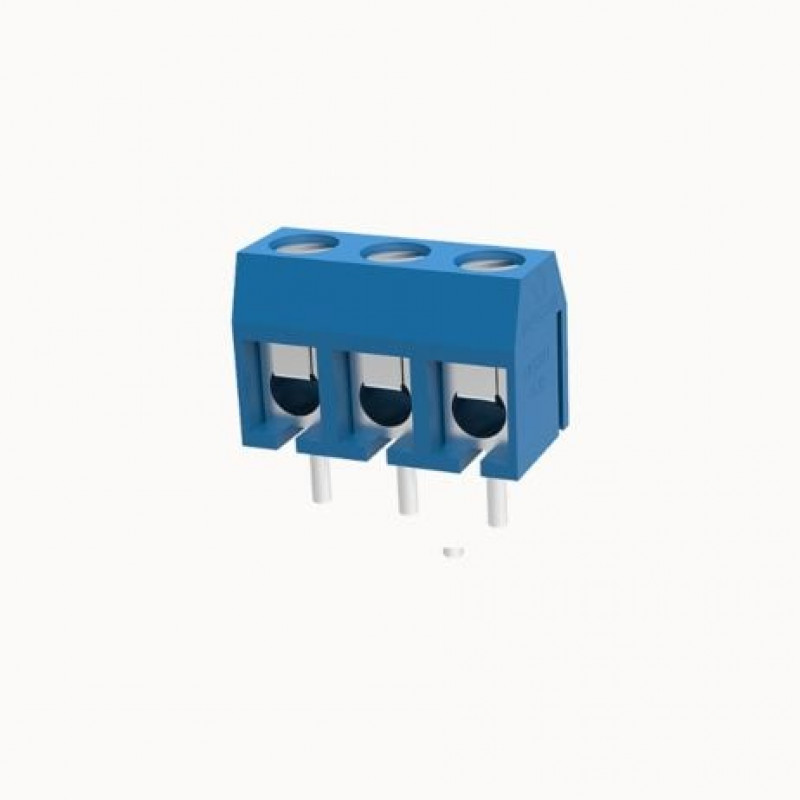

The DG301-5.0-03P is a PCB terminal block manufactured by Degson and designed for use in electrical circuits. It features a screw connector with wire protection, allowing for secure and reliable connections. The terminal block has a pitch of 5.0mm, which is the distance between adjacent terminals. This pitch size is suitable for a variety of applications.

The terminal block is rated for a maximum current of 17.5A and a maximum voltage of 250V. The voltage rating is classified as III/2, indicating that it is suitable for use in circuits with overvoltage category III and pollution degree 2. This makes it ideal for use in industrial environments where the electrical equipment may be subjected to high levels of electrical noise or contamination.

The cross-sectional area of the wire that can be accommodated by this terminal block is 1.5mm. The contact surface is made of tin, which provides good conductivity and resistance to corrosion. The terminal block is colored blue for easy identification.

Features:

1. Screw connector with wire protection: The terminal block features a screw connector that provides a secure and reliable connection for wires. The wire protection helps prevent damage to the wire during installation and use.
2. Pitch size: The pitch size of the terminal block is 5.0mm, which is suitable for a wide range of applications.
3. Current and voltage ratings: The terminal block is rated for a maximum current of 17.5A and a maximum voltage of 250V. This makes it suitable for use in a variety of electrical circuits.
4. Overvoltage category and pollution degree: The terminal block is classified as III/2, indicating that it is suitable for use in circuits with overvoltage category III and pollution degree 2. This makes it ideal for use in industrial environments where the electrical equipment may be subjected to high levels of electrical noise or contamination.
5. Wire size compatibility: The terminal block is designed to accommodate wires with a cross-sectional area of 1.5mm.
6. Contact surface: The contact surface of the terminal block is made of tin, which provides good conductivity and resistance to corrosion.
7. Color: The terminal block is colored blue for easy identification.

Specifications:

1. Model number: DG301-5.0-03P
2. Connector method: Screw connector with wire protection
3. Pitch size: 5.0mm
4. Rated voltage: 250V (III/2)
5. Rated current: 17.5A
6. Wire size compatibility: 1.5mm
7. Contact surface material: Tin
8. Color: Blue
9. Number of positions: 3
10. Mounting type: Through-hole
11. Operating temperature range: -40C to +105C

Package Includes:

1 x Degson 3 Pin 5 mm PCB Terminal Block
