The 15EDGKA-3.5-04P is a pluggable terminal block used for connecting wires in electrical and electronic applications. It has a rated current of 7A and a rated voltage of 250V (II/2), making it suitable for low-power applications.
The pitch of the terminal block is 3.5mm, which refers to the distance between the center of one pin to the center of the adjacent pin. The block is colored green, which is a common color for ground connections.
The contact surface of the block is made of tin, which is a commonly used material for electrical conductivity due to its high conductivity and low resistivity. This pluggable terminal block can be easily plugged into a mating connector to establish a secure connection between the wires.
Features:
- Rated Current: The terminal block has a rated current of 7A, which indicates its ability to handle the flow of electrical current without overheating or getting damaged.
- Rated Voltage: The terminal block has a rated voltage of 250V (II/2), which is the maximum voltage it can safely handle.
- Pitch: The pitch of the terminal block is 3.5mm, which refers to the distance between the center of one pin to the center of the adjacent pin.
- Color: The terminal block is colored green, which is a common color for ground connections.
- Contact Surface: The contact surface of the block is made of tin, which is a commonly used material for electrical conductivity due to its high conductivity and low resistivity.
- Pluggable Design: The terminal block has a pluggable design, which means it can be easily plugged into a mating connector to establish a secure connection between the wires.
- Compact Size: The terminal block has a compact size, which makes it suitable for use in applications with limited space.
Specifications:
- Pitch: 3.5mm
- Number of Positions: 4
- Rated Voltage (II/2): 250V
- Rated Current: 7A
- Wire Range: 22-20 AWG
- Contact Resistance: 20m
- Insulation Resistance: 100M
- Withstanding Voltage: AC1500V/1Min
- Operating Temperature: -40C to +105C
- Material Housing: PA66, UL94V-0
- Plating Contact: Tin
- Color: Green
- Pin Length: 4.0mm
- Pin Thickness: 0.8mm
- Mounting Type: Through-hole mounting
- Dimensions: 19.0mm x 9.2mm x 11.0mm
Package Includes:
1 x Degson 4 Pin 3.5mm Pitch Pluggable Terminal Block Plug
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

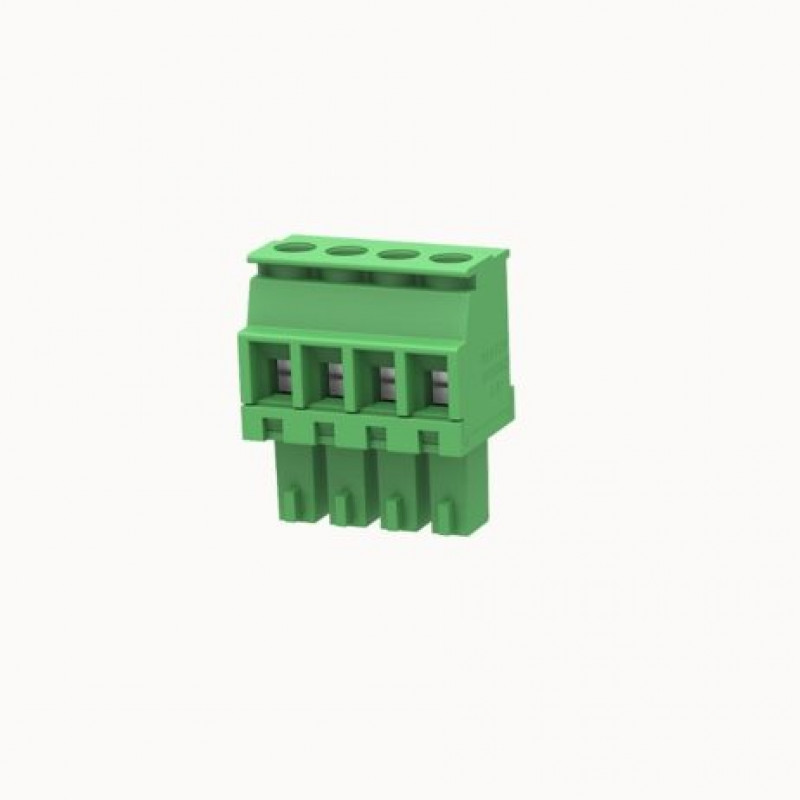

Degson 4 Pin 3.5mm Pitch Pluggable Terminal Block Plug
- Product Code: EC-21559
- Availability: Out Of Stock
-
Rs.30.00
- (Excluding 18% GST)
