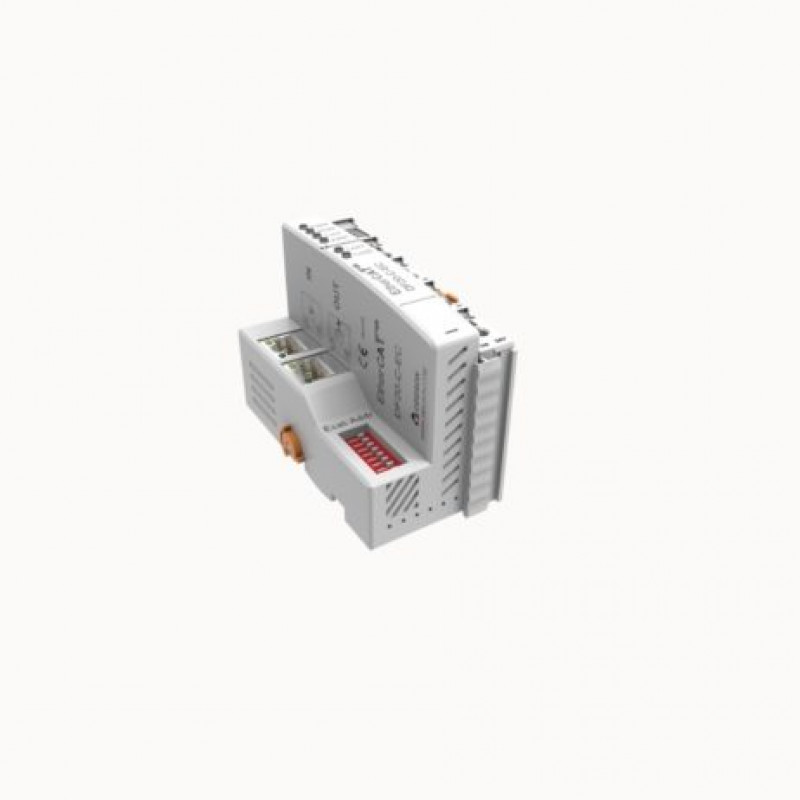

The Degson DF20-C-EC is an EtherCAT IO communication protocol coupler designed for industrial automation applications. It allows for seamless communication between different EtherCAT IO devices, providing a reliable and efficient communication solution.

The coupler supports various EtherCAT communication modes, including cyclic, acyclic, and mailbox modes, and features a high-speed communication rate of up to 100 Mbps. It also includes built-in diagnostic functions that enable the detection and diagnosis of communication errors, making it a valuable tool for troubleshooting and maintenance. With its compact design and robust construction, the Degson DF20-C-EC-30050000268 is a reliable and versatile communication coupler for any industrial automation system.

Features:

1. EtherCAT IO communication protocol.
2. DIP switch is used to set the node address.
3. Protection class IP20.
4. Integrated power function.
5. LED display working status
6. 10/100Mbps.
7. Dual RJ45 ports.
8. The only product with American UL and German VDE certification, the product has the best performance

Specifications:

1. Model Number: DF20-C-EC
2. Communication Protocol: EtherCAT IO
3. Communication Rate: Up to 100 Mbps
4. Communication Modes: Cyclic, Acyclic, Mailbox
5. Network Topology: Line, Tree, Star, Daisy Chain
6. Power Supply: 24VDC
7. Power Consumption: 60mA
8. Input/Output: 16 Inputs/16 Outputs
9. Input Voltage Range: 24VDC 20%
10. Input Current: 7mA
11. Output Voltage Range: 24VDC 20%
12. Output Current: 0.5A per channel, 4A per module
13. Isolation Voltage: 500VAC
14. Operating Temperature Range: -25C to +60C
15. Storage Temperature Range: -40C to +85C
16. Dimensions: 120mm x 60mm x 32.5mm
17. Weight: 130g

Package Includes:

1 x Degson Ether CAT IO Communication Protocol Coupler
