This lovely little display breakout is the best way to add a small, colorful and bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 1.44 display has 128128 color pixels. Unlike the low cost Nokia 6110 and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display full 16-bit color using our library code.

This 1.44 inch TFT LCD Color Screen Module SPI Interface has 128 x 128 resolution and 262 colors, it uses SPI interface to communicate with the controller such as Arduino, it is the best upgrading of the Nokia5110.

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

Note: This LCD Screen is not Touch-Screen


Features :

  1. TFT color screen, the effect is far better than other small CSTN screen
  2. Fully compatible and alternative 5110 interface
  3. Onboard LDO, support 5V/3.3V input voltage

Package Includes :

1 x1.44 inch TFT LCD Color Screen Module


Additional information

Driver IC

ST7735

Input Voltage (V)

3.3 to 5

PCB Size ( L x W ) mm

44 x 30

Display Size (inch)

1.44

Interface Type

SPI

Resolution

128 x 128 Px

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

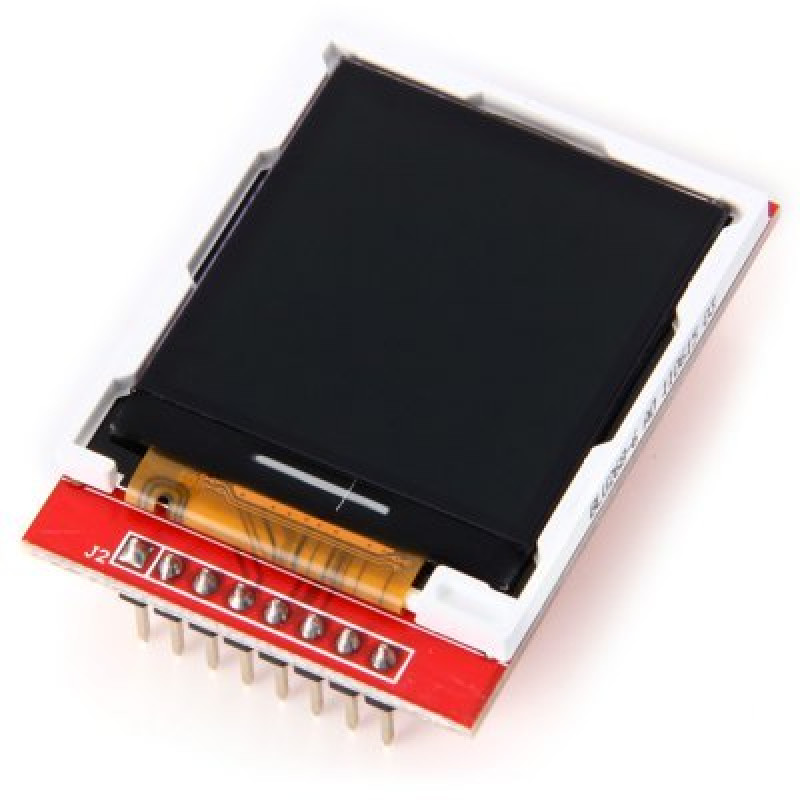

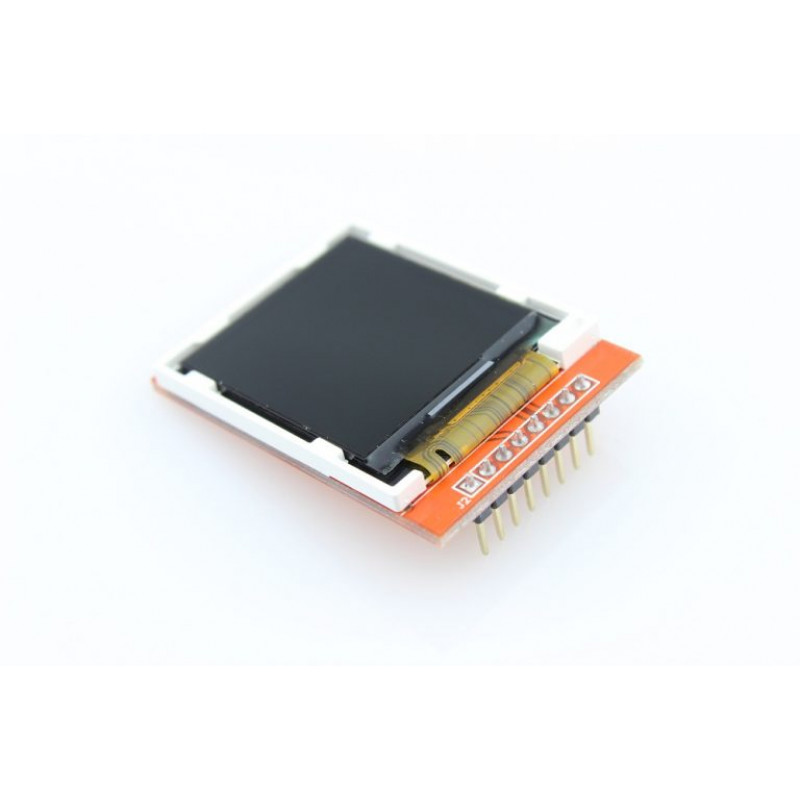

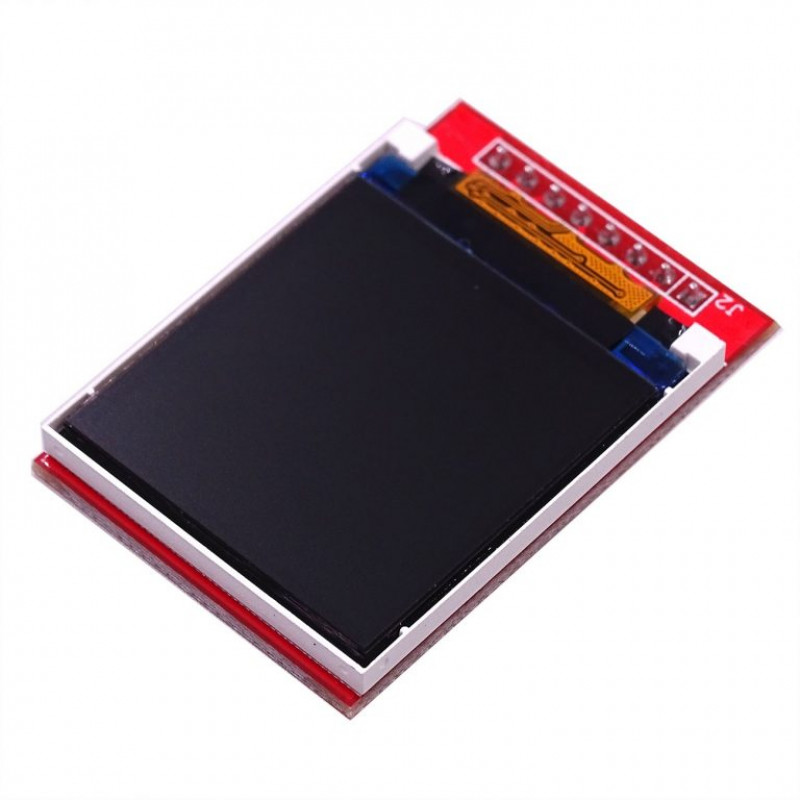

1.44 inch TFT LCD Color Screen Module SPI Interface
