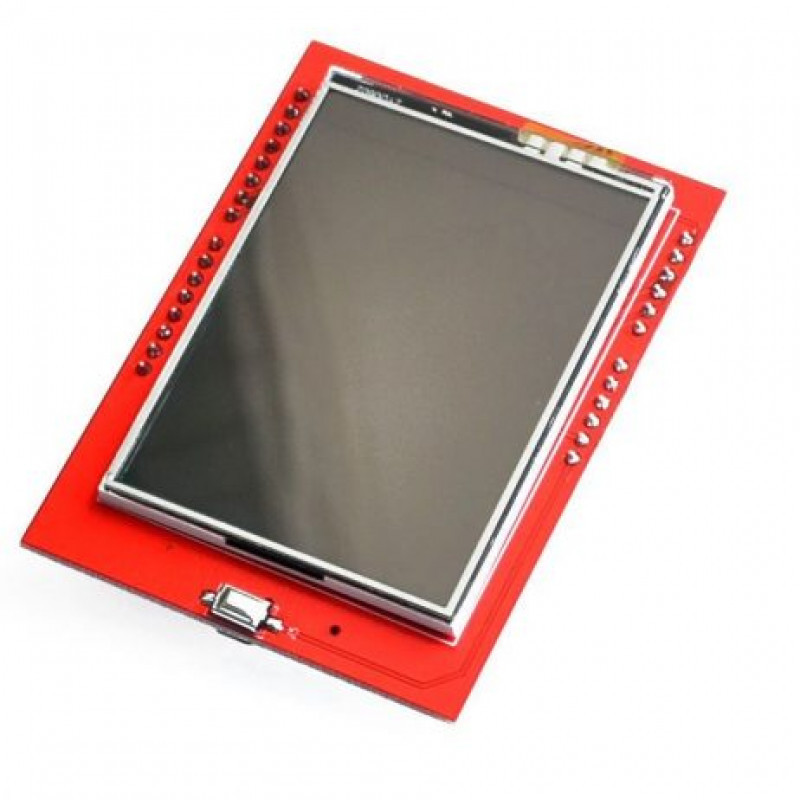

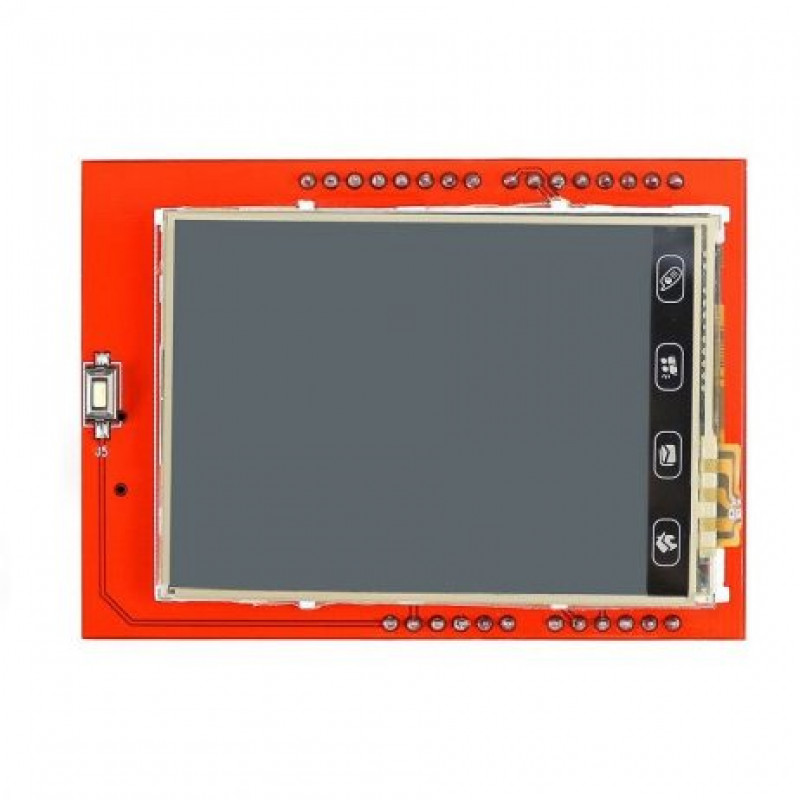

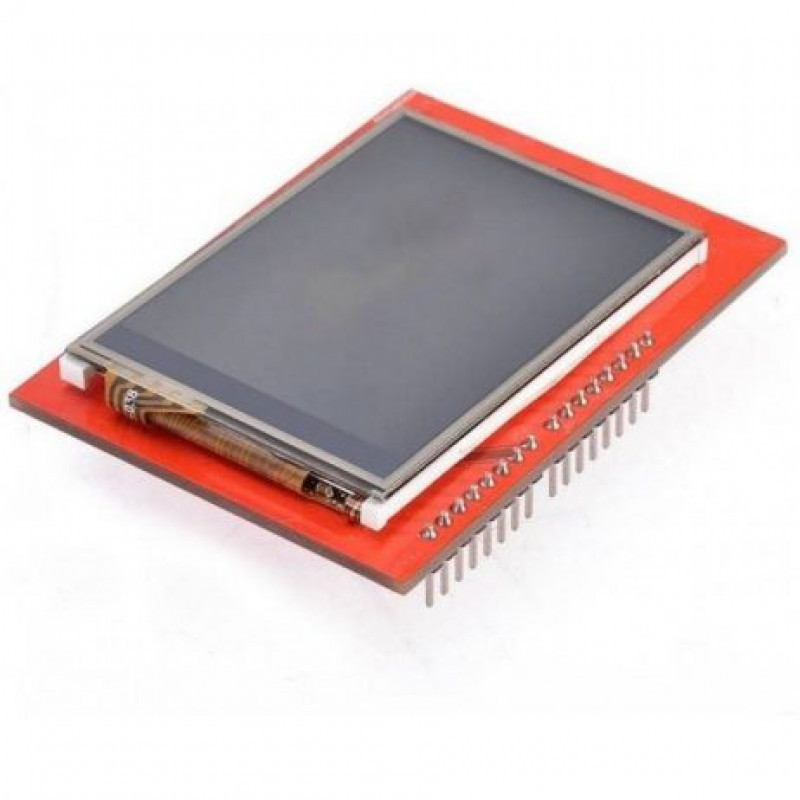

2.4 Inch Touch Screen TFT Display Shield adds a touch up to your Arduino project with a beautiful large touchscreen display shield with built-in micro SD card connection. This TFT display is big (2.4 diagonal) bright and colorful! 240320 pixels with individual pixel control. It has way more resolution than a black and white 12864 display.
Features:
- 2.4 diagonal Touch LCD TFT display
- 240320 resolution, 18-bit (262,000) color
- 8-bit digital interface, plus 4 control lines
- 5V compatible! Use with 3.3V or 5V logic
- Onboard 3.3V 300mA LDO regulator
- Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3, and analog 4 and 5. Pin 12 is available if not using the microSD
- Works with any Arduino Uno and mega compatible boards
Package Includes:
1 x 2.4 Inch Touch Screen TFT Display Shield for Arduino UNO Mega
1 x Stylus Pen
Additional information
| Resolution | 240320 pixels |
| supply voltage | 5V |
| Working temperature | -30C ~ 70C |
| Compatible boards | Arduino UNO and Mega |
| Length(mm) | 72 |
| Width(mm) | 52 |
| Height(mm) | 12 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
2.4 Inch Touch Screen TFT Display Shield for Arduino UNO Mega
- Product Code: EC-5024
- Availability: 7
-
Rs.565.22
