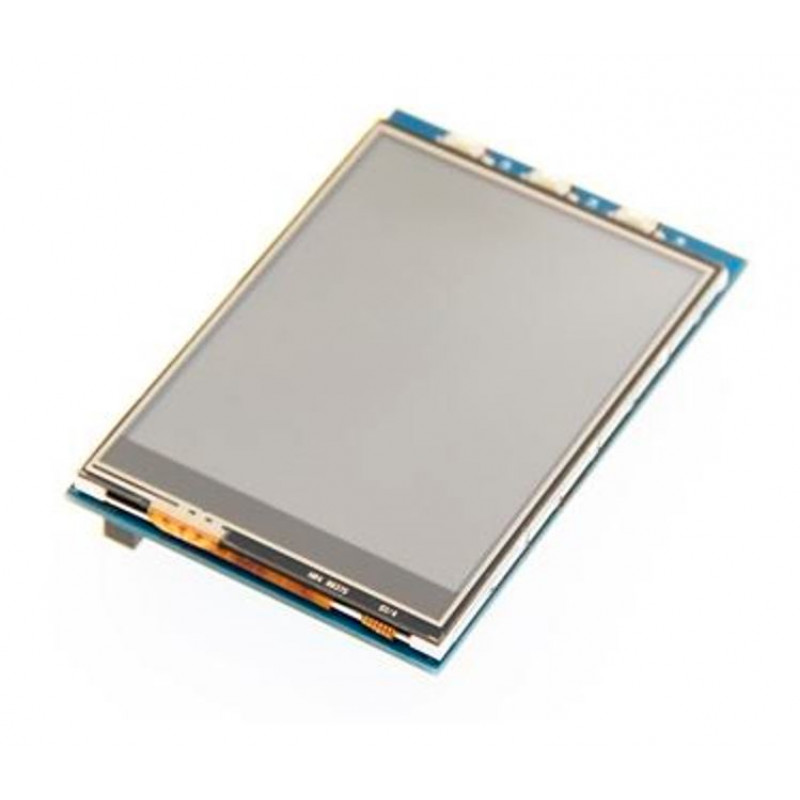

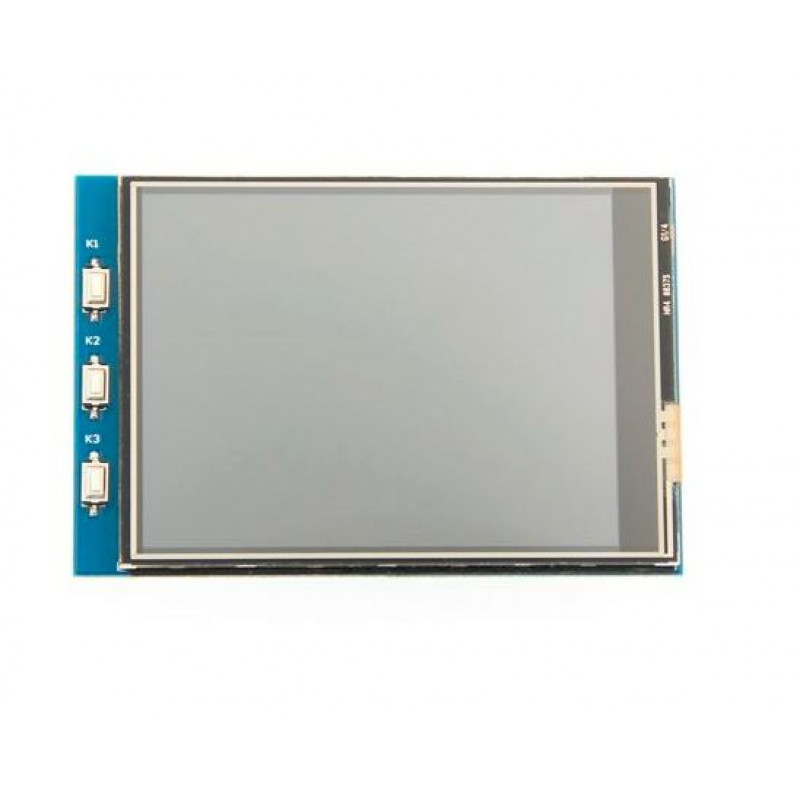

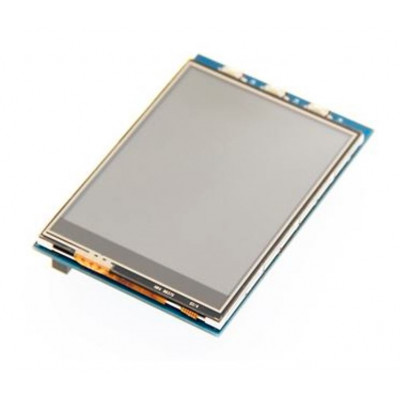

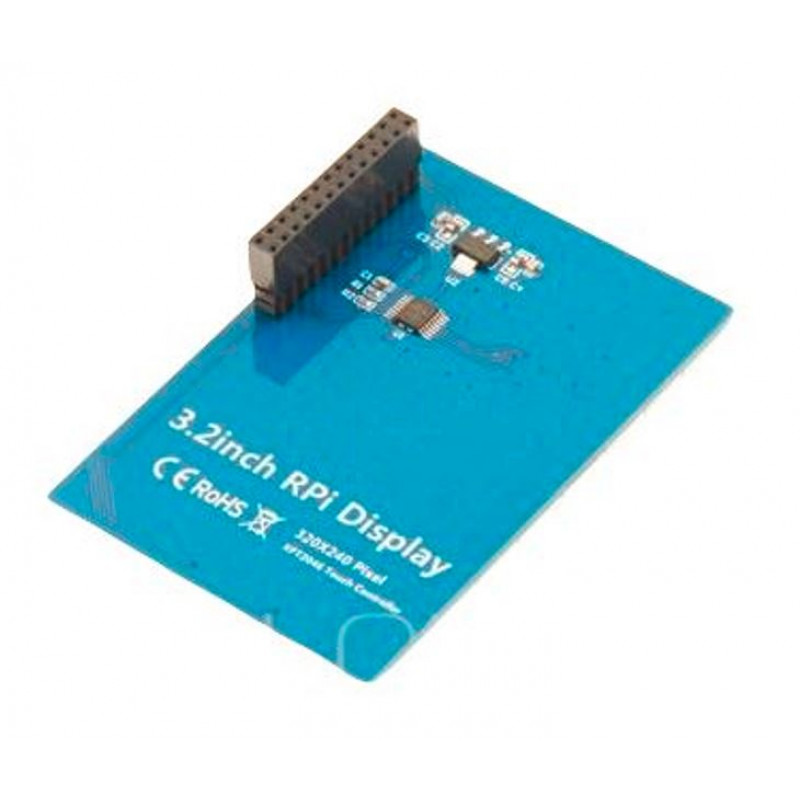

3.2 inch resistive touch screen TFT LCD designed to work directly with Raspberry Pi, Raspbian Image is provided in a DVD with this product. A Touch pen is also included for effective touch interface.It supports any revision of Raspberry Pi and it can be directly plugged on to the RPi board, combined with the portable power this module is a convenient Men-Machine interface for Raspberry Pi. As it supports Raspbian system it could enable your Pi to play videos and take photos on just a touch.
Features:
- Designed specifically for Raspberry Pi, Plug and Play working
- Comes with a printed user manual for quick start
- Works flawlessly with any revision of Raspberry Pi
- Enables your system to take photos by touch, supports 17 different camera modes
- Supports on screen key board, it makes a stand alone system, no need of any external keyboard or mouse
- High quality design with immersion gold pcb surface plating.
Specifications:
- LCD Type : TFT
- LCD Interface : SPI
- Touch Screen Type : Resistive
- Touch Screen Controller : XPT2046
- Colors : 65536
- Backlight : LED
- Resolution : 320x240 (Pixel)
- Aspect Ratio : 4:3
- Dimensions : 84.91x56.54 (mm)
- Weight : 0.071 kg
- Compatible with Raspberry Pi B, Raspberry Pi B+, Raspberry Pi 2 & Raspberry Pi 3
Package Includes:
1 x 3.2 Inch TFT Resistive Touch Screen LCD for raspberry Pi

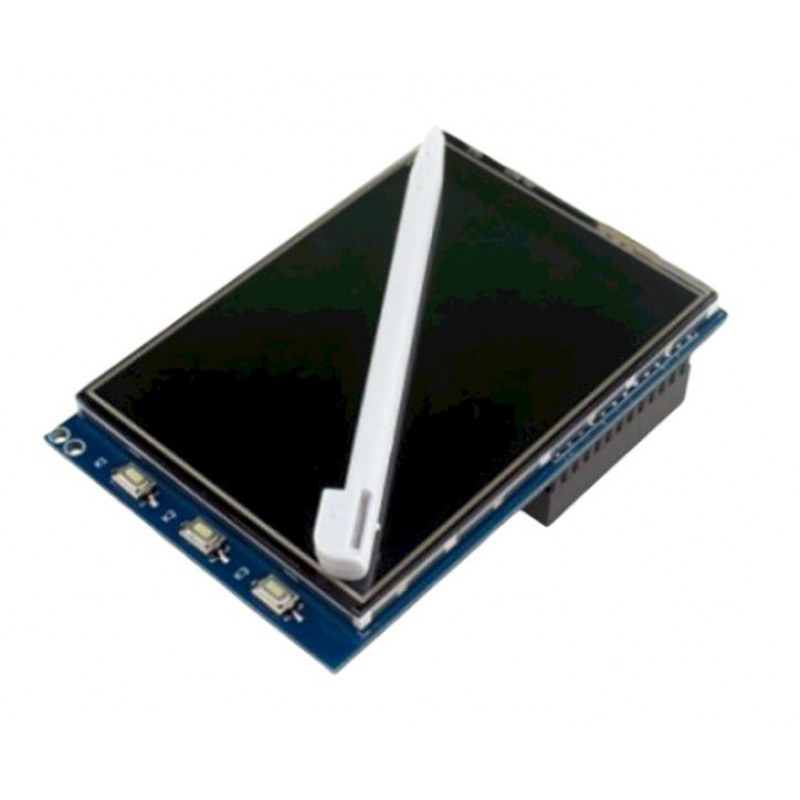

1 x Resistive screen touch pen
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1178.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
3.2 Inch TFT LCD Resistive Touch Screen Display for Raspberry Pi
- Product Code: EC-10021
- Availability: Out Of Stock
-
Rs.999.00
- (Excluding 18% GST)
