The KY-013 Analog Temperature Sensor Module is based on the thermistor (resistance increases with the ambient temperature changes) which sense the real-time temperature of the surrounding environment changes. Change in temperature data in analog form can be taken from this module on analog IO pins, then through any microcontroller, it can be easily converted and displayed in Celsius degrees or any other respective Unit.
Features:-
- Operating Voltage: 5v.
- Temperature measurement range : -55C to 125C.
- Measurement Accuracy : 0.5C.
Specifications:-
| Operating voltage (v) | 5 |
| Temperature measurement range (C) | -55 ~ +125 |
| Measurement Accuracy | 0.5C |
| Length (mm) | 24.5 |
| Width (mm) | 16 |
| Height (mm) | 7 |
| Weight (gm) | 1 |
Package Includes:
1 x Analog Temperature Module.
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

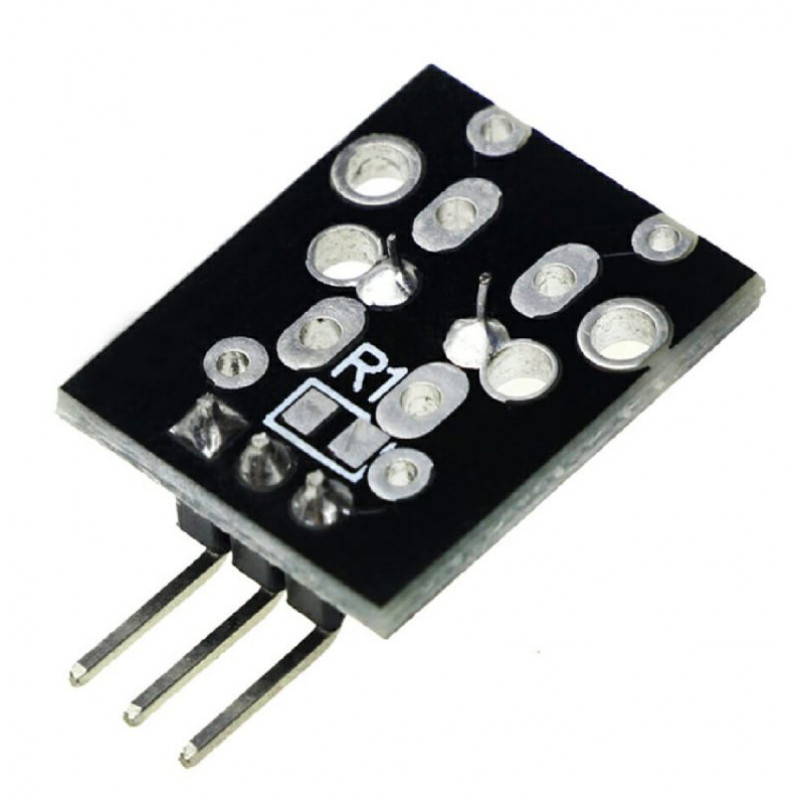

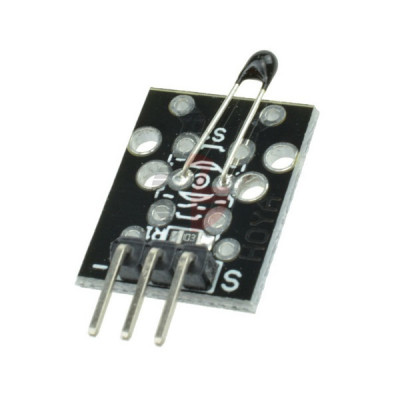

KY-013 Analog Temperature Sensor Module
- Product Code: EC-4737
- Availability: 318
-
Rs.25.96
