Arduino Portenta H7 Development Board simultaneously runs high-level code along with real-time tasks. The design includes two processors that can run tasks in parallel. For example, is possible to execute Arduino compiled code along with MicroPython one, and have both cores to communicate with one another. The Portenta functionality is two-fold, it can either be running like any other embedded microcontroller board or as the main processor of an embedded computer. Use the Portenta Carrier boardto transform your H7 into an eNUC computer and expose all of the H7 physical interfaces.


Portenta can easily run processes created with TensorFlow Lite, you could have one of the cores computing a computer vision algorithm on the fly, while the other could be making low-level operations like controlling a motor, or acting as a user interface.


Applications:

  1. High-end industrial machinery
  2. Laboratory equipment
  3. Computer vision
  4. PLCs
  5. Industry-ready user interfaces, etc.

For more detailed information about the product, you can visit the official Arduino website


Features:

  1. High-end industrial machinery
  2. Laboratory equipment
  3. Computer vision
  4. PLCs
  5. Industry-ready user interfaces
  6. Robotics controller
  7. Mission-critical devices
  8. Dedicated stationary computer
  9. High-speed booting computation (ms)


Package Includes:

1 x Arduino Portenta H7 Development Board


Additional information

Model

Arduio Pro Portenta H7

Main Prosessor

STM32H747XI dual Cortex-M7+M4 32bit low power Arm MCU

SDRAM

8-64 MByte option

QSPI Flash

2-128 MByte option

Ethernet

10/100 Phy option

Wireless

BT5.0 + WiFi 802.11 b/g/n 65Mbps option

Crypto Chip

ECC608 or SE050C2 (Common Criteria EAL 6+) option

Display Connector

MIPI DSI host & MIPI D-PHY to interface with low-pin count large displays

GPU

Chrom-ART graphical hardware Accelerator

Timers

22x timers and watchdogs

UART

4x ports (2 with flow control)

SD CARD

Interface for SD Card connector (through expansion port only)

OPerating Temperature

-40 C to +85 C

Power

Through USB-C connector or LiPo battery (integrated charger)

Current Consumption

2.95 A in Standby mode (Backup SRAM OFF, RTC/LSE ON)

USB-C

Host / Device, DisplayPort out, High / Full Speed, Power delivery

MKR Headers

Use any of the existing industrial MKR shields on it

High Density Connectivity

Two 80 pin connectors will expose all of the board's peripherals to other devices

ESLOV Connector

Arduino's open connector standard for self-identifiable hardware

Camera Interface

8-bit, up to 80 MHz

ADC

ADC 3 ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)

DAC

DAC 2 12-bit DAC (1 MHz)


Brand/Manufacturer Arduino
Country Of Origin Italy
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 11090.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

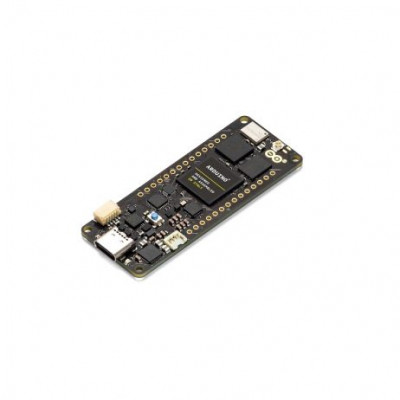

Arduino Portenta H7 Development Board

  • Product Code: EC-5018
  • Availability: 7
  • Rs.10499.00
  • (Excluding 18% GST)
