While the news-breaking launch of the Raspberry Pi Pico is still fresh in our minds, here is another launch of a tiny but powerful development board in the world of microcontroller boards on the footprint of Raspberry Pi Pico from Arduino officials.

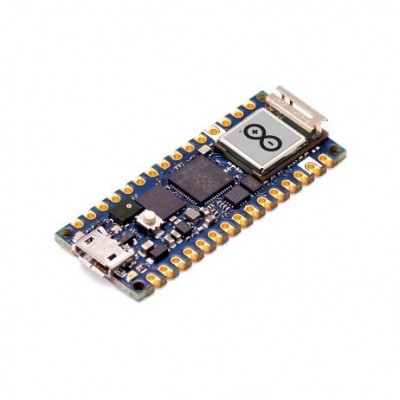

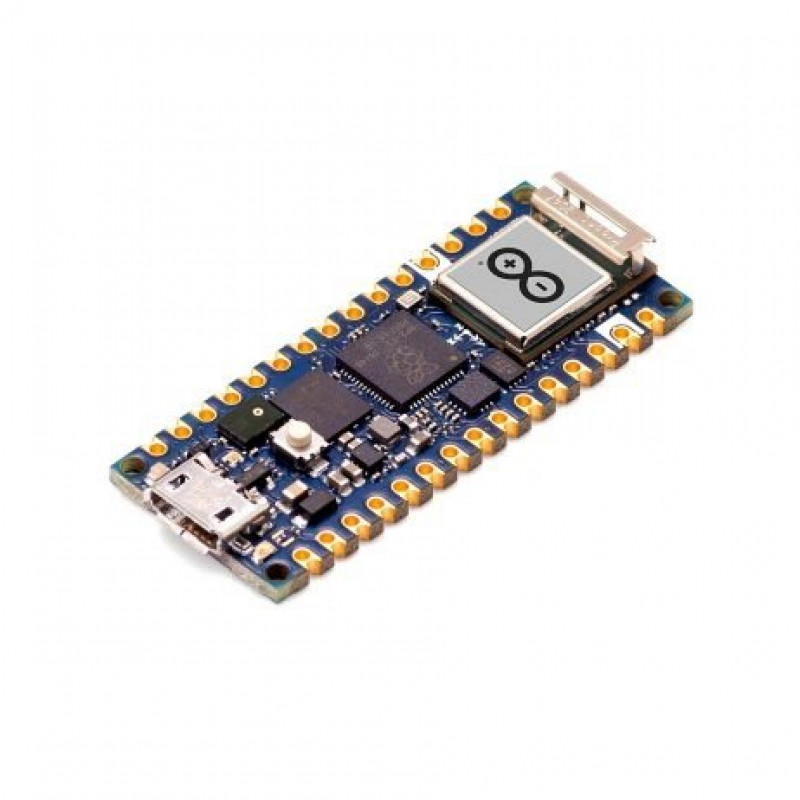

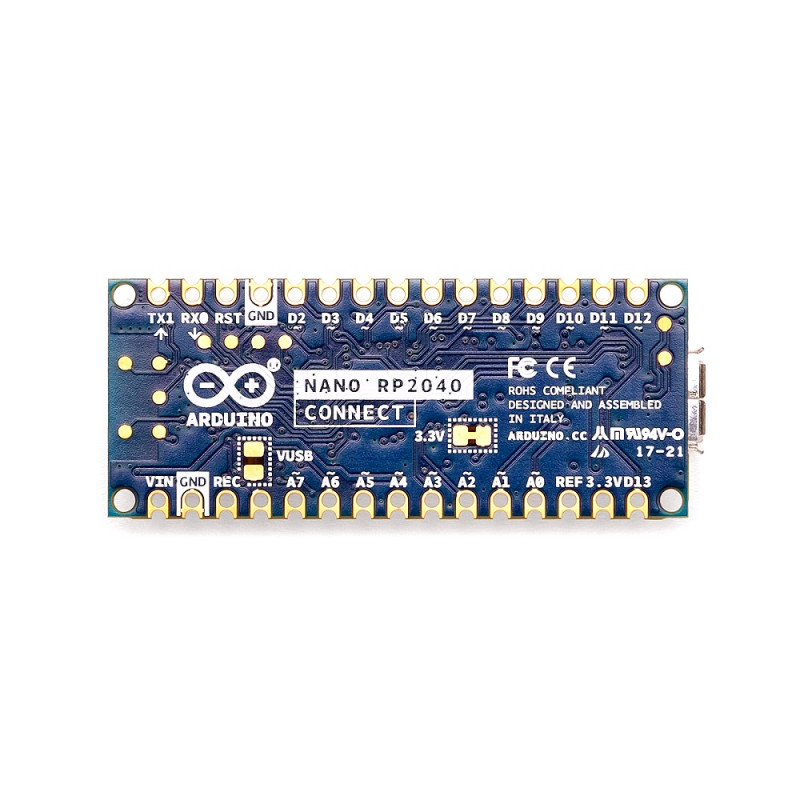

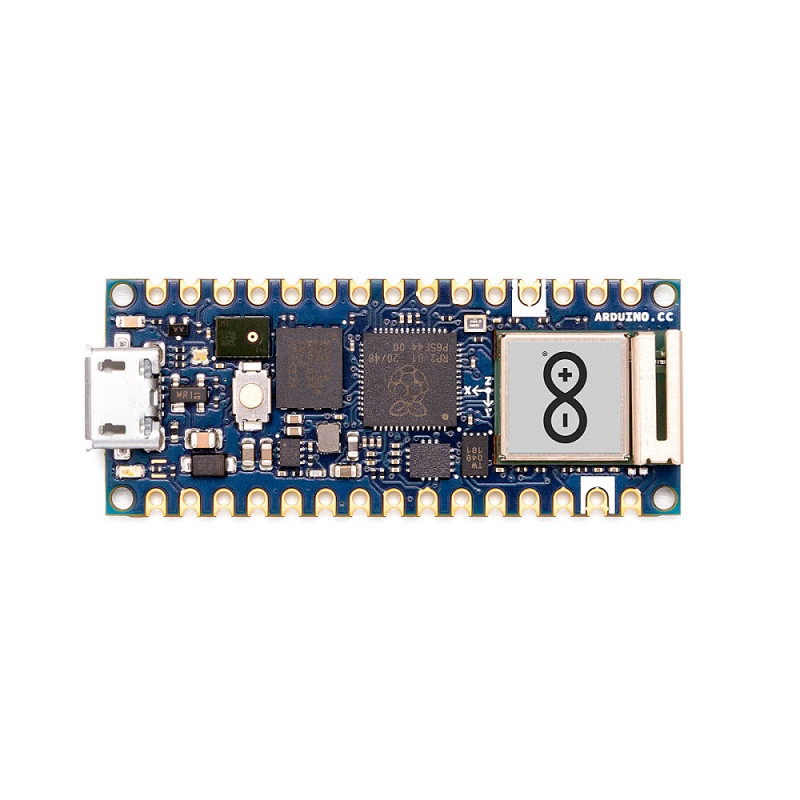

Arduino named it Arduino Nano RP2040 Connect a newly launched Microcontroller board welcoming the Raspberry Pis RP2040chip on which NANO connect has been built. The Arduino Nano RP2040 Connect shares a similar form factor to the Raspberry Pi Pico, but it includes extra functionality, chiefly WiFi and Bluetooth along with a 9-axis IMU sensor and microphone.

Arduino also broke the news that they will be porting the Arduino IDE for use with the RP2040 chip. This is welcome news for C/C++ developers and embedded hobbyists alike.


Features and Specifications:

Raspberry Pi RP2040 Microcontroller:
  1. 133MHz 32bit Dual Core Arm Cortex-M0+
  2. 264kB on-chip SRAM
  3. Direct Memory Access (DMA) controller
  4. Support for up to 16MB of off-chip Flash memory via dedicated QSPI bus
  5. USB 1.1 controller and PHY, with host and device support
  6. 8 PIO state machines
  7. Programmable IO (PIO) for extended peripheral support
  8. 4 channel ADC with internal temperature sensor, 0.5 MS a/s, 12-bit conversion
  9. SWD Debugging
  10. 2 on-chip PLLs to generate USB and core clock
  11. 40nm process node
  12. Multiple low power mode support
  13. USB 1.1 Host/Device
  14. Internal Voltage Regulator to supply the core voltage
  15. Advanced High-performance Bus (AHB)/Advanced Peripheral Bus (APB)

U-blox Nina W102 WiFi/Bluetooth Module:
  1. 240MHz 32bit Dual Core Xtensa LX6
  2. 520kB on-chip SRAM
  3. 448 Kbyte ROM for booting and core functions
  4. 16 Mbit FLASH for code storage including hardware encryption to protect programs
    and data
  5. 1 kbit EFUSE (non-erasable memory) for MAC addresses, module configuration,
  6. Flash-Encryption, and Chip-ID
  7. IEEE 802.11b/g/n single-band 2.4 GHz WiFi operation
  8. Bluetooth 4.2
  9. Integrated Planar Inverted-F Antenna (PIFA)
  10. 4x 12-bit ADC
  11. 3x I2C, SDIO, CAN, QSPI

Memory:
  1. AT25SF128A 16MB NOR Flash
  2. QSPI data transfer rate up to 532Mbps
  3. 100K program/erase cycles


Package Includes:

1 x Arduino Nano RP2040 Connect without Header

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2972.42 (Inclusive of all Taxes)
