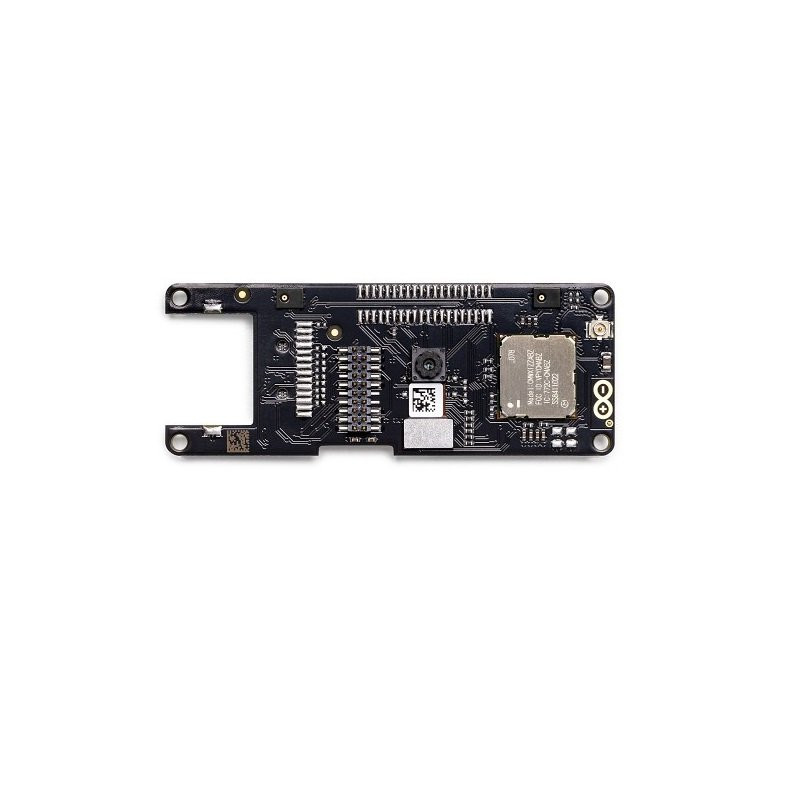

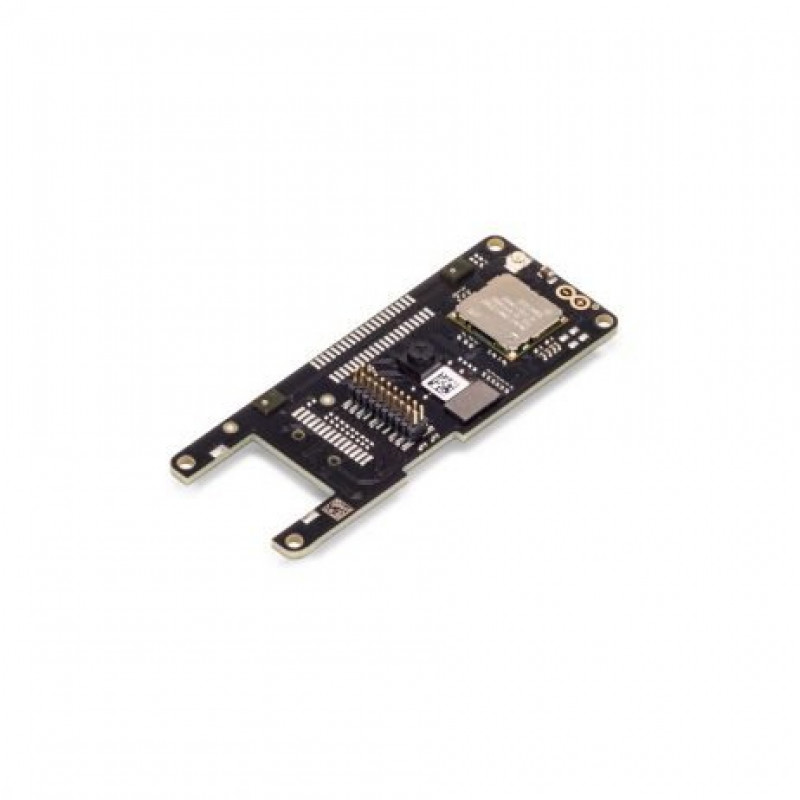

The Portenta Vision Shield LoRa brings industry-rated features to your Arduino Portenta. This hardware add-on will let you run embedded computer vision applications, connect wirelessly via LoRa to the Arduino Cloud or your own infrastructure, and activate your system upon the detection of sound events.

The Vision Shield LoRa has been designed to work with the Arduino Portenta H7. The Portenta boards feature multicore 32-bit ARM Cortex processors running at hundreds of megahertz, with megabytes of program memory and RAM. Portenta boards come with WiFi and Bluetooth.


Features:

  1. Runs image recognition algorithms using the OpenMV for Arduino editor.
  2. Long-range 868/915MHz LoRa wireless connectivity.
  3. Connects Portenta H7 to the Internet of Things with low power consumption.
  4. Two onboard microphones for directional sound detection.
  5. Captures and analyzes sound in real-time.
  6. Perform low-level debugging of your Portenta board or special firmware updates using an external programmer.
  7. Store your captured data in the card, or read configuration files.


Package Includes:

1 x Arduino Portenta Vision Shield LORA



Specifications :-

Camera

Himax HM-01B0

Resolution

320P x 320P with support for QVGA

Image Sensor

High sensitivity 3.6 BrightSense

Microphone

2 x MP34DT05

Connectivity

868/915MHz ABZ-093 LoRa Module with ARM Cortex-M0+

Length (mm)

66

Width (mm)

25

Height (mm)

4

Weight (gm)

8



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 7196.82 (Inclusive of all Taxes)
