This is Original Arduino Mega board from Arduino Officials based on ATmega16U2.The Official Arduino Mega 2560 is Rev3 development board based on ATmega2560 microcontroller. The board has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analogue inputs, 4 UARTs (hardware serial ports), a 16MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller, simply connect it to a computer with a USB cable or power it with an AC to DC adaptor or battery to get started.

The Mega is compatible with most shields designed for the Arduino Uno, Duemilanove or Diecimila. The Arduino Mega can be powered via the USB connection or with an external power supply. The power source is selected automatically. The Arduino Mega2560 has a number of facilities for communicating with a computer, another Arduino or other microcontrollers.

Revision 2 of the Original Arduino Mega 2560 board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.


Revision 3 of the board has the following new features:
  • 1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operates with 3.3V. The second one is a not connected pin, that is reserved for future purposes.


Applications:

Embedded Design & Development, Industrial, Communications & Networking, Sensing & Instrumentation, Automation & Process Control

Caution: The recommended range is 7V to 12V. If using more than 12V, the voltage regulator may overheat and damage the board.


Features:

  1. ATmega16U2 instead 8U2 as USB to serial converter
  2. 1.0 pinout
  3. Stronger RESET circuit
  4. 5V operating voltage
  5. Input voltage (recommended) range from 7V to 12V
  6. Input voltage (limit) range from 6V to 20V
  7. 40mA DC current per I/O pin
  8. 256KB flash memory of which 8KB used by bootloader
  9. 8KB SRAM
  10. 4KB EEPROM

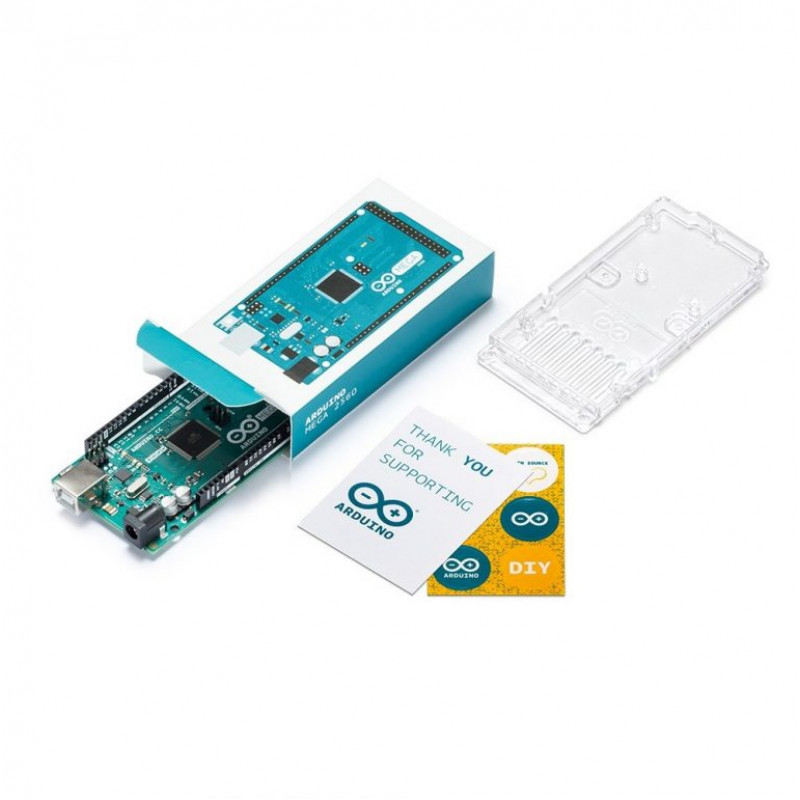

Package Includes:

1 x Original Arduino Mega 2560 ATmega2560 MCU Development Board


Additional information

Model

Mega 2560

Processor IC

ATmega16U2

Operating Voltage

5VDC

Current per I/O pin

40mA DC

Memory

256KB flash memory of which 8KB used by bootloader
8KB SRAM
4KB EEPROM

Input voltage (recommended)

range from 7V to 12V

Input voltage (limit)

Range from 6V to 20V

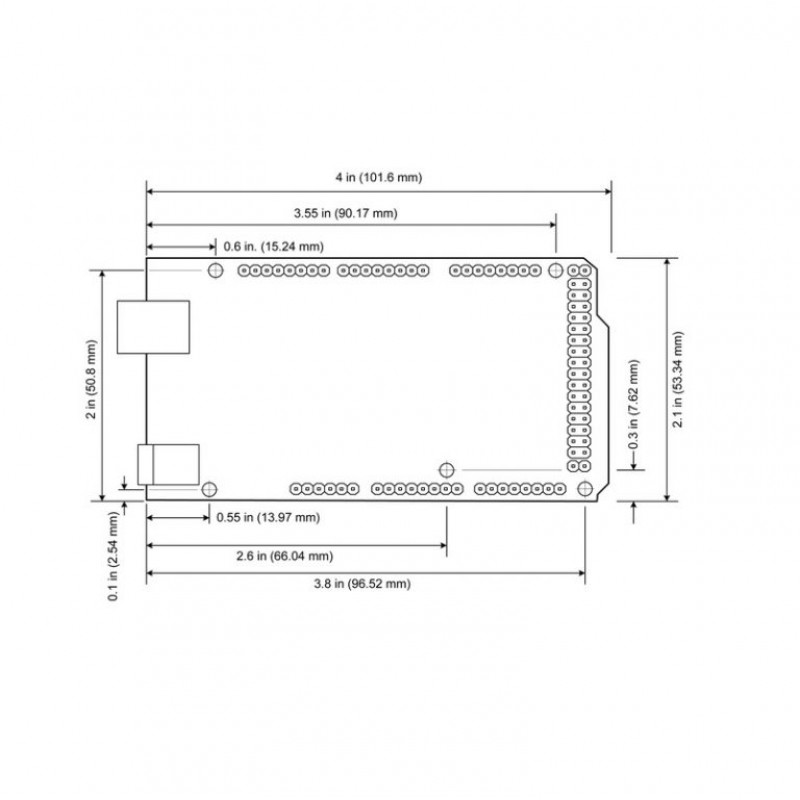

Length (mm)

102

Width (mm)

51

Height (mm)

30

Weight (gm)

40

Shipment Weight

0.1 kg

Shipment Dimensions

12 4 3 cm

Brand/Manufacturer Arduino
Country Of Origin Italy
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3066.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

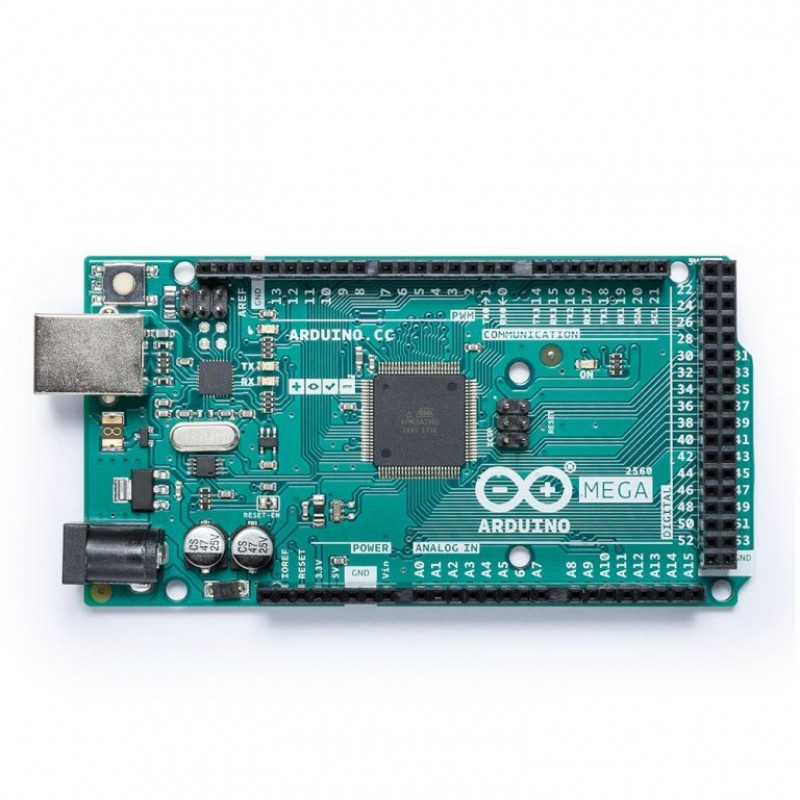

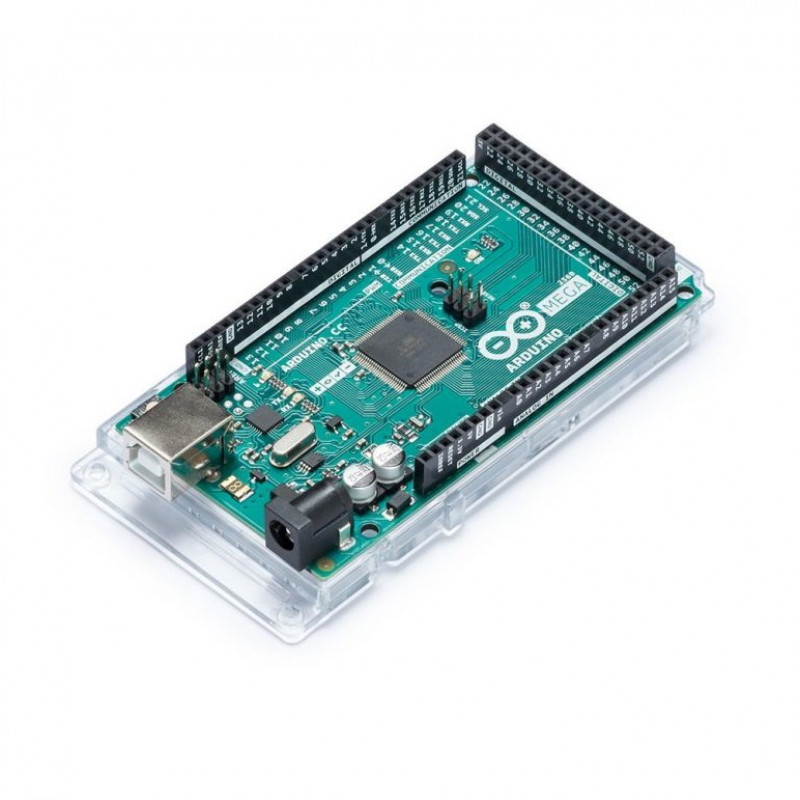

Original Arduino Mega 2560 ATmega2560 MCU Rev3
