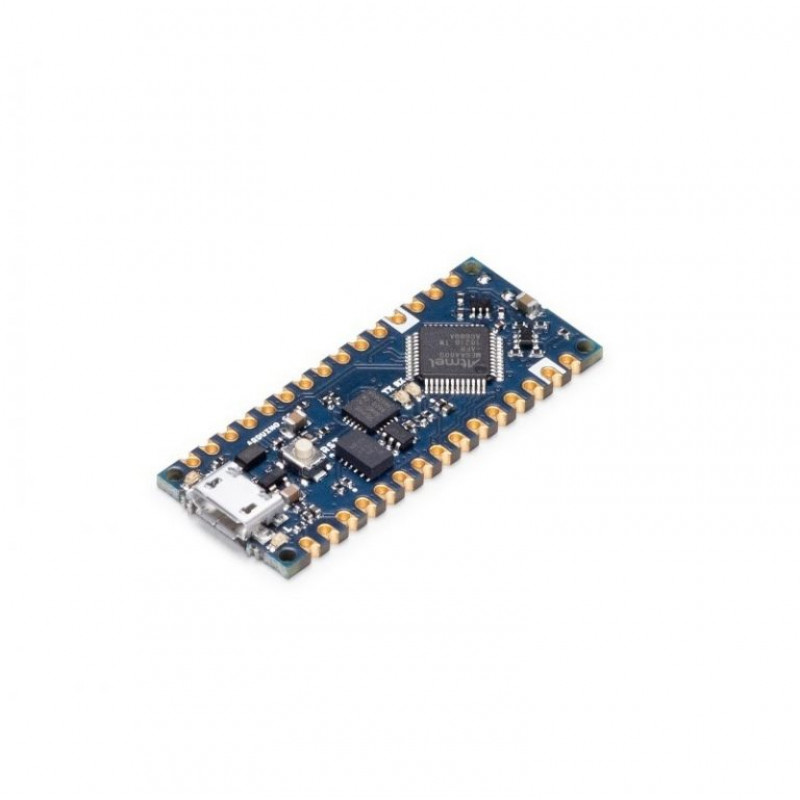

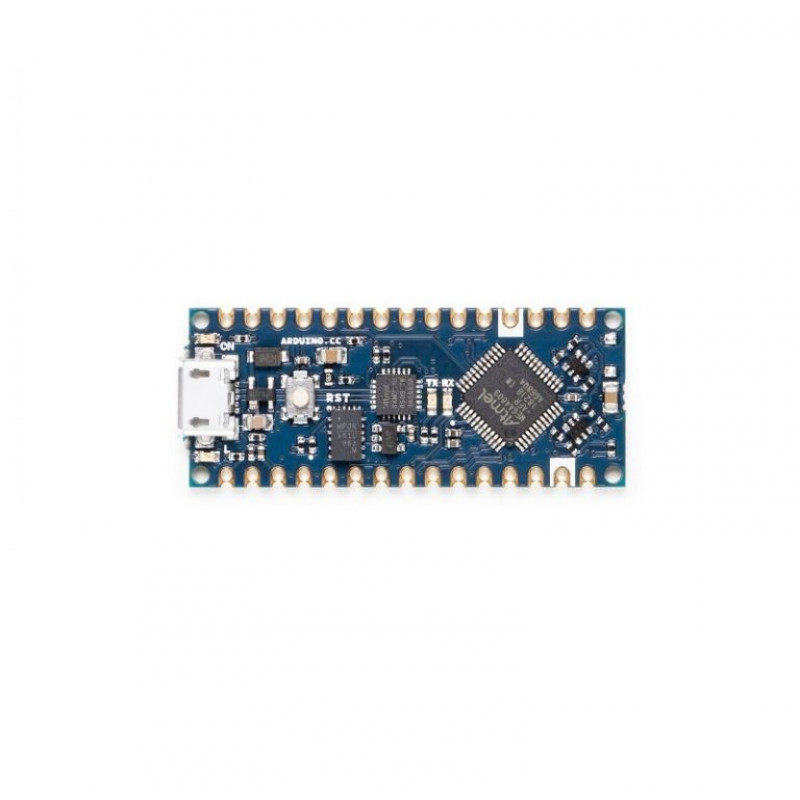

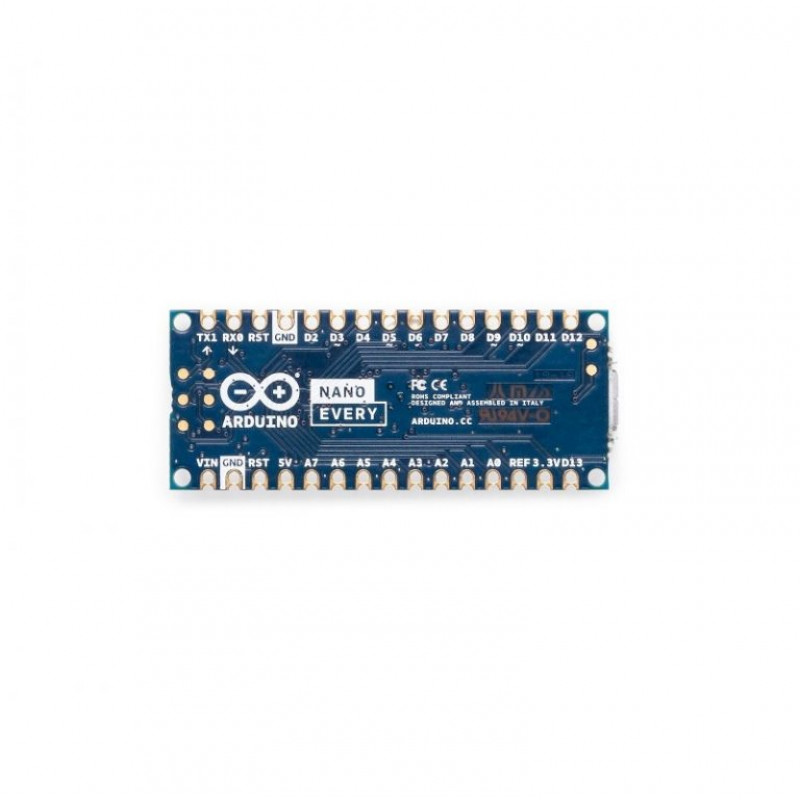

The Nano Every is an Original Arduinos 5V compatible board in the smallest available form factor: 45x18mm!The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4089. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).

If you used Arduino Nano in your projects in the past, the Original Arduino Nano Every is a pin-equivalent substitute. Your code will still work, and you will NOT need to re-wire those motors you planned in your original design. The main differences are a better processor and a micro-USB connector.

The board comes in two options: with or without headers, allowing you to embed the Nano Every inside any kind of inventions, including wearables. The board comes with tessellated connectors and no components on the B-side. These features allow you to solder the board directly onto your own design, minimizing the height of your whole prototype.


Package Includes:

1 x Original Arduino Nano Every


Additional information

Model Type

Arduino Nano Every

Color

Blue

Operating Voltage (VDC)

5

Input Voltage (limit)

21V

Analog I/O Pins

8

PWM Output Pins

5 (D3, D5, D6, D9, D10)

Ports

UART : 1
SPI : 1
I2C : 1

LED_BUILTIN

13

Architecture

AVR

Clock Speed

20 MHz

DC Current per I/O Pin (mA)

20

Flash Memory

48 KB

EEPROM

256byte (ATMega4809)

SRAM (KB)

6

Weight (gm)

5

Length (mm)

45

Width (mm)

18

Height (mm)

6


Brand/Manufacturer Arduino
Country Of Origin Italy
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1168.2 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Original Arduino Nano Every

  • Product Code: EC-5012
  • Availability: 1
  • Rs.990.00
  • (Excluding 18% GST)
