This Arduino Uno is an original microcontroller board from Arduino officials based on the ATmega328P.It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.. You can tinker with your UNO without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.

Uno means one in Italian and was chosen to mark the release of Arduino Software (IDE) 1.0. The Uno board and version 1.0 of Arduino Software (IDE) were the reference versions of Arduino, now evolved to newer releases. The Original Arduino Uno Rev3 board is the first in a series of USB Arduino boards and the reference model for the Arduino platform; for an extensive list of current, past or outdated boards see the Arduino index of boards.



Package Includes:

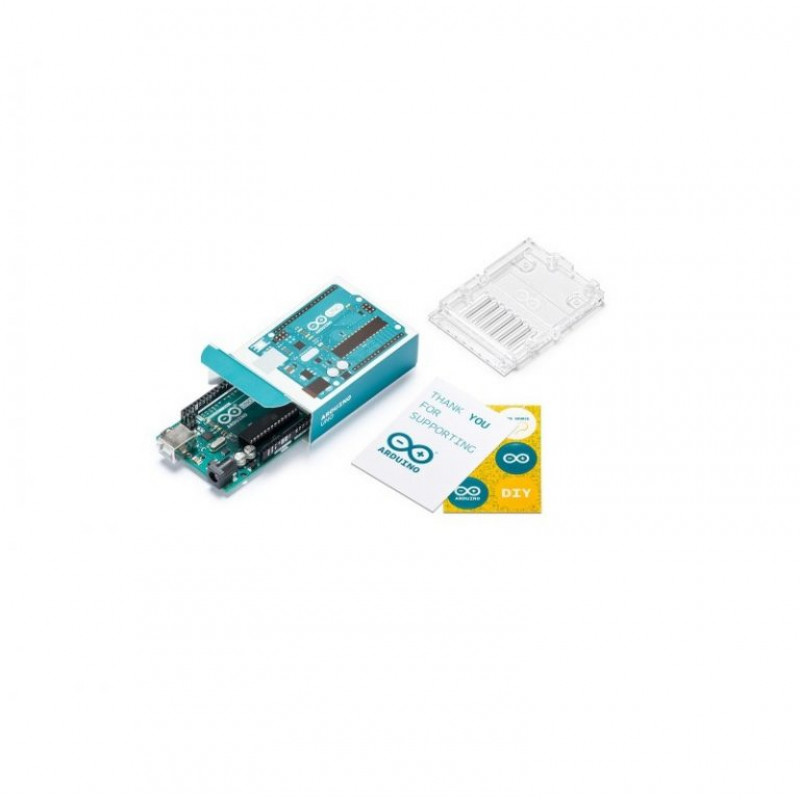

1 x Original Arduino Uno Rev3


Additional information

Model Type

Arduino Uno R3

Microcontroller Chip

ATmega328P

Operating Voltage (VDC)

5

Input Voltage(Recommended)

7-12V

Analog I/O Pins

6

Digital I/O Pins

14 (of which 6 provide PWM output)

PWM Digital I/O Pins

6

Clock Speed

16 MHz

Flash Memory

32 KB

SRAM (KB)

2

EEPROM

1 KB (ATmega328P)

DC Current for 3.3V Pin (mA)

50

DC Current per I/O Pin (mA)

20

On Board LEDs

Yes

Operating Temperature (C)

-10 to 60

Weight (gm)

25

Length (mm)

68.6

Width (mm)

53.4

Height (mm)

12.5


Brand/Manufacturer Arduino
Country Of Origin Italy
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1591.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

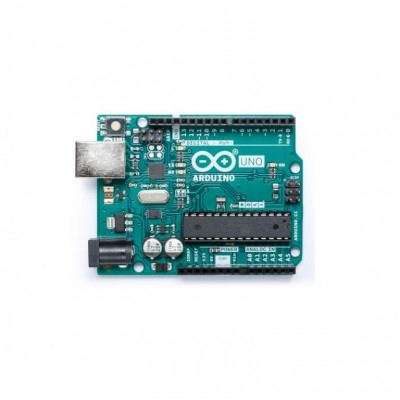

Original Arduino Uno Rev3

  • Product Code: EC-5010
  • Availability: 57
  • Rs.1679.00
  • (Excluding 18% GST)
