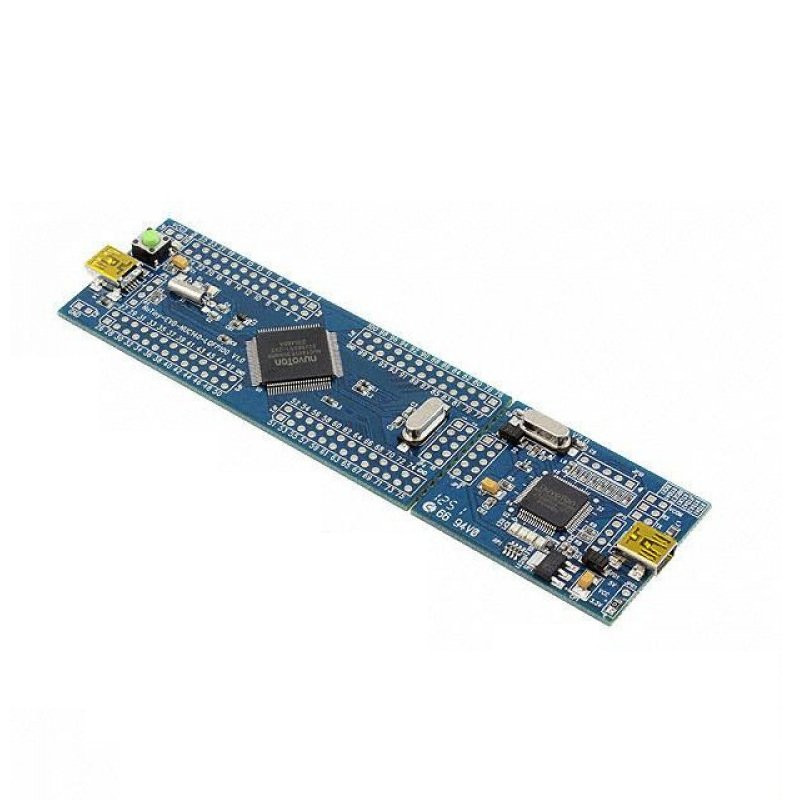

  • NuTiny ARM Cortex-M0 Starter Kit - NUC140

Looking for a 32-bit ARM architecture microcontroller? Now we carry the NuTiny ARM Cortex-M0 Starter Kit NUC140. It is based on the ARM Cortex-M0 Nuvoton NUC140 series of the microcontroller.

NuTiny-NUC140 is the specific development tool for the NuMicro NUC140 series. Users can use this starter kit to develop and verify the application program easily. It comes with two modules, the USB programmer and the NUC140 development board.

NUC140 development board is the evaluation board while the USB programmer offer program loading and debug adaptor. Thus, users do not need other additional ICE or debug the equipment. Please do get a USB Mini-B cable if you do not have for program loading and power.


Features :

  1. 32-bit ARM Cortex-M0 microcontroller from Nuvoton.
  2. Pre mounted with NUC140VE3CN as the target microcontroller.
  3. Comes with Nu-Link-Me, USB programmer and debugger.
  4. USB mini B receptor for USB device development.
  5. Pre-mounted with 12MHz crystal(MCU system clock) and 32.768KHz crystal (real-time clock).
  6. Operating Voltage: 5V
  7. Pre-mounted with the reset button.
  8. The USB programmer and debugger is compatible with IAR or Keil IDE.

NUC140VE3CN Highlights

Core
Cortex-M0 processor
Max frequency of 50 MHz
Operating voltage: 2.5V to 5.5V
Temperature range: -40 ~ 85

Memory
128 KB of flash memory
16 KB of SRAM
ISP (In-System Programming)
ICP (In-Circuit Programming)

ADC
Up to 8 channels
12-bit resolution
Up to 800 kSPS
1 accurate Temperature sensor

PWM
8 x channel PWM or three complementary paired PWM outputs
Period/duty trigger ADC function

Connectivity
1 x Bosch CAN 2.0b
1 x USB 2.0 Full Speed
4 x SPIs (up to 36 MHz)
2 x ICs (up to 400 kHz)
3 x UARTs (up to 1 Mbps)
16/8 bits EBI interface

Clock Control
4 to 24 MHz external crystal oscillator
22.1184 MHz internal RC oscillator (1% accuracy at 25, 5V)


Package Includes :

1 x NuTiny ARM Cortex-M0 Starter Kit NUC140.

A Keil Evaluation version installer.

A Datasheet.

A Users Manual.

A USB driver.


Specifications:

Core

Cortex-M0 processor

Operating Voltage (V)

2.5 ~ 5.5

Max Frequency (MHz)

50

Operating Temperature (C)

-40 ~ +80

Flash memory

128 KB

SRAM

16 KB

ADC channels

8

ADC resolution

12-Bits

Length (mm)

136

Width (mm)

35

Height (mm)

10

Weight (gm)

40

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2796.6 (Inclusive of all Taxes)
