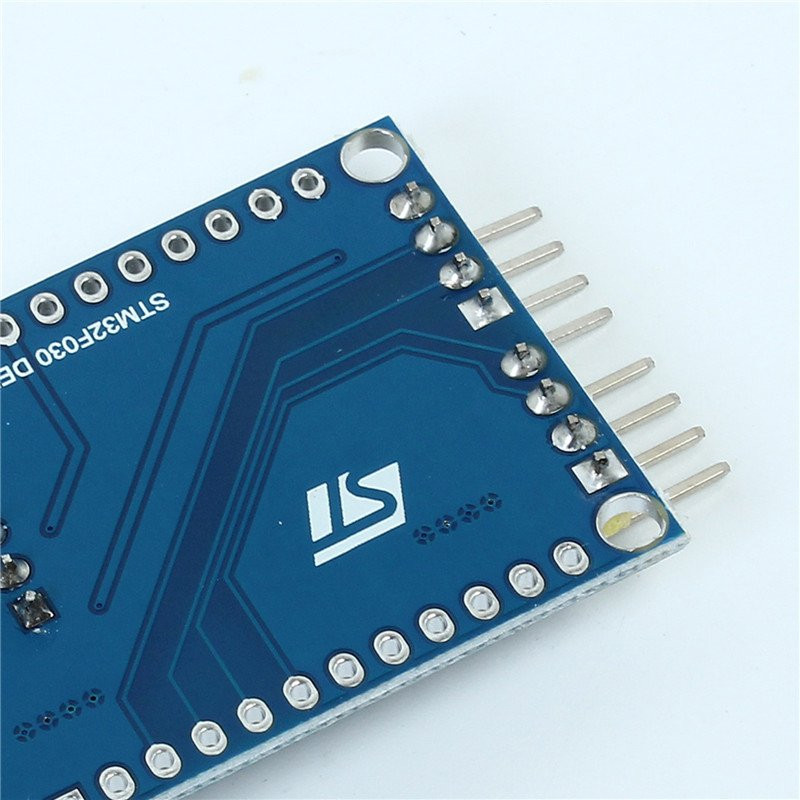

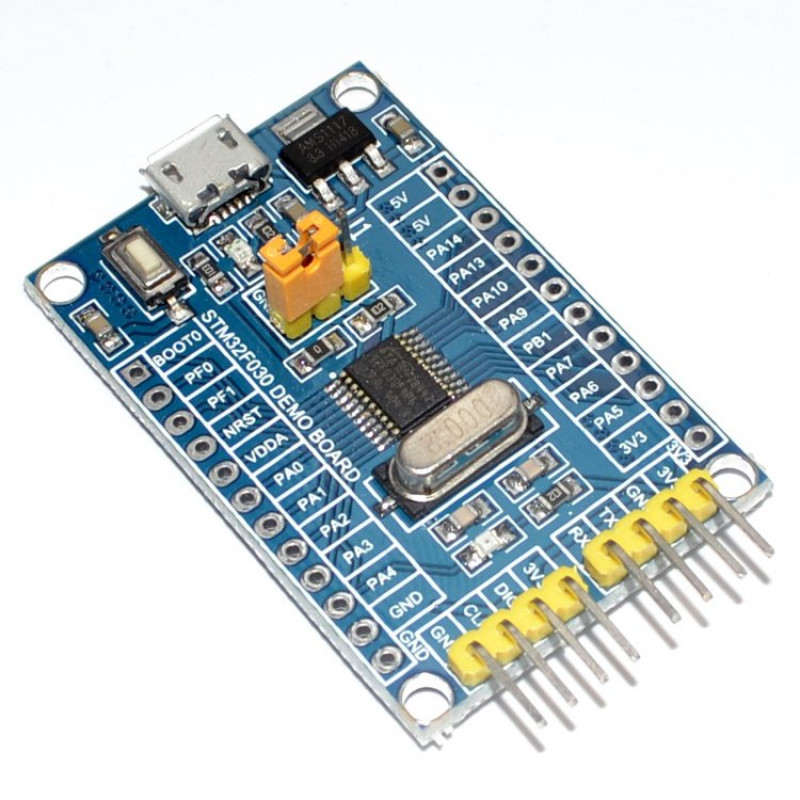

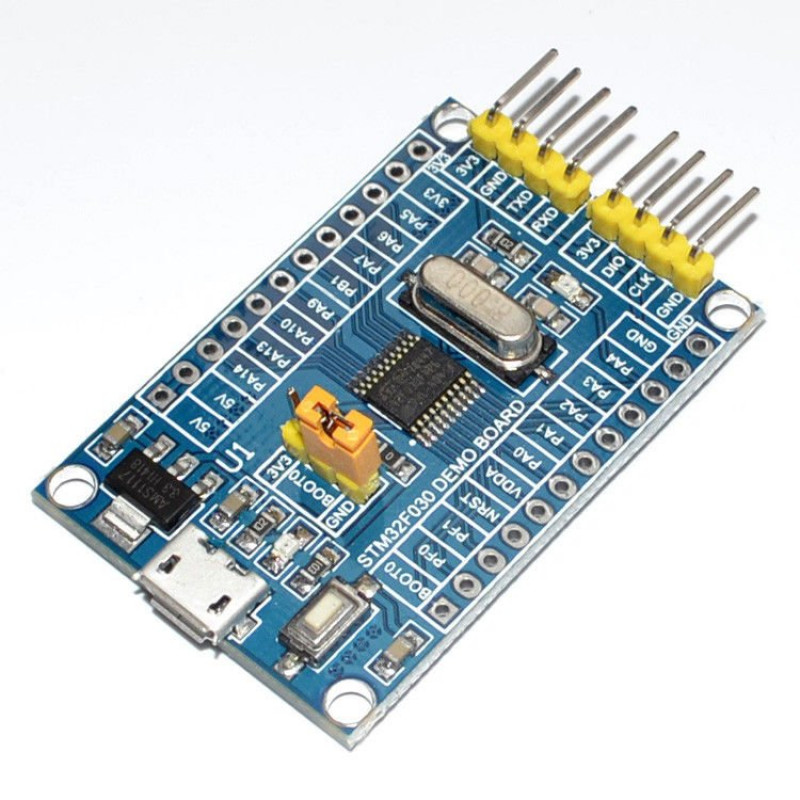

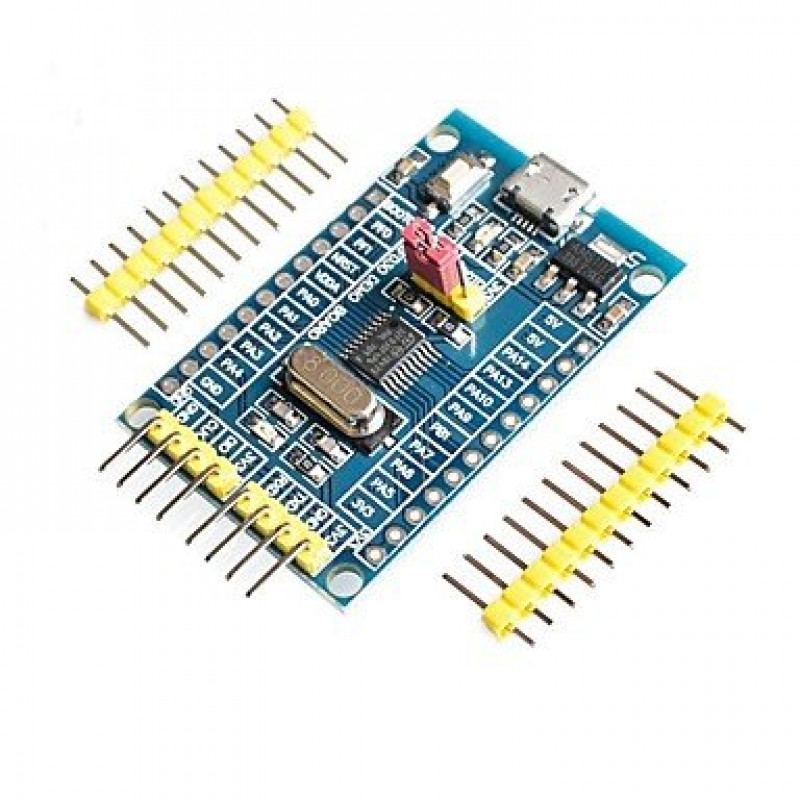

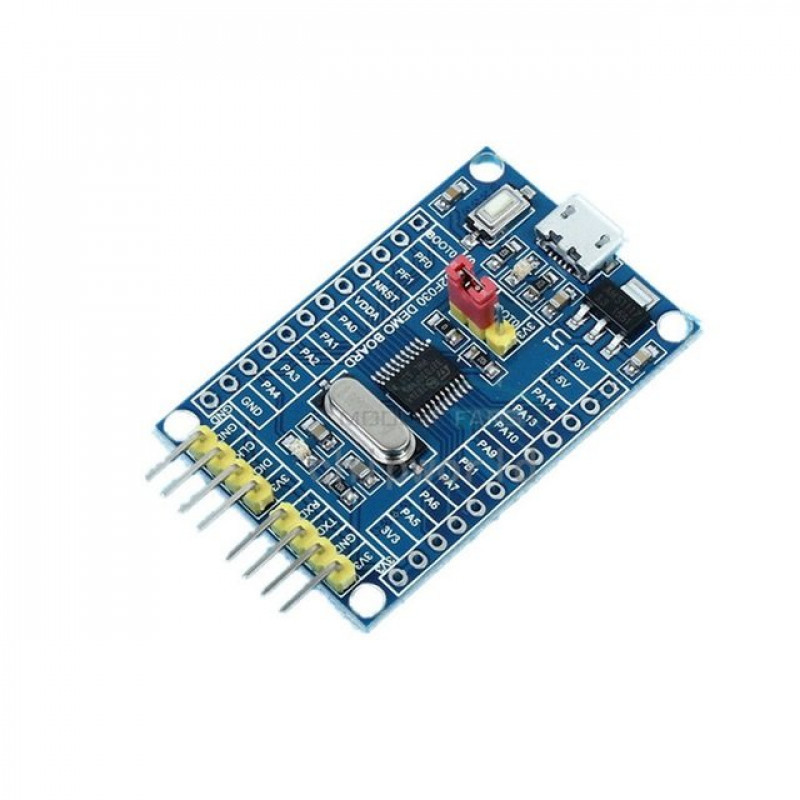

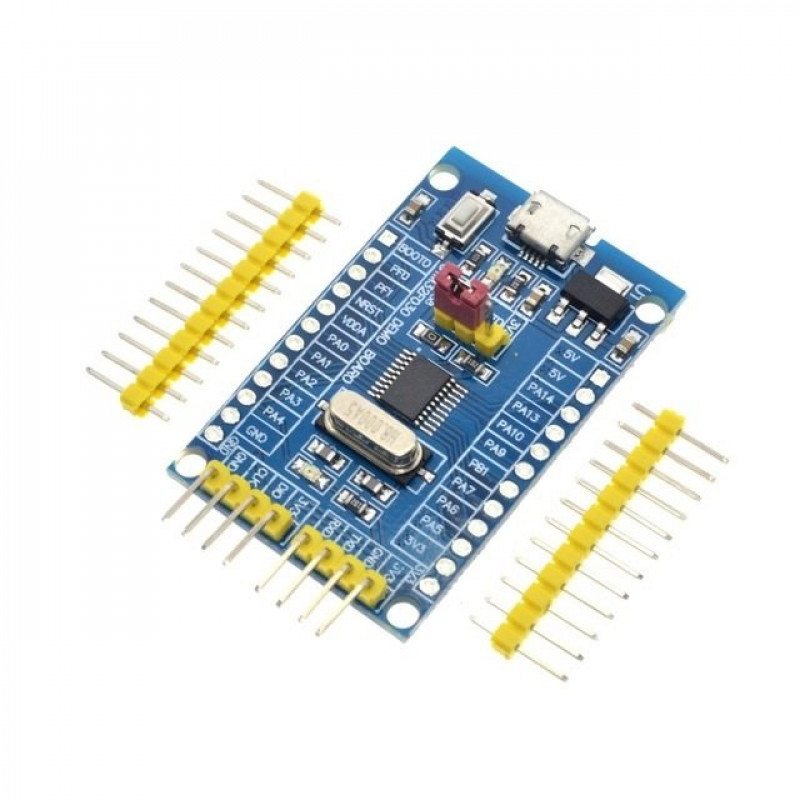

This STM32F030F4P6 core board development board core ARM CORTEX-M0 board is a Minimum System Board STM32F030F4P6 (Cortex-M0). The MCU target is STM32F030F4P6 which is provided by ST. It is a 32-bit ARM Cortex -M0 CPU, frequency up to 48 MHz, high-speed built-in memories. As a minimum ready-to-run system, this board integrates micro USB power supply interface, ISP / SWD interface programming / debugging startup mode selection and so on to take you to the ARM Cortex world easily.
Package Includes:
1 x STM32F030F4P6 core board development board core ARM CORTEX-M0
Specifications:
| Input Voltage (V) | 3.3 |
| Output Voltage(V) | 3.3 ~ 5 |
| CPU Architecture | RM CORTEX-M0 |
| Microprocessor Model | STM32F030F4P6 |
| Dimensions in mm (LxWxH) | 48 x 30 x 8 |
| Weight (gm) | 7 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 737.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STM32F030F4P6 core board development board core ARM CORTEX-M0
- Product Code: EC-5689
- Availability: 153
-
Rs.225.00
- (Excluding 18% GST)
