The STM32F405xx and STM32F407xx family is based on the high-performance ArmCortex-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.


Features:

  1. Core: Ar 32-bit Cortex-M4 CPU with FPU
  2. LCD parallel interface, 8080/6800 modes
  3. Low-power operation
  4. 312-bit, 2.4 MSPS A/D converters
  5. 212-bit D/A converters
  6. General-purpose DMA
  7. Up to 17 timers
  8. Up to 140 I/O ports with interrupt capability

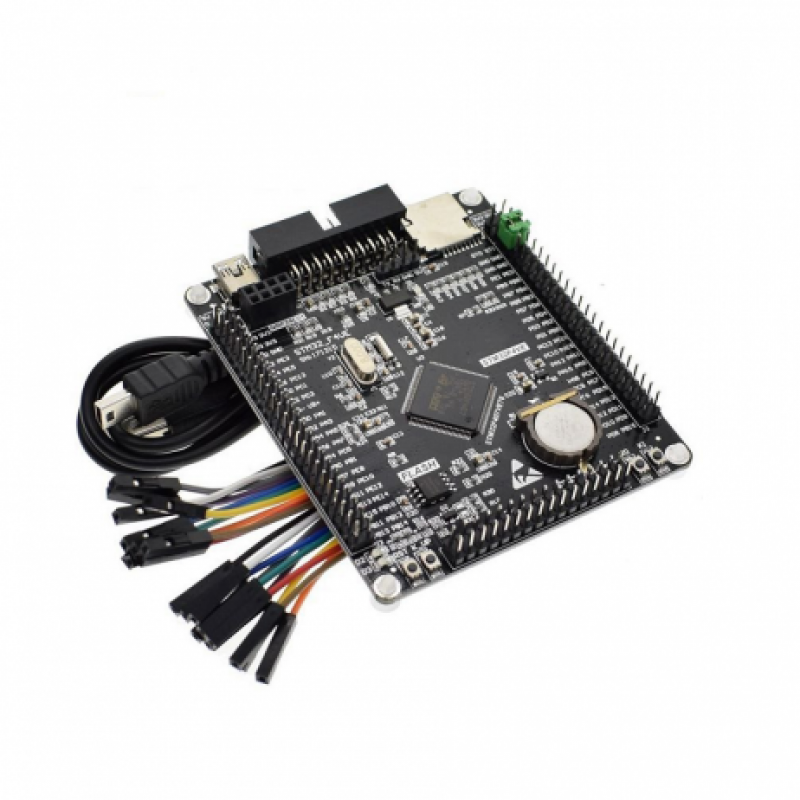

Package Includes:

1 x STM32F407VET6 Arm Cortex-M4 core with DSP and FPU

10 x Female-Female Jumper Cable

1 x USB Cable


Specification:

Model

STM32F407VET6

Core

ARM 32 Cortex M4 CPU

Debug Mode

SWD

Number of I/O

140

Memory

192+4 Kbytes SRAM
1Mbyte Flash

D/A Converters

2 x 12-bit

Timer

17

Length (mm)

73

Width (mm)

85

Height (mm)

15

Weight (gm)

66

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3102.22 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

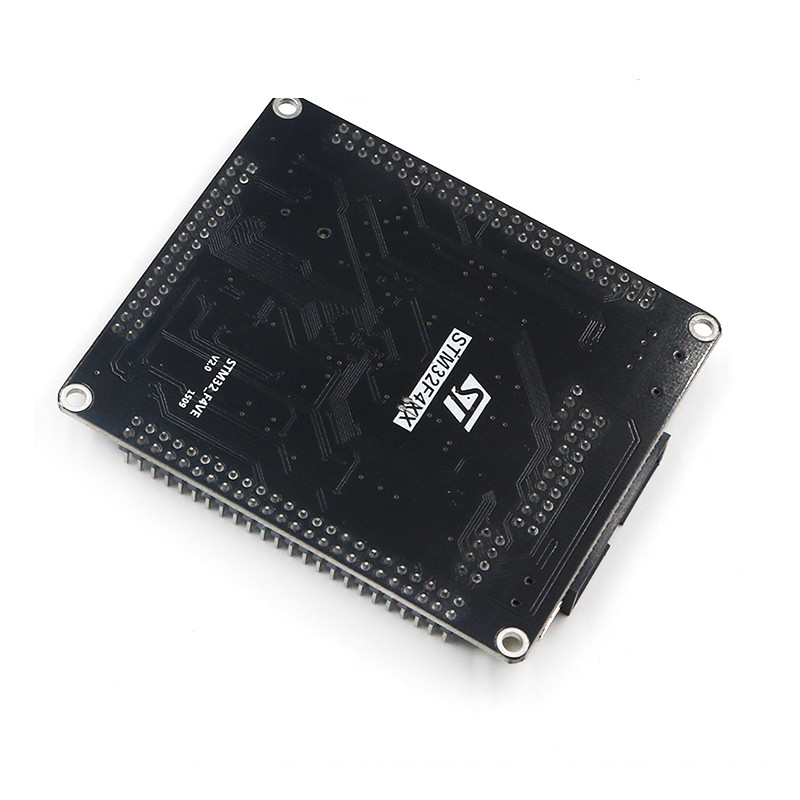

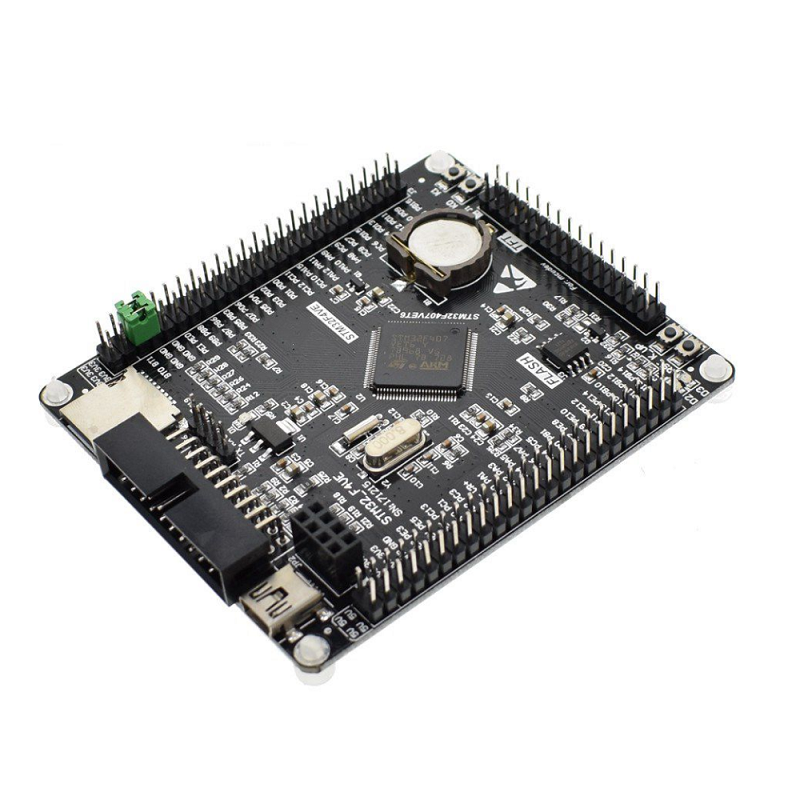

STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
