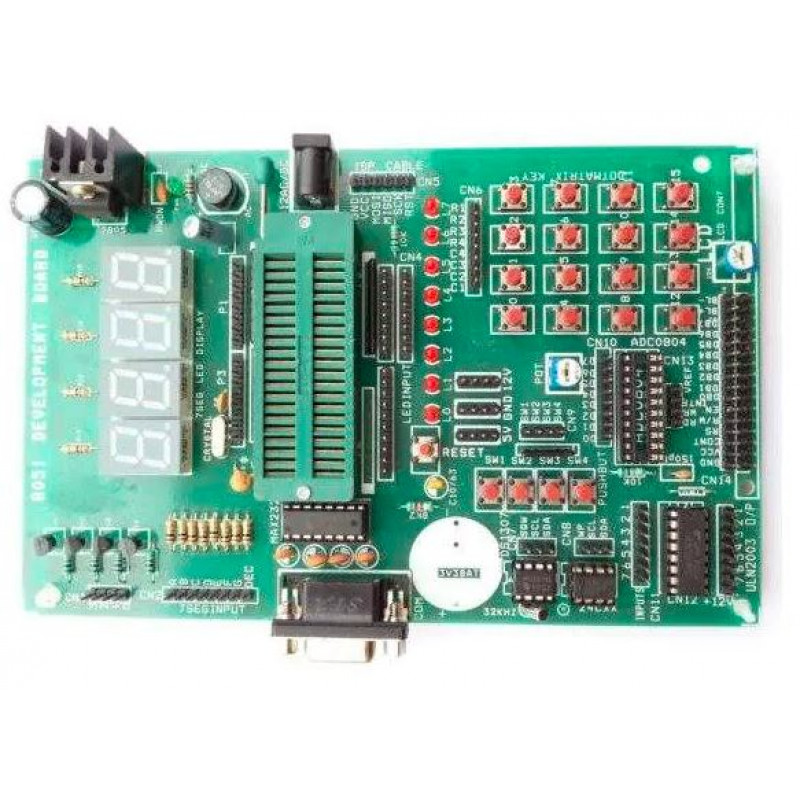

• 8051 Development Board

Introduction:

In this Board, You can use any 40 pin 8051 microcontroller for interfacing and developing your own prototype. This board also contains RS232 Driver for easy connection to PC or any other embedded hardware. Bridge Rectifier on board allows it to power with both AC and DC Power Supply Adaptors.

Features:

  • 8051 Development Board for Intel 8051 Architecture ( EX- 89C51)
  • 89v51RD2 Flasher through RS232 using Flash magic Software
  • On board Regulated Power Supply 5v,12v supply
  • Easy to test with Berg Connecting wires
  • A Serial Port for ISP
  • An RS232 Serial Port
  • 7 Segment Mulitplexed Display
  • DC Power Supply Connector(12v Ac or Dc)
  • Ready Interface For LCD display 2 linex16Character
  • 24Cxx I2C EEPROM
  • RTC DS1307
  • 8 LED array
  • Matrix Key Pad
  • 4 Interrupt Switches
  • Example Programs for LED,7seg,LCD,RS232 ,Matrix Key Pad, ADC
  • Easy To flash 89V51RD2 Through Flash Magic Software
  • FEATURES of 89V51RD2 - 8051 based CMOS controller with PCA, Dual DPTR,WDT,32 I/O lines, 3  Timers/Counters, 7 Interrupts/ 4 Priority Levels, 64K Bytes ISP FLASH, 256 Bytes on-chip RAM, 768 Bytes XRAM.


Package Contains:-

  • 8051 Development Board
  • CD containing required softwares, manual and sample programs.
  • Connectors
