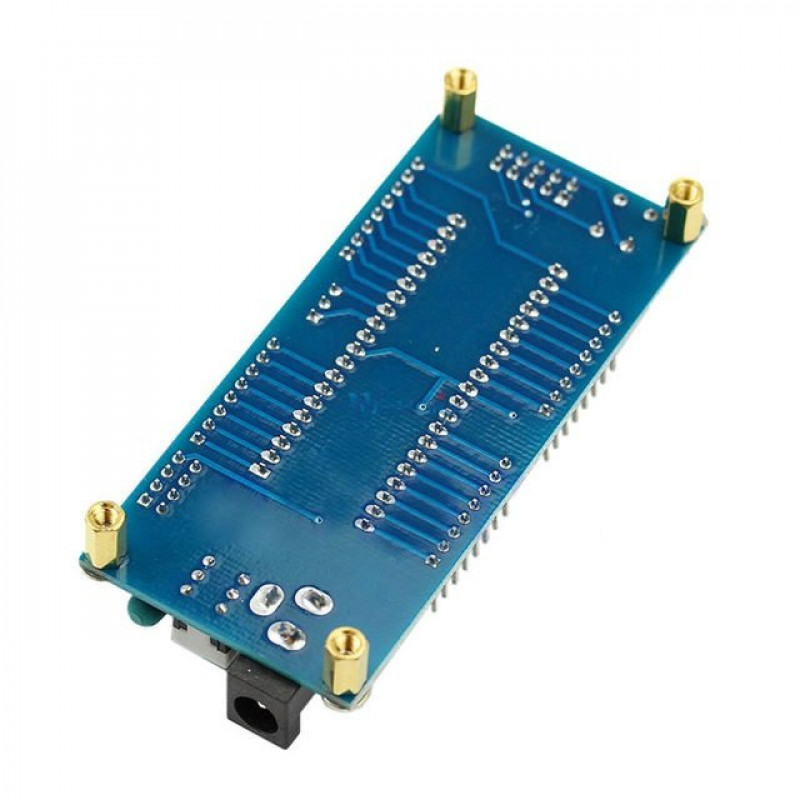

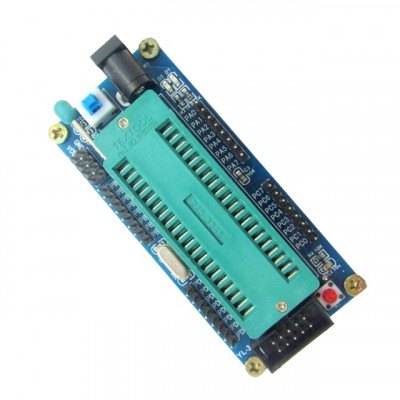

This is ATMEGA16 ATmega 32 ISP AVR Minimum Development System Board Module.

To get a personal Development Board will help to stimulate your intelligence and inspiration. A bare board may sometimes be more helpful than an assembled one for a learner. Come here and have a look at our AVR Minimum System Development Board ISP Atmega16 Atmega32.

Adopting top quality material and with advanced technique, this board is authentically reliable. No soldering and no assembling; you can DIY whatever circuit you prefer. It is really a good assistant during your development.

Note: This minimum system development board without AVR chip, you need purchase for the chip in additional!!!

Features :

  1. 32 I/O pin all the leads.
  2. Classic ATmega16 minimum system, eliminating the hassle of soldering.
  3. Crystal: The socket hole welding facilitates the buyer to replace the crystal, 8M crystal.
  4. Support chips: ATmega16/ATmega32 and chip which pin-compatible.
  5. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply)
  6. DC-005 Power Block (supporting the transposon is 5.5*2.1mm).
  7. Expand outside 4 channel VCC, GND.
  8. Reset: Power-on-reset and reset button.
  9. Power LED (D1) and the program run indicator (D2).
  10. Standard ISP download interface.

Package Includes :

1 xATMEGA16 ATmega32 AVR Minimum System Board



Specifications :-

Support Chips

ATmega16/ATmega32

Reset Button

YES

Length (mm)

90

Width (mm)

40

Height (mm)

14

Weight (gm)

46

Shipment Weight

0.05 kg

Shipment Dimensions

9 4 3 cm

Brand/Manufacturer
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 289.1 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

ATMEGA16 ATmega 32 ISP AVR Minimum Development System Board Module

  • Product Code: EC-7588
  • Availability: 42
  • Rs.209.00
  • (Excluding 18% GST)
