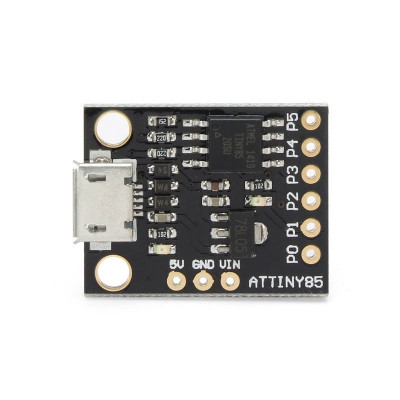

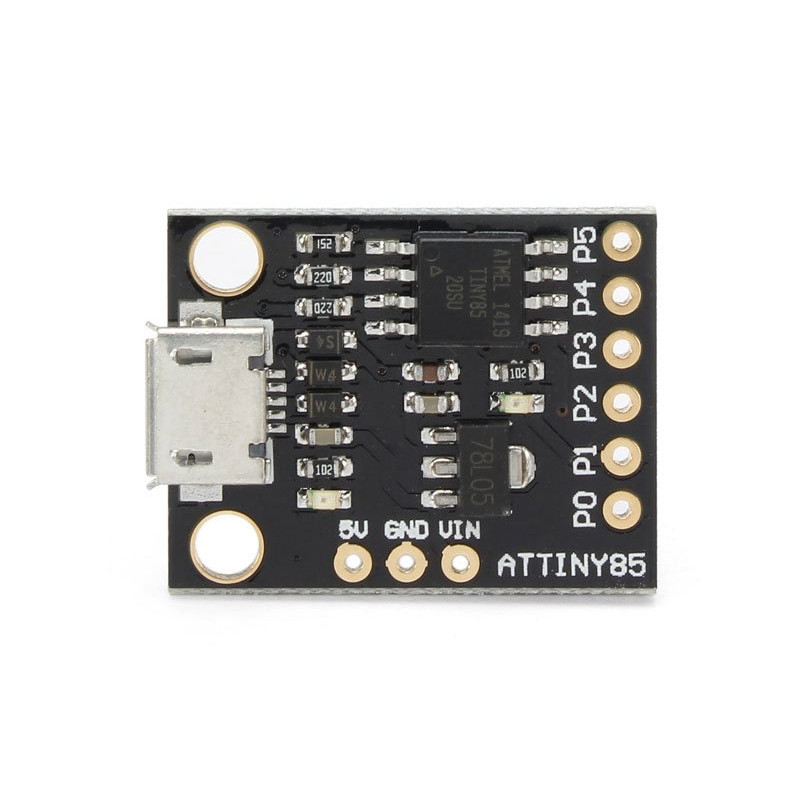

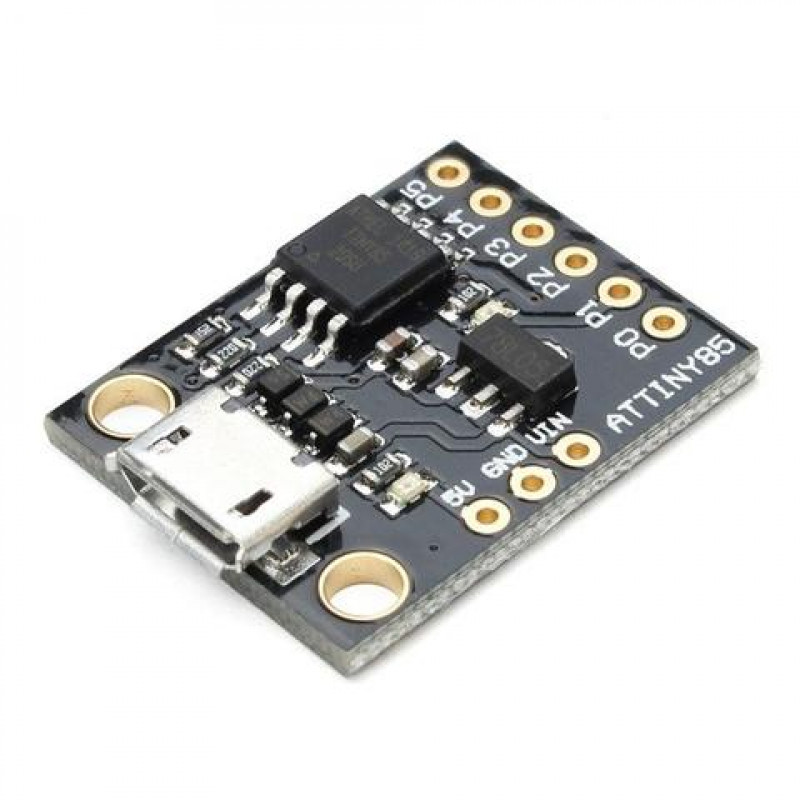

Although small in size, great in capabilities. The Digispark ATTINY85 Mini USB Development Board is similar to the Arduino but cheaper and smaller (of course a bit less powerful). With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this board is a great way to jump into microcontroller electronics.

Complete USB Development Board Cheap Enough to Leave in a Project. If you have never heard of the Digispark ATtiny board before, it may take you more than a moment to understand its full power and potential. So read this carefully:

Firstly, its a 20MHz, AVR 8-bit microcontroller with 8 KB flash, 512 bytes of RAM

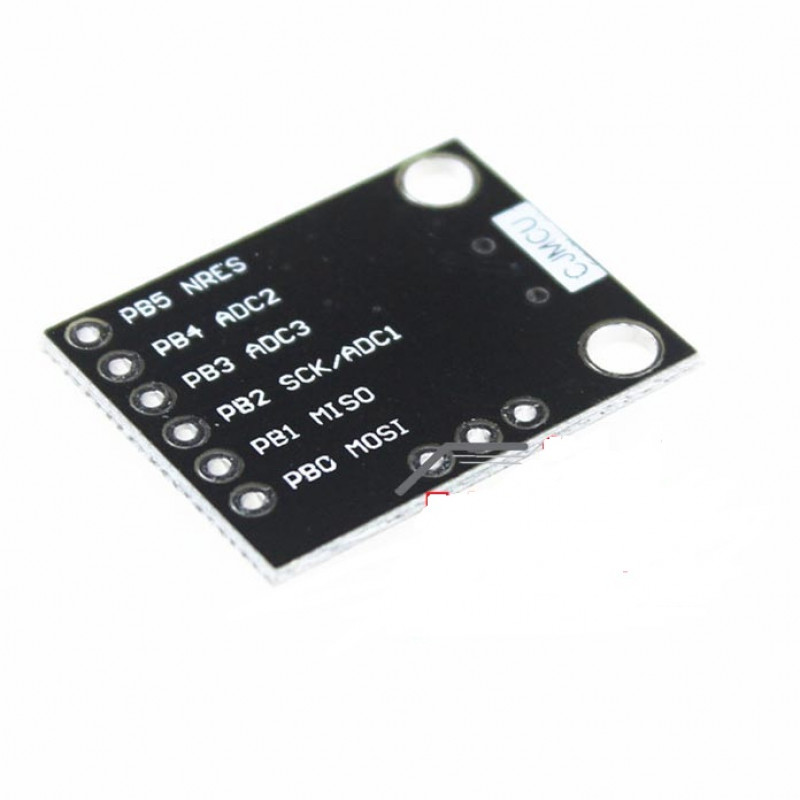

You get up to 5 GPIOs, 4 ADCs, 2 PWMs, 1 SPI, and 1 I2C[*]

Secondly, its fully compatible with Arduino

Thirdly, it can be directly programmed via USB without needing any other programmer!

And finally, it is available at a cheap price!!

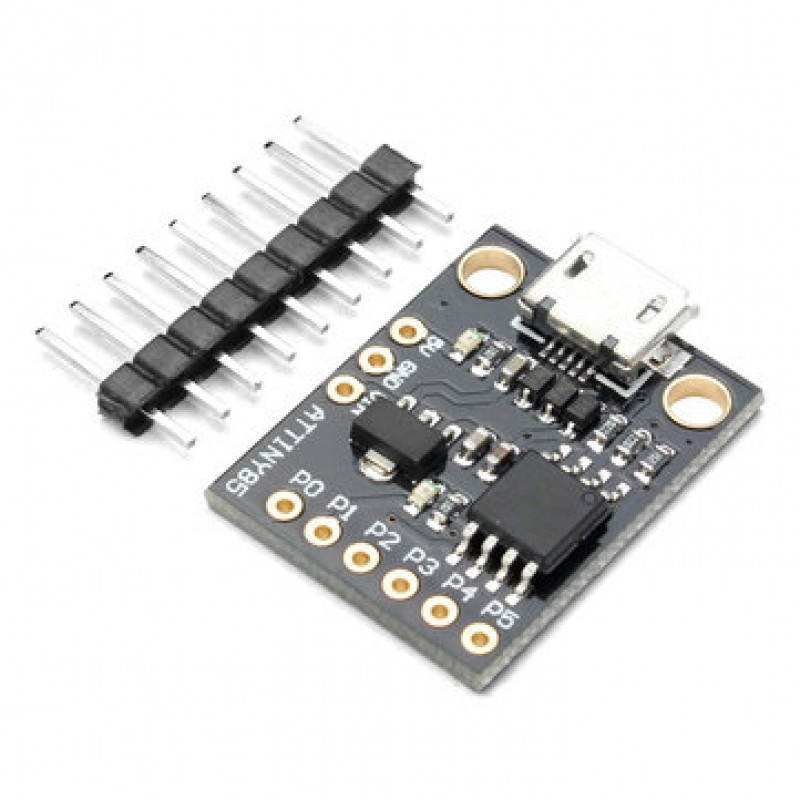

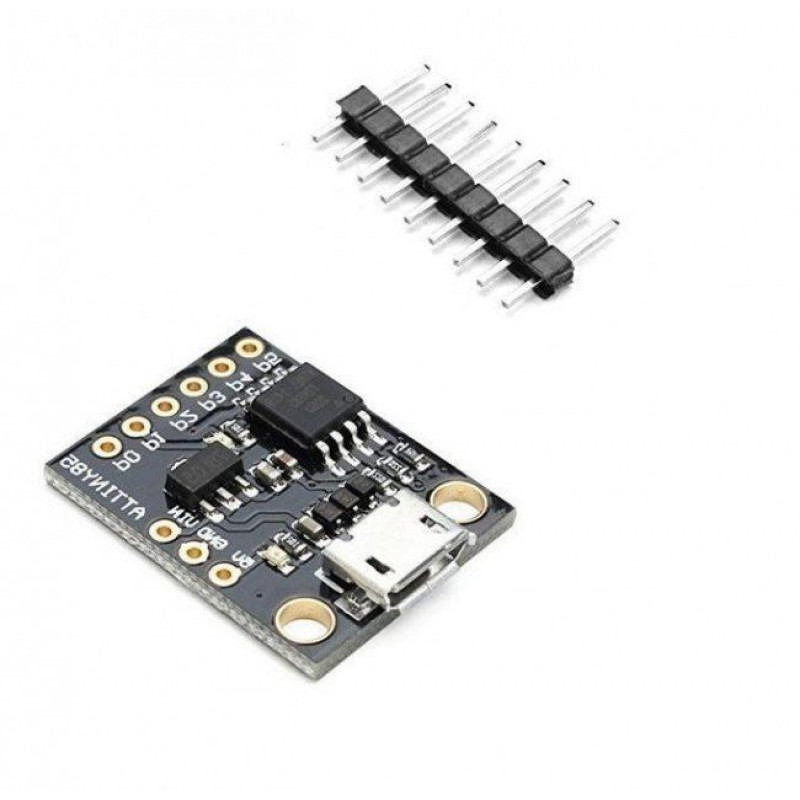

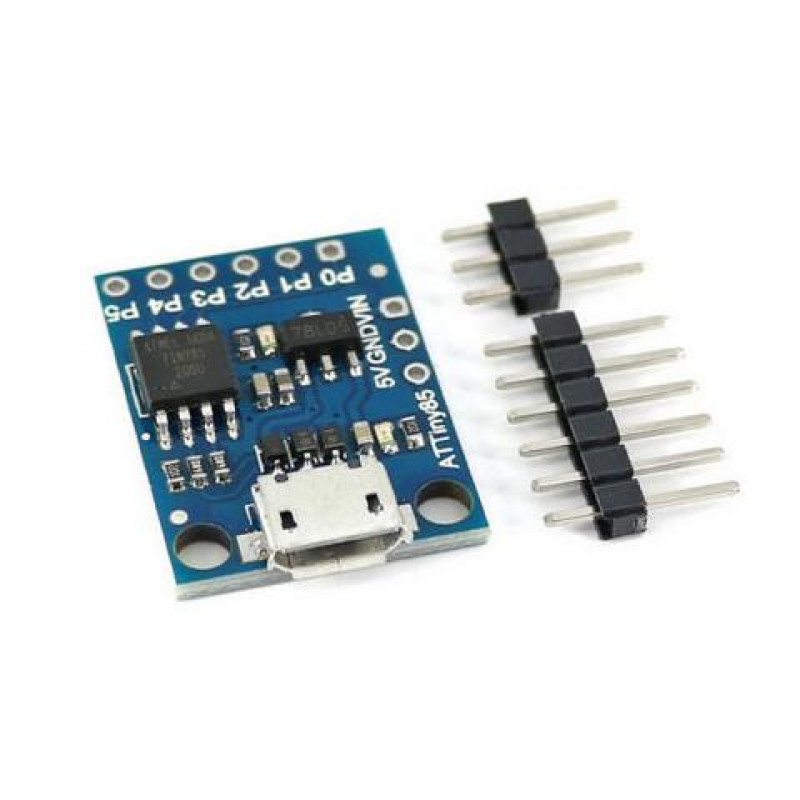

The Digispark is shipped fully assembled except for the two included and easy to solder headers.

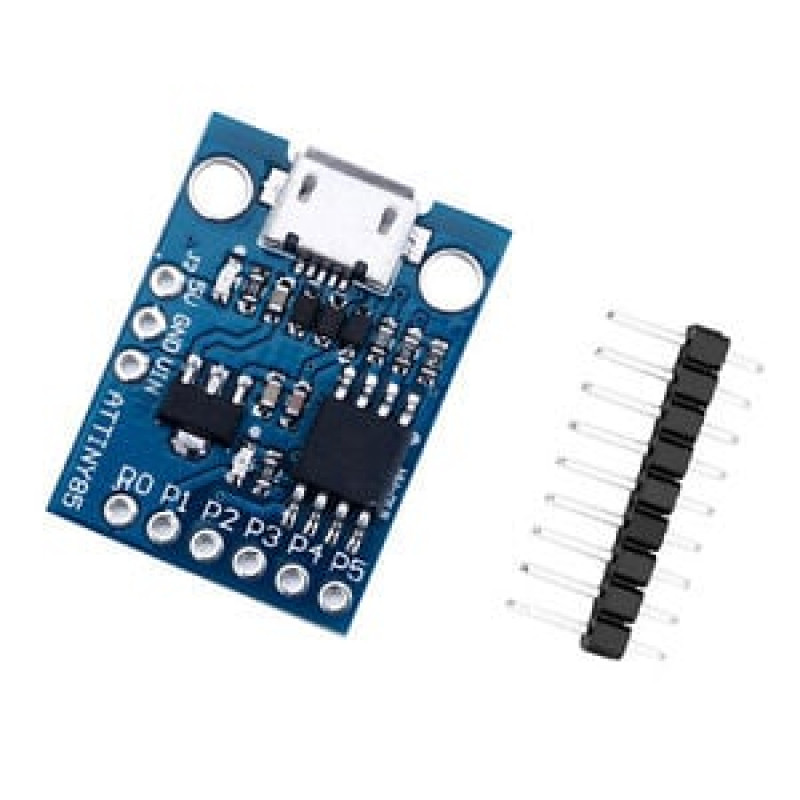

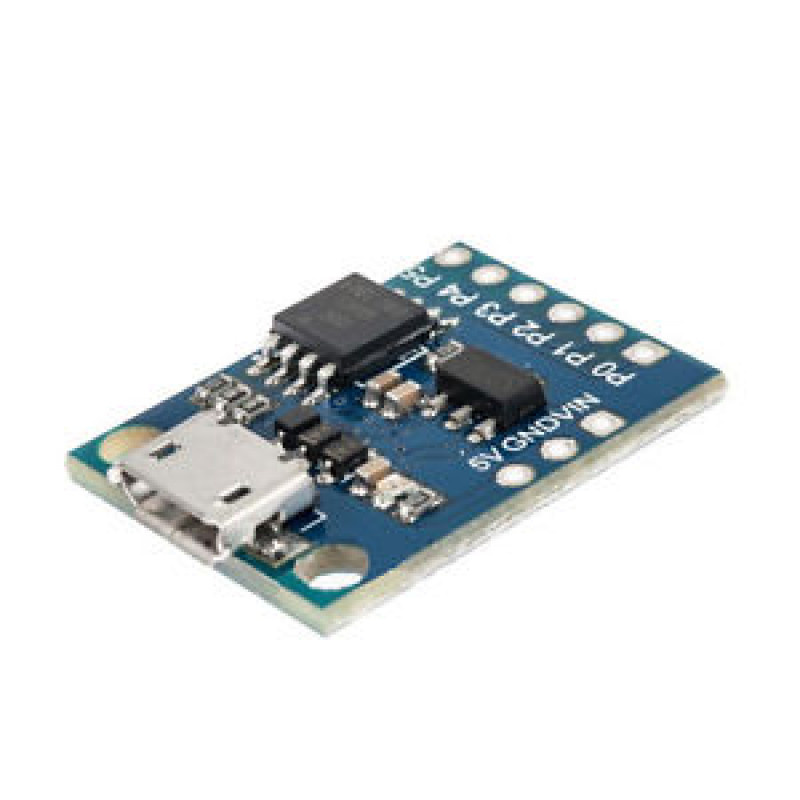

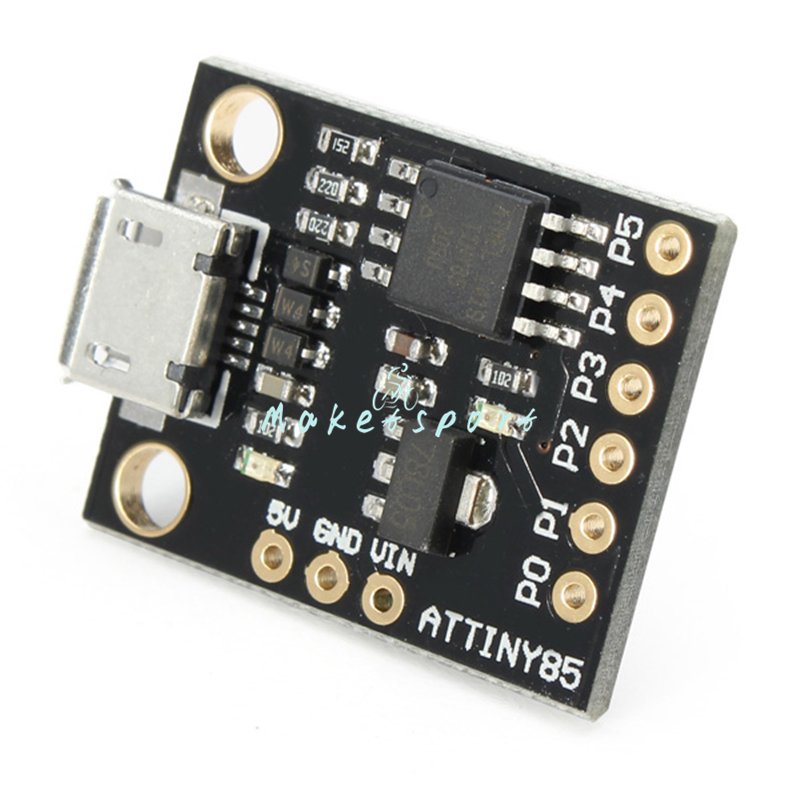

Note: The Board is available in Black and Blue color we will ship it Randomly


Features:

  1. High Performance, Low Power AVR 8-Bit Microcontroller
  2. Non-volatile Program and Data Memories
  3. 8K Bytes of In-System Programmable Program Memory Flash
  4. Endurance: 10,000 Write/Erase Cycles
  5. 512 Bytes In-System Programmable EEPROM
  6. 512 Bytes Internal SRAM
  7. Peripheral Features
  8. Two High-Frequency PWM Outputs with Separate Output Compare Registers
  9. USI Universal Serial Interface (12C, SPI, 1-wire) with Start Condition Detector
  10. 10-bit ADC
  11. 4 Single Ended Channels
  12. Two Differential ADC Channel Pairs with Programmable Gain (1x, 20x)
  13. Speed Grade
  14. 0 10 MHz @ 2.7 5.5V, 0 20 MHz @ 4.5 5.5V
  15. Industrial Temperature Range
  16. Low Power Consumption
  17. Active Mode:1 MHz, 1.8V: 300 A


Package Includes :

1 x Digispark ATTINY85 Mini USB Development Board

1 x Berg Pin


Specifications :-

Length (mm)

21

Width (mm)

18

Height (mm)

4

Weight (gm)

4




Brand/Manufacturer
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 411.82 (Inclusive of all Taxes)
