WT32-SC01 is an ESP32 Development board with a 3.5-inch colour touch screen. The touch screen enables a new way of interacting with the ESP32. The board is equipped with a graphical user interface (GUI) firmware, which supports graphical drag-and-drop programming and helps users develop a customized control platform.

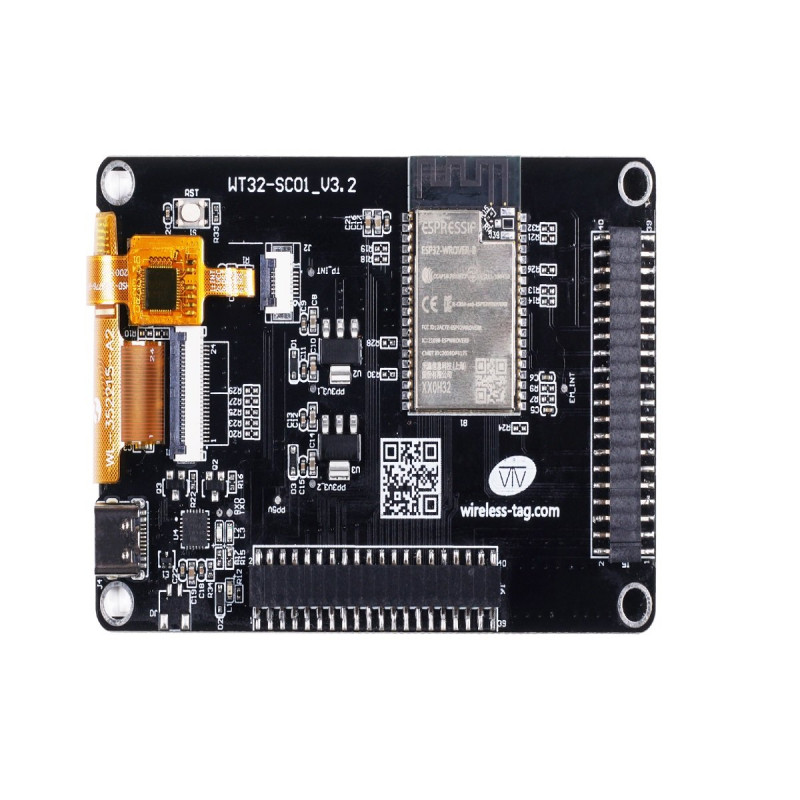

WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI Flash and 8MB PSRAM.
By using the expansion interfaces on both sides of the development board, developers can customize the use of functions such as button operation, voice control, and camera operation, which greatly shortens the users development cycle.
Features:
- Highly integrated ESP32-WROVER-B module with low power consumption
- 3.5-inch 320480 capacitive 2-point multi-touch screen for easy interactions
- Easy to program using the graphical drag-and-drop programming
- Wireless connectivity with Wi-Fi and BLE
- Customize functions such as button operation, voice control, and camera operation through the expansion interfaces
Specification:
- SoC ESP32-WROVER-B module
- CPU Dual-core Xtensa@ 32-bit LX6 MCU
- Connectivity 802.11 b/g/n 2.4GHz Wi-Fi
- Bluetooth v4.2 BR/EDR and Bluetooth LE standards
- Display 3.5 inches, LCD @320480
- Capacitive with 2-point multitouch
- Power Supply DC 5V/2A. 5V/1A
- Operating Temperature -20 to +85 C
Package Includes :
1 x ESP32 Development board WT32-SC01
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 5426.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

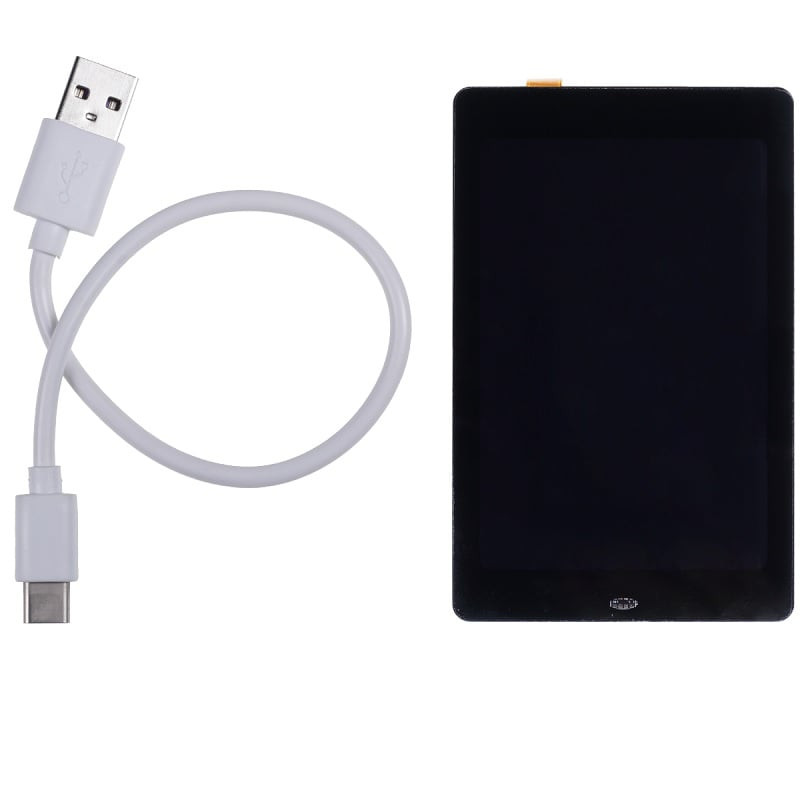

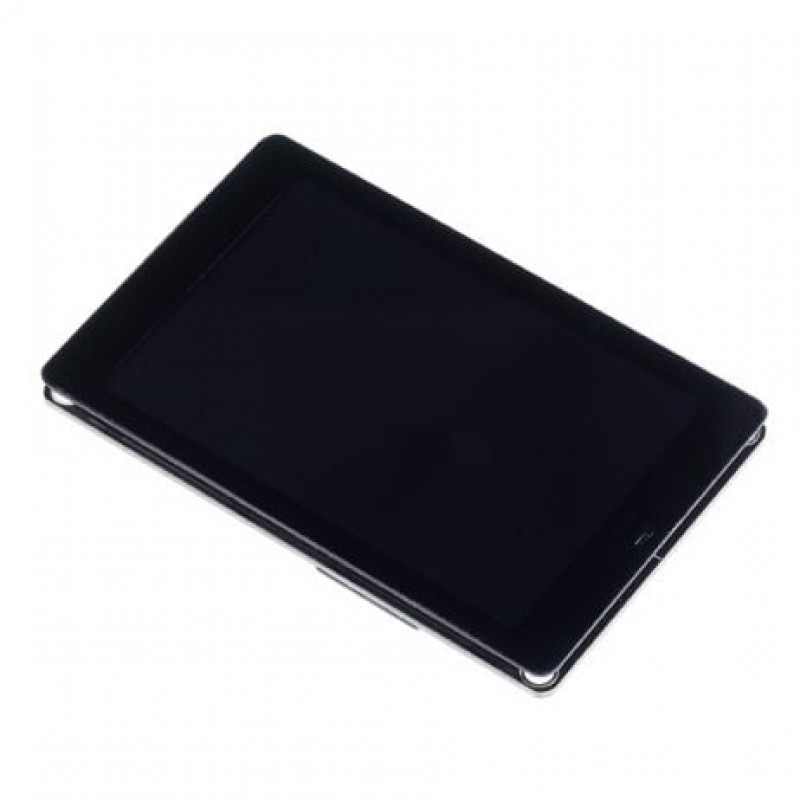

ESP32 Development board WT32-SC01
- Product Code: EC-9312
- Availability: Out Of Stock
-
Rs.4801.00
- (Excluding 18% GST)
