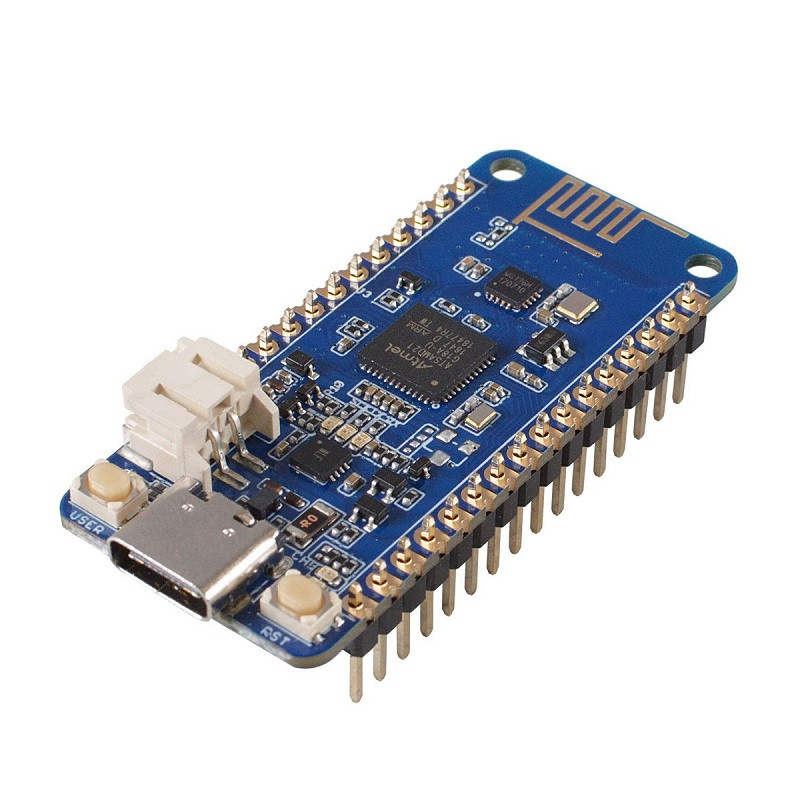

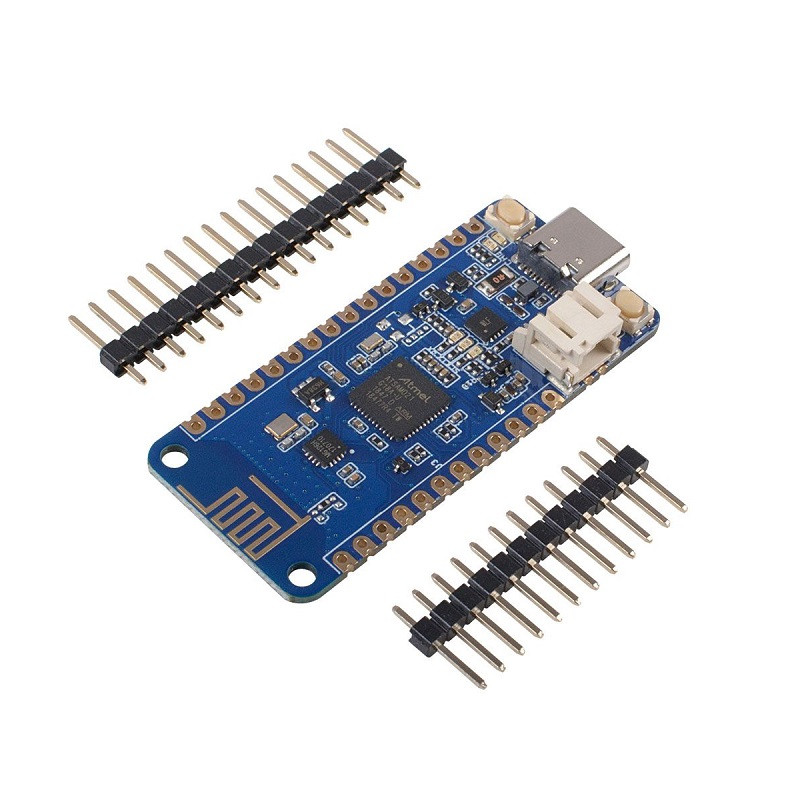

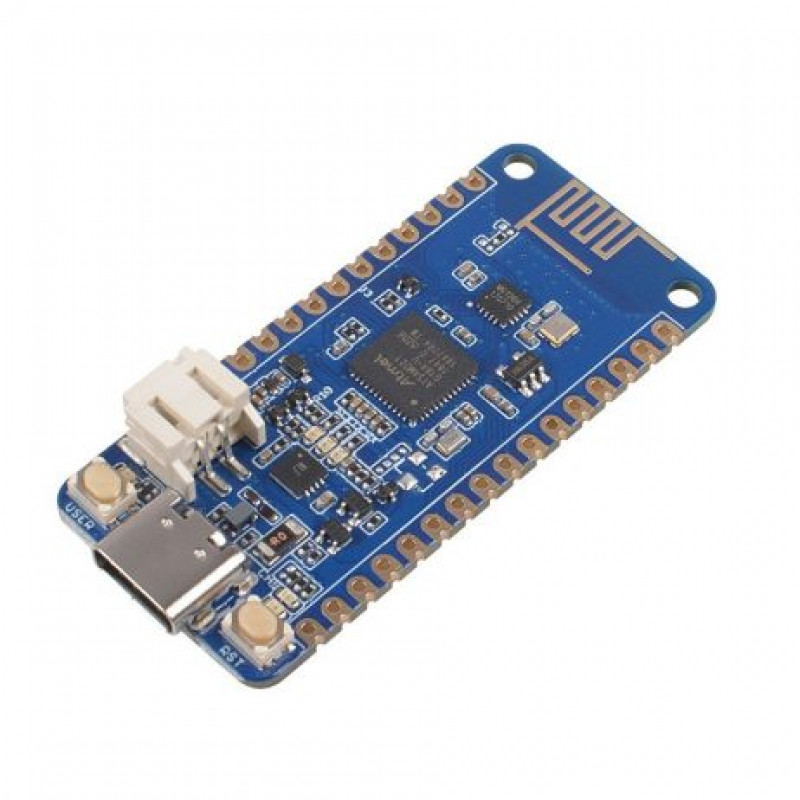

Wio Lite MG126 is a cost-effective SAMD21 based development board with the onboard MG126 Bluetooth Module. SAM D21 is an ARM Cortex-M0+ based microcontroller and the MG126 is a 2.4GHz single-mode Bluetooth transceiver module. The same with Wio Lite W600, this board is also compatible with Arduino zero( Used the same Arduino Core SAM D21) and has the same compatible form factor with the Adafruit Feather series.

We break out the 3.3V I/O pins of SAM D21, SAM D21 chip has rich I / O resources, including 14 digital pins, 6 analog pins, 1 UART port, 1 I2C port, and 1 ICSP port. More and more boards in Seeed use type C interfaces to supply power and transmit data, so does the Wio Lite MG126. Meanwhile, there is a JST2.0 Li-Po battery port, you can use a 3.5V or 4.2V Li-Po battery to power this board.

Now, lets talk about the Bluetooth Core, the MG126. MG126 is a 2.4GHz BLE RF transceiver with software configurable registers, embedded packet handling engine. It can work with ultra-low power. The Bluetooth air data rate of MG126 is 1Mbps and MG126 can talk with Arduino core at the speed of 4Mbps via the SPI interface.


Features:

  1. Arduino Zero Compatible/ Adafruit Feather Compatible
  2. 2.4GHz ISM band operation with 2MHz channel spacing
  3. 1Mbps air data rate
  4. Ultra-low-power


Specification:

  1. Microcontroller SAM D21
  2. Digital I/O Pins 14
  3. Analog Input Channels 6
  4. DC Current per I/O Pin 40 mA
  5. IO Input Voltage 3.3 V
  6. SRAM 32 KB
  7. Flash 256 KB
  8. Maximum CPU Frequency 48 MHz
  9. Bluetooth Core MG126
  10. Frequency Band 2.4GHz ISM
  11. Data Rate 1Mbps air data rate
  12. Communication with MCU SPI (Max. 4Mbps)
  13. Transmitter Programmable output power: -28 ~ +4 dBm without an external RF PA 20mA at 0dBm output power
  14. Receiver Integrated channel filters-85 dBm sensitivity Programmable LNA gain
  15. Antenna On-board PCB antenna
  16. Max. Bluetooth Connect Distance 10 m


Package Includes :

1 x Wio Lite MG126
