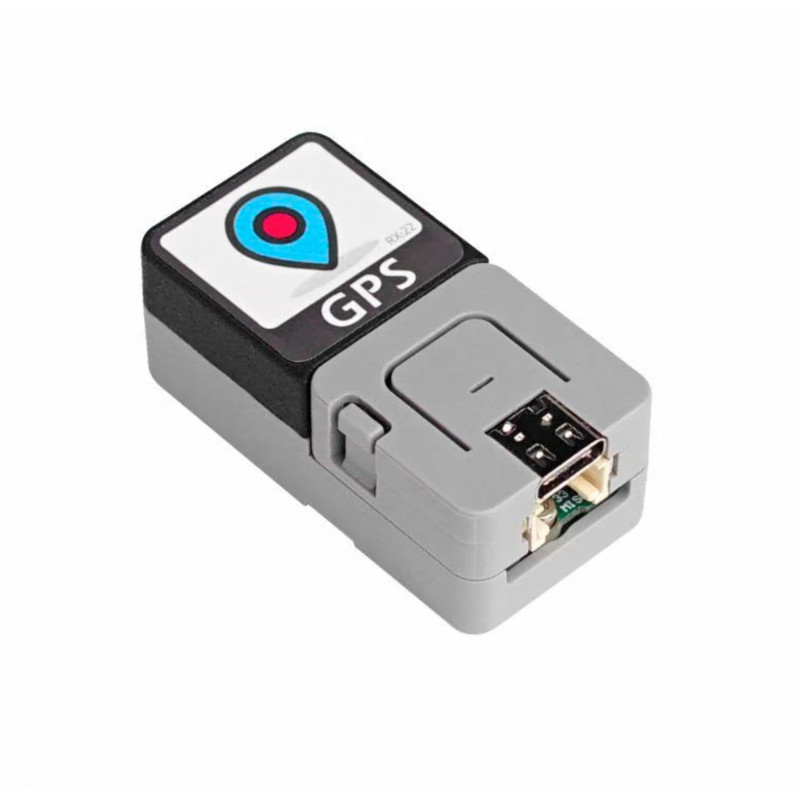

ATOM GPS is a GPS positioning module that is part of the M5 atomic series. The navigation chip is m8030-kt, which has a built-in flash and a coin cell battery, which can save the users configuration. It adopts NMEA-0183 protocol output, supports GPS, GLONASS, Galileo, BDS, SBAS, and QZSS satellite systems, has 72 search channels, an adjustable refresh rate, and can be widely used in vehicle monitoring such as bus stop reporting, vehicle navigation, ship navigation, track tracking, and other applications. In addition, a self-elastic TF(MicroSD) card slot is built-in. It is possible to read and write GPS and other file data, for example, you could export GPS data in a specific format to view the motion tracking in the map software or read and write files as a common card reader.

UART Parameter setting:

• Baud rate(default: 9600bps)
• Start bit(1 bit)
• Stop bit(1 bit)
• Check bit(None)

Applications:

1. Vehicle and ship positioning and navigation
2. Track record
3. File reading and writing

Features:

1. Compatible with Atom Matrix/Atom Lite
2. High signal acquisition sensitivity
3. Support single system positioning of BDS / GPS / GLONASS / Galileo / SBAS / QZSS multiple satellite navigation systems

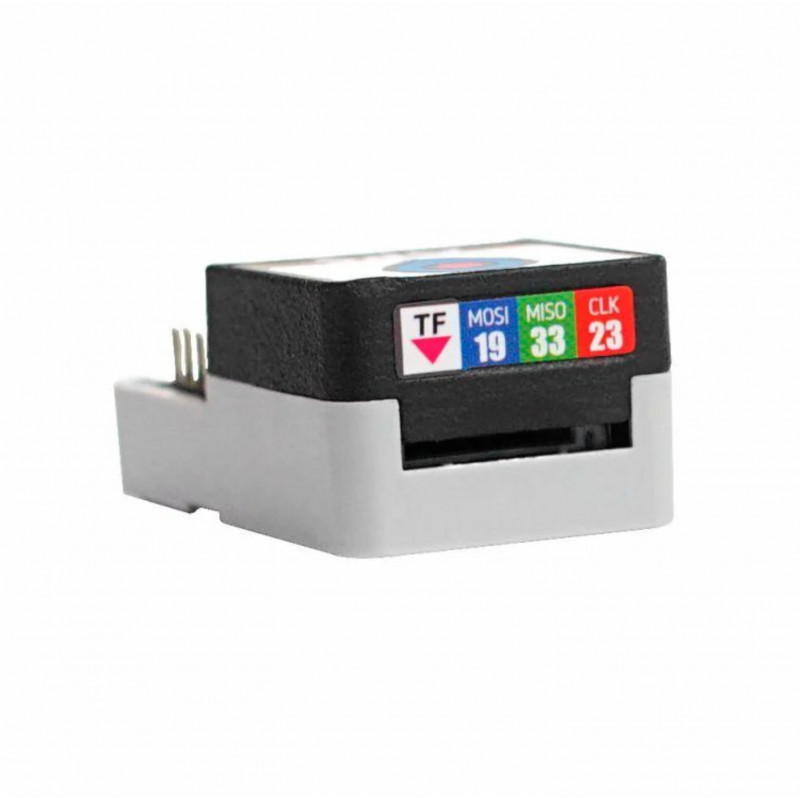

4. Built-in self elastic TF (microSD) card slot
5. Low power

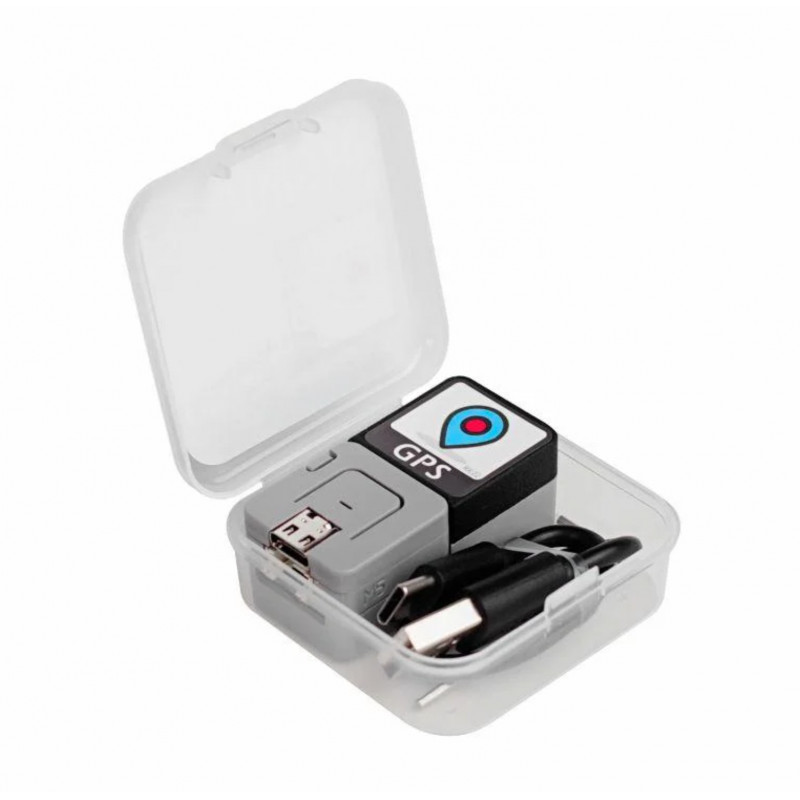

Package Includes:

1. 1x ATOM GPS
2. 1x ATOM Lite
3. 1x Hex Key
4. 1x M2*3mm Hexagon self-tapping screw

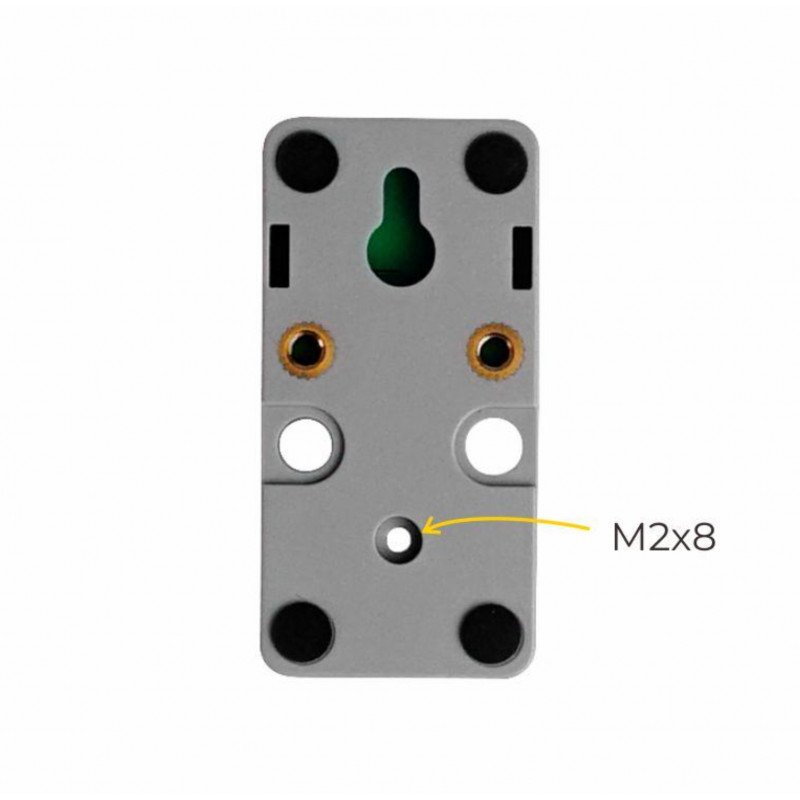

5. 1x M2*8mm Hexagon socket cup head machine screw
6. 1x 18cm TYPE-C Cable

Specifications :-

Accuracy	Horizontal: 2m, Speed: 0.1m/s, Time: 1us
Channel	72 search channel
Update Frequency	1-10Hz
Maximum Height	50000m
Maximum Speed	515m/s
Acceleration (g)	<4
Sensitivity (dBm)	Trace: 167dbm, capture: 160dBm, cold start: 148dbm, hot start: 156dbm
Baud Rate	9600bps
Output Protocol	NMEA-0183
Flash Memory	4 MB
Length (mm)	24
Width (mm)	48
Height (mm)	18
Weight (gm)	28
