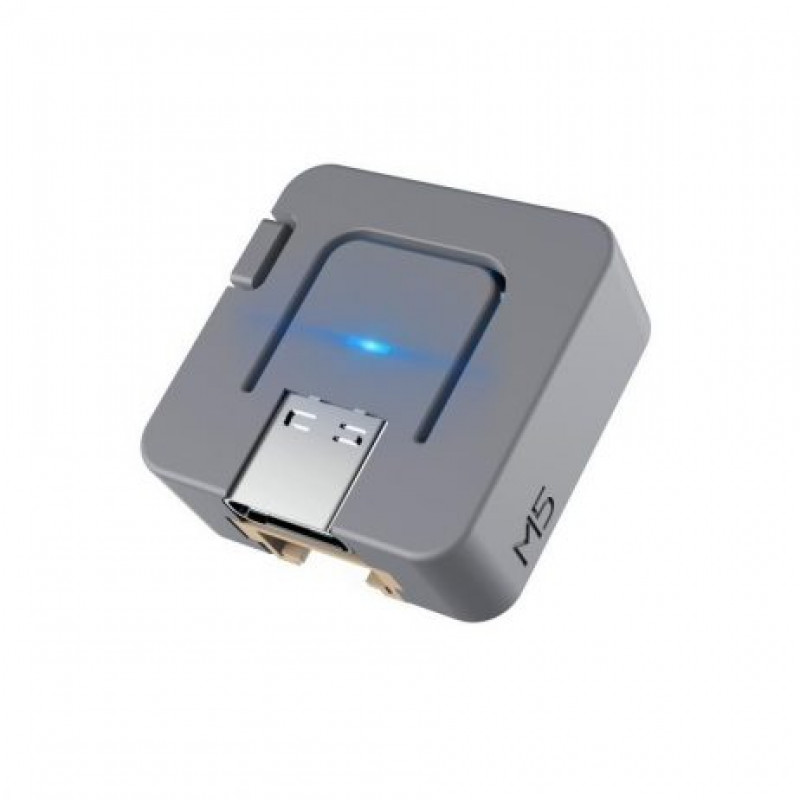

Atom Lite, which has a size of only 24*24mm, is a very compact development board in the M5Stack development kit series. It provides more GPIOs for user customization which is very suitable for embedded smart home devices and in making smart toys.

The main control adopts the ESP32-PICO chip which comes integrated with Wi-Fi and Bluetooth technologies and has a 4MB of integrated SPI flash memory. Atom Lite board provides an Infra-Red LED, an RGB LED, buttons, and a YH2.0 interface. In addition, it can connect to external sensors and actuators through 6 GPIOs. The on-board Type-C USB interface enables rapid program upload and execution.


Applications:
  1. Internet of things terminal controller
  2. IoT node
  3. Wearable peripherals

Features:

  1. ESP32-based
  2. RGB LED
  3. Programmable button
  4. Built-in Infra-red
  5. Extendable Pins & Holes
  6. Program Platform: Arduino, UIFlow

Package Includes:

1 x ATOM Lite ESP32 Development Kit



Specifications :-

Processor

ESP32 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth

Flash Memory

4 MB

Operating Voltage (VDC)

5

Operating Current (A)

0.5

Interface

GROVE(I2C+I/0+UART) x 1
TypeC x 1

PIN Port

G19, G21G22G23G25, G33

RGB LED

WS2812B x 1

Operating Temperature (C)

0 to 40

Length (mm)

24

Width (mm)

24

Height (mm)

10

Weight (gm)

12




Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 966.42 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

M5 Stack ATOM Lite ESP32 Development Kit

  • Product Code: EC-8268
  • Availability: 7
  • Rs.946.00
  • (Excluding 18% GST)
