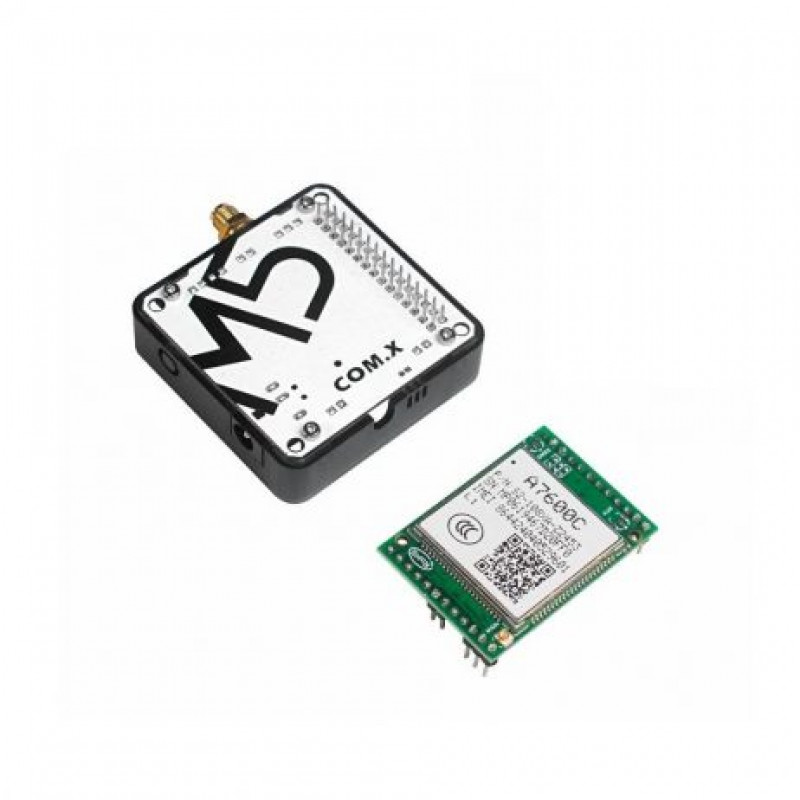

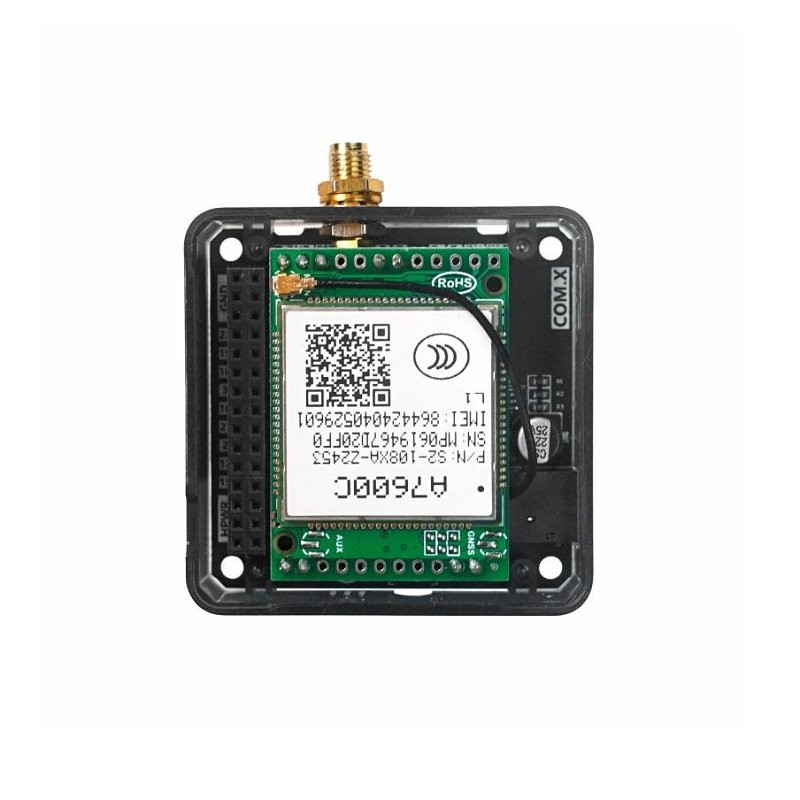

COM.LTE-DATA is a stackable multifunctional LTE communication module with built-in LTE communication module A7600C, supporting LTE-TDD/LTE-FDD/EDGE/GPRS and GSM frequency bands, and the transmission rate is LTE.CAT1 standard. Its performance is stable, the appearance is small and well designed, the cost performance is high, and can transmit data with low power consumption. The module has a DC power input and can provide a 5V-12V power supply through an external power supply. In order to facilitate the user to configure the pin, the DIP switch is used to set the pin. This module is especially suitable for remote meter reading, smartphones, smart wearables, smart parking, municipal management, and other IoT industries with low power consumption and compact size as the core requirements.

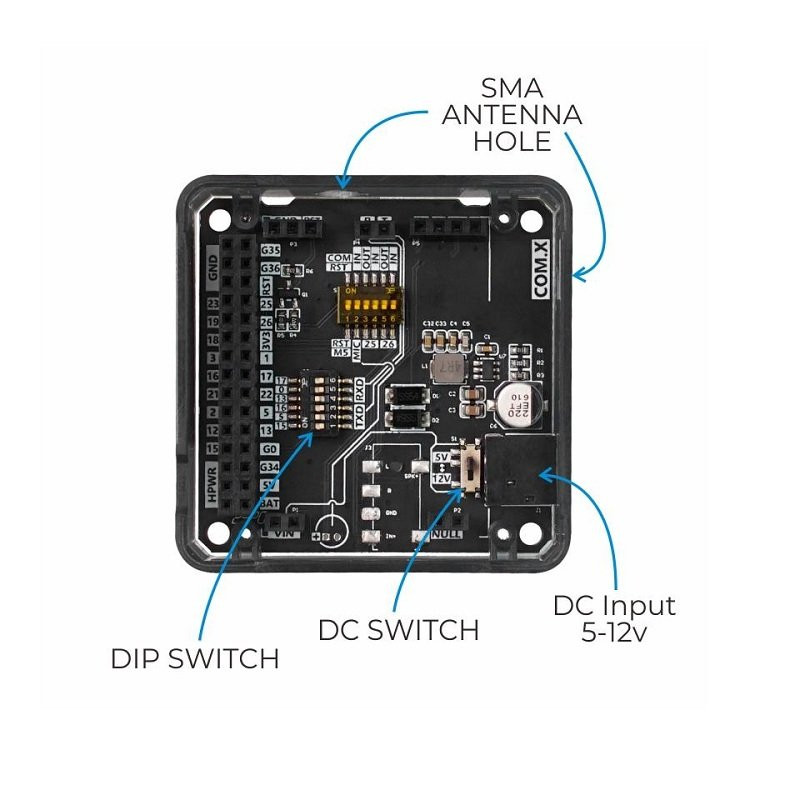

COM.LTE-DATA RXD/TXD can be connected to M5Stacks UART (TX(0/13/17)RX(5/15/16)) by setting the DIP switch, GPIO in M5Stack Fire16/17 It is connected to PSRAM by default. It is recommended to use any one of the remaining two groups of pins.

Dial the DIP switch on the side of the audio configuration pin to ON when in use

Applications:

1. Smart meter
2. Smart parking
3. Municipal management

Features:

1. Stackable design
2. Independent external power supply
3. AT command control
4. SIM card type: MicroSIM
5. Status signal: two LED indicators
6. External antenna: SMA antenna
7. Serial communication: UART 115200bps

Package Includes:

1 x COM.LTE Data Module(A7600C)

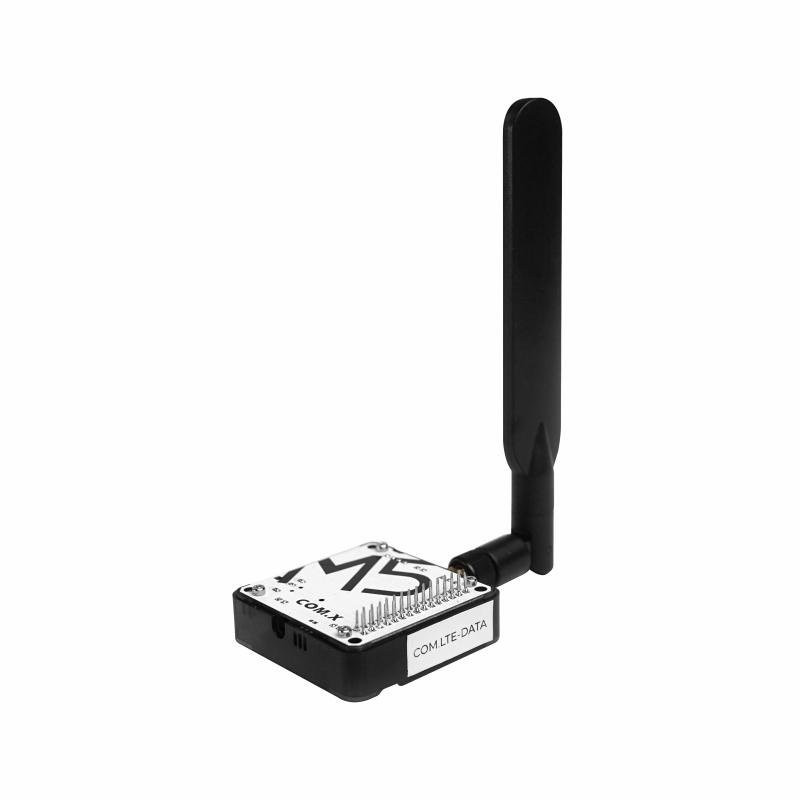

1 x SMA Antenna

Specifications :-

Frequency Band	LTE-FDD/LTE-TDD/WCDMA/GSM
Network Protocol	TTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS etc.
SIM Card Type	Micro SIM
Communication	UART 115200bps
Length (mm)	55
Width (mm)	55
Height (mm)	14
Weight (gm)	83
