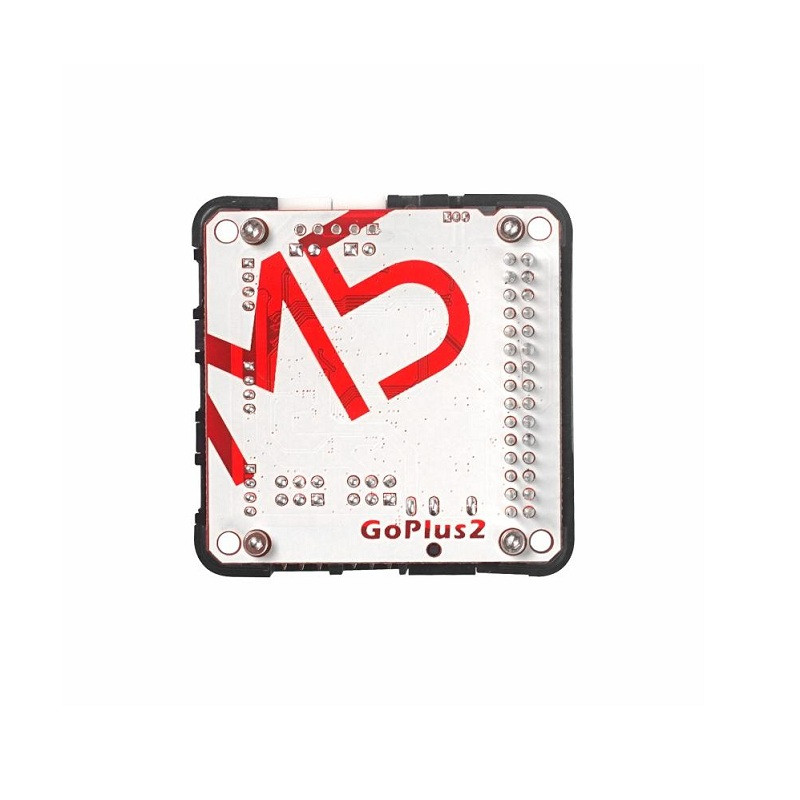

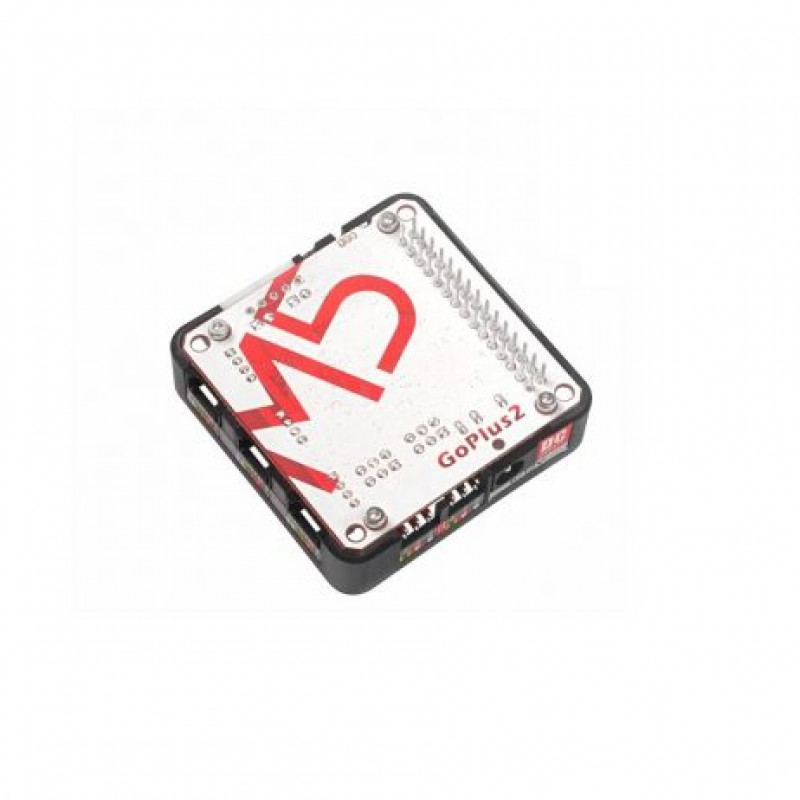

GoPlus2 is a stackable multi-functional motor and servo control module. The master control adopts STM32F030C8T6. The module is equipped with a 2-way DC motor drive interface and a 4-way servo drive interface. Three PORT-B interfaces(Analog Input, Digital Output, Digital Input) can be expanded.

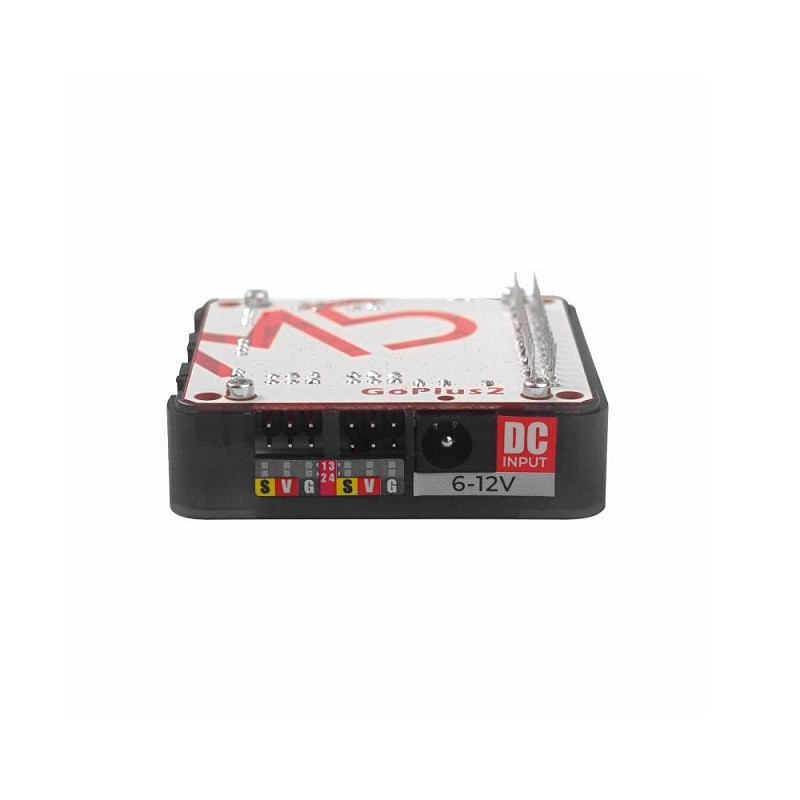

M5 Go Plus 2 comes with a built-in 500mAh battery and support infrared (IR) transmission and reception. In order to meet the requirements of the multi-channel interface power supply at the same time, a DC power interface is provided for the external power supply, the battery can be charged through the M5Core with USB-C.
Application:
- Actuator/motor driver
- Acquisition and control of multiple input and output signals
- Infrared controller
- DIY Toy base
Features:

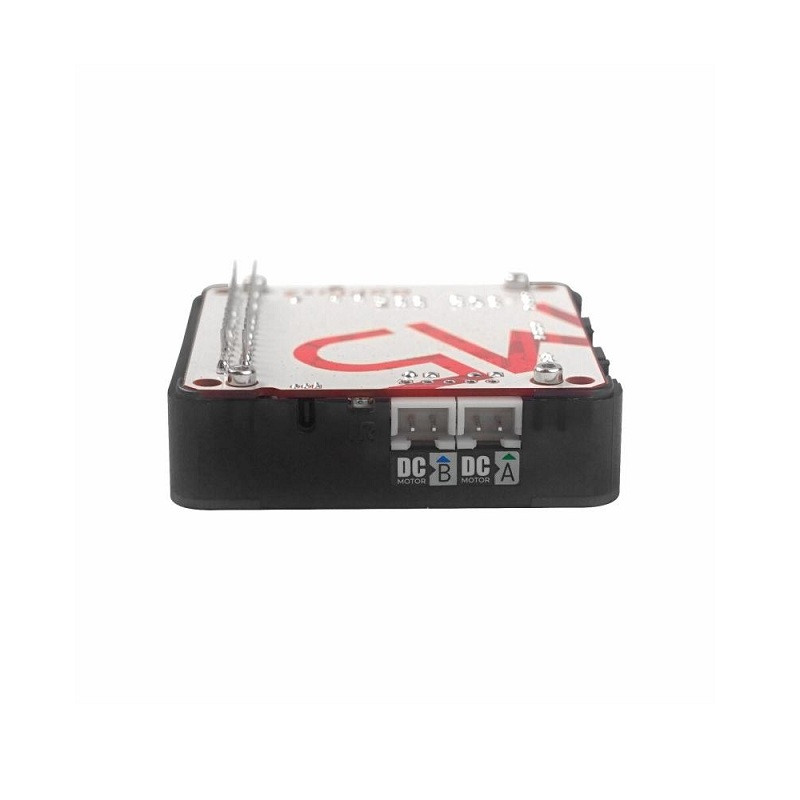

- Dual DC motor interface
- Four Servo interface
- IR transmit & receive

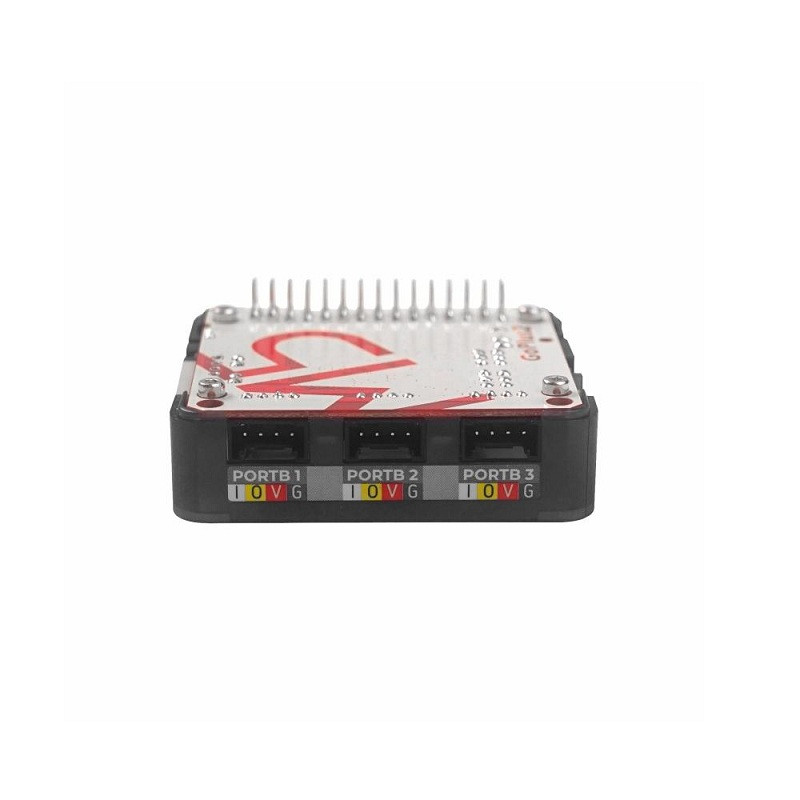

- Three expand PORT B
- Based On STM32F030C8T6

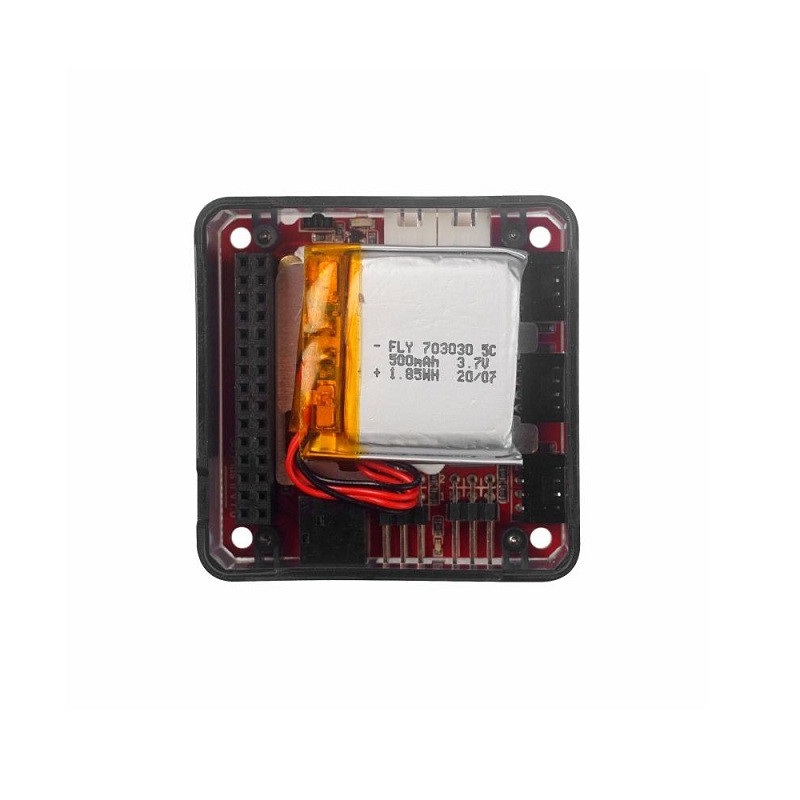

- Built-in 500mAh battery

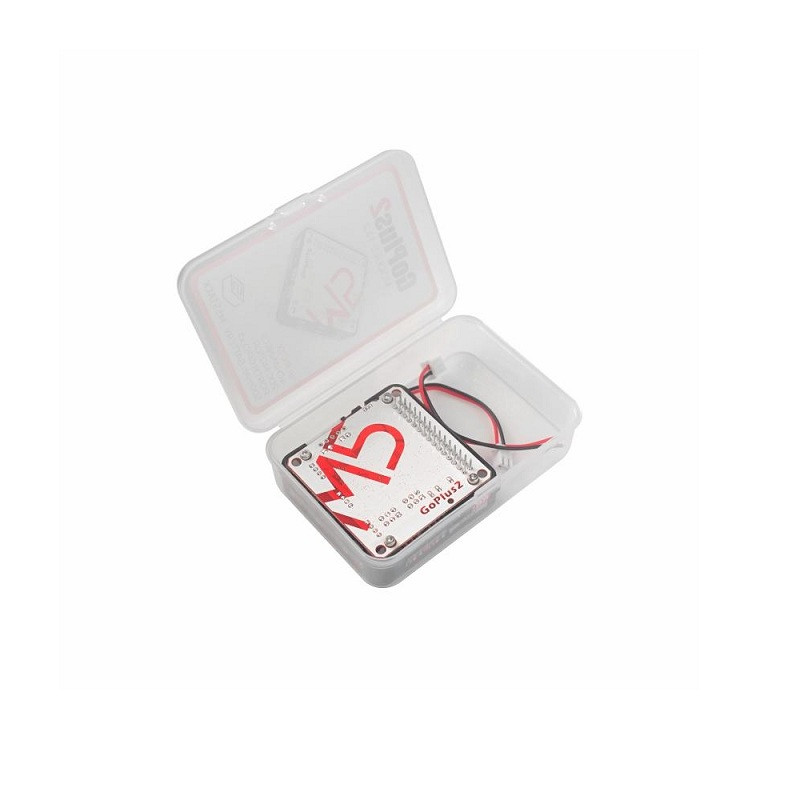

Package Includes:
1x GoPlus2 Module
2x DC Motor Cable
Specifications :-
| Motor Driver IC | HR8833 H-bridge drive |
| Expand Interface | DC Motor x 2 |
| Battery | Lithium Battery 500mAH |
| Length (mm) | 54 |
| Width (mm) | 54 |
| Height (mm) | 13 |
| Weight (gm) | 38 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1320.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
M5 Stack Goplus2 DC Motor and Servo Driver Module (STM32F0)
- Product Code: EC-8264
- Availability: 6
-
Rs.1146.00
- (Excluding 18% GST)
