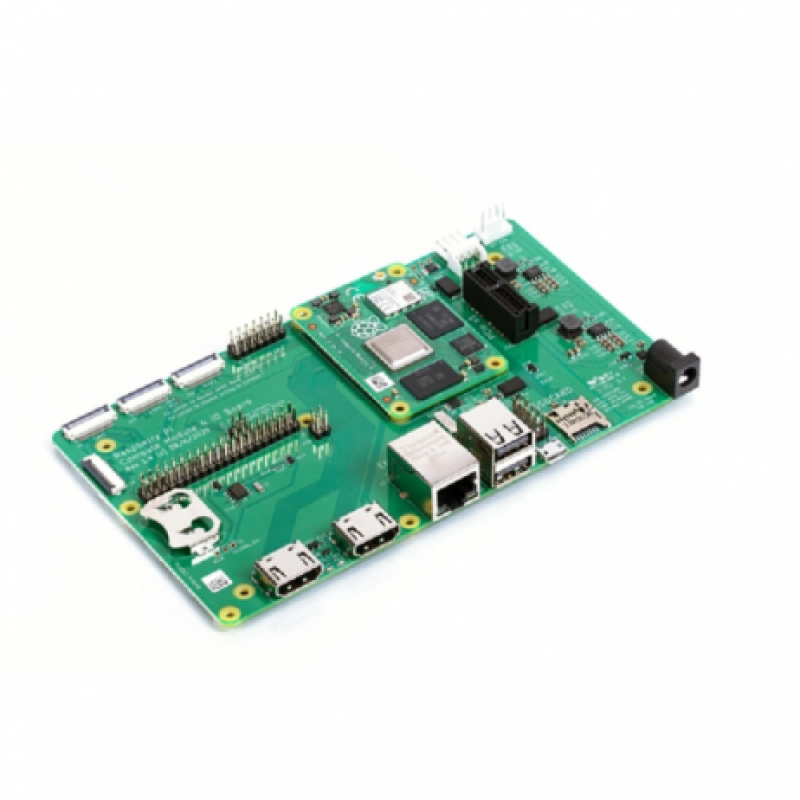

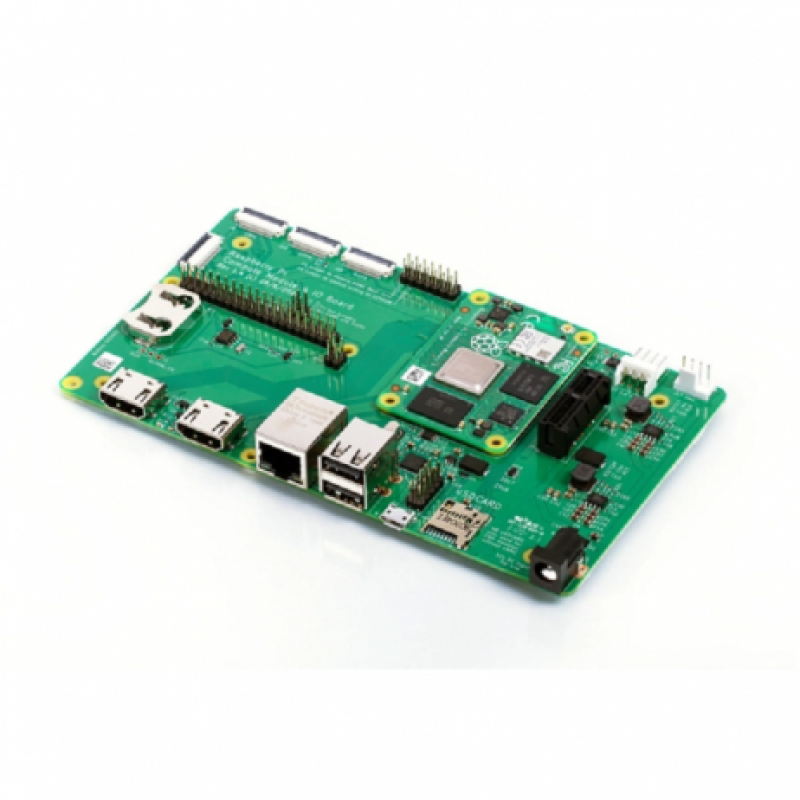

The Compute Module 4 IO Board is a companion board for Raspberry Pi Compute Module 4 (supplied separately). It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products.
The IO board is designed to allow you to create systems quickly using off-the-shelf parts such as HATs and PCIe cards, which might include NVMe, SATA, networking, or USB. The major user connectors are located along one side to make enclosures simple

The Raspberry Pi Compute Module 4 IO Board has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance.


Features:

  1. CM4 socket: suitable for all variants of Compute Module 4
  2. Standard Raspberry Pi HAT connectors with PoE support
  3. Standard PCIe Gen 2 x1 socket
  4. Real-time clock (RTC) with battery backup
  5. Dual HDMI connectors
  6. Dual MIPI camera connectors
  7. Dual MIPI display connectors
  8. Gigabit Ethernet socket supporting PoE HAT
  9. On-board USB 2.0 hub with 2 USB 2.0 connectors
  10. SD card socket for Compute Module 4 variants without eMMC
  11. Support for programming eMMC variants of Compute Module 4
  12. PWM fan controller with tachometer feedback

Package Includes:

1 x Raspberry Pi Compute Module 4 I/O Board


Specifications :-

Model

Raspberry Pi Compute Module 4 I/O Board

Input Supply Voltage (VDC)

12

Length (mm)

160

Width (mm)

90


Brand/Manufacturer Raspberry Pi
Country Of Origin UK
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3715.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Raspberry Pi Compute Module 4 I/O Board

  • Product Code: EC-5361
  • Availability: 17
  • Rs.3439.00
  • (Excluding 18% GST)
