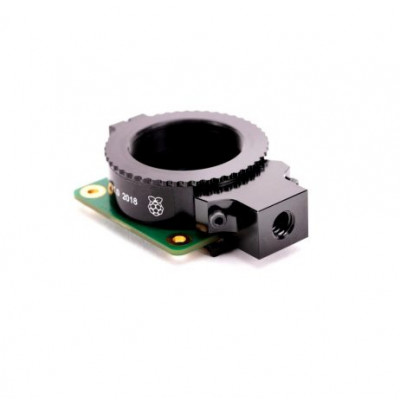

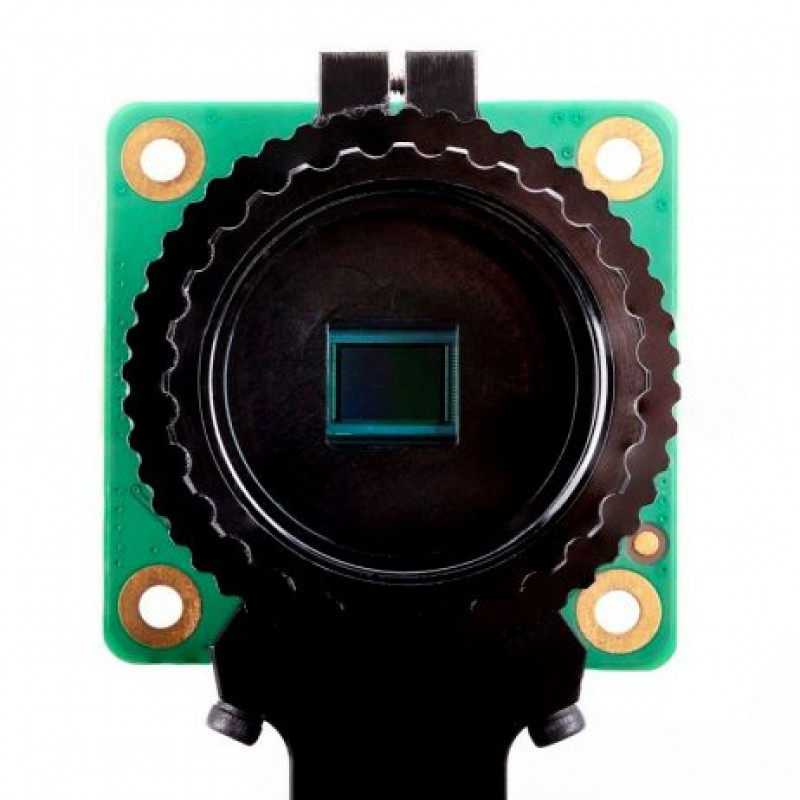

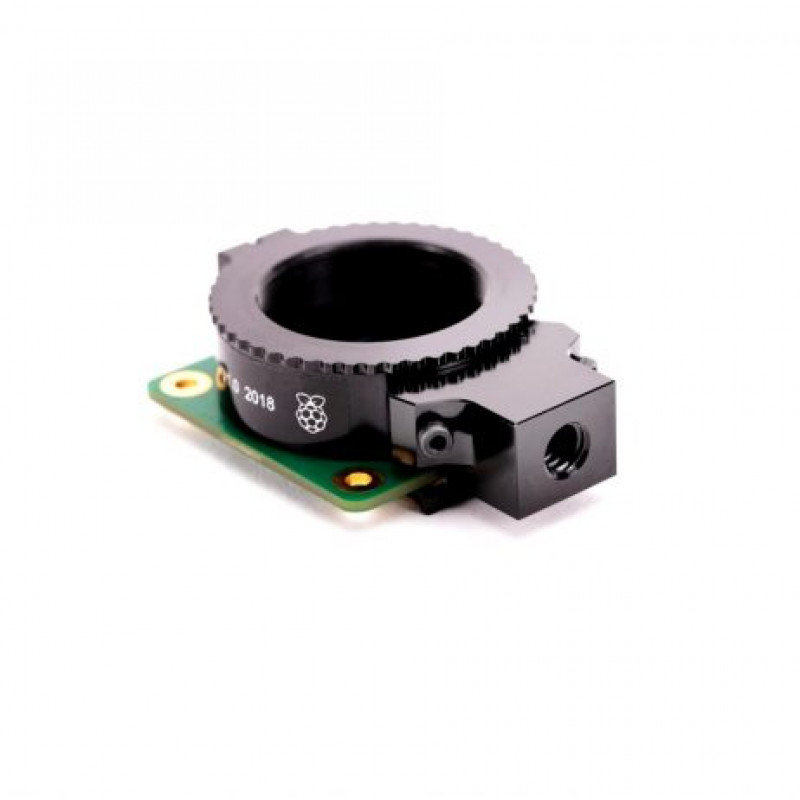

The Raspberry Pi Foundation has announced a new camera board in its official Accessories that would dramatically improve the photographic capabilities available to the popular DIY computers enthusiasts and hobbyists. It's called the High-Quality Camera, It comes with a 7.9mm (Type 1/2.3) Sony IMX477 12.3-megapixel back-illuminated sensor, along with the amount that works with off the shelf C- and CS-mount lenses used on industrial and 16mm film cameras. It is compatible with Raspberry Pi 1/2/3/4 boards.

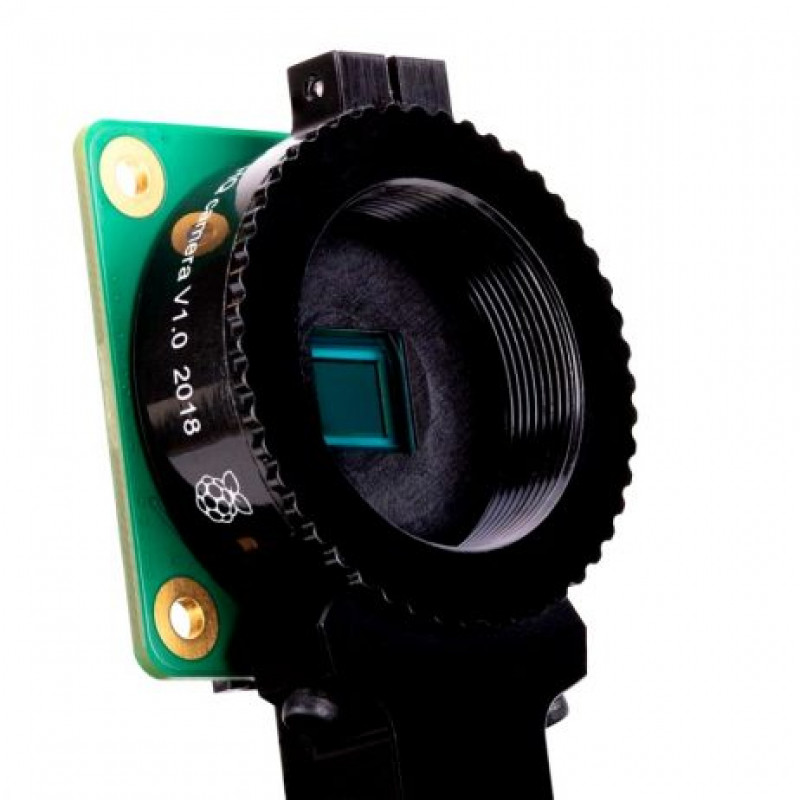

There have been official Raspberry Pi camera boards before, but they used much smaller, lower-resolution sensors and relied on fixed-focus lenses. This High-Quality Camera is much more flexible DIY camera now which supports interchangeable C- and CS-mount lenses and offers adjustable back focus.

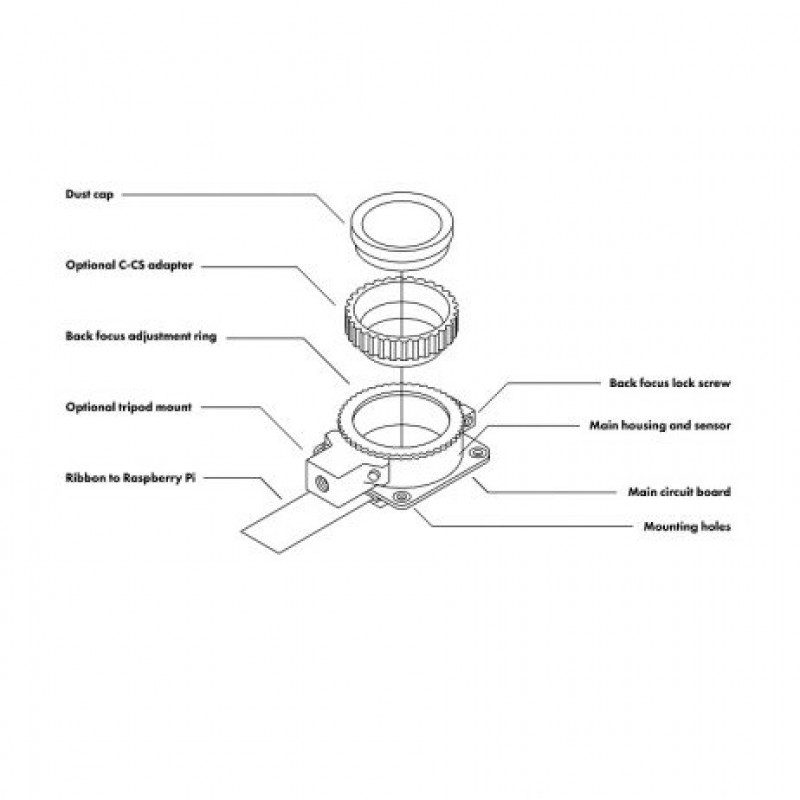

The board has a CS-mount but comes with a C-mount adapter. This means that it'll be easy to attach a wide variety of lenses through third-party products

Interchangeable lenses

The High-Quality Camera is designed to accept CS-mount lenses and, with the supplied adapter, C-mount lenses. The CGL 6 mm CS-mount and 16 mm C-mount lenses are examples of third-party products that are compatible with the High-Quality Camera; see step-by-step instructions for fitting these CS-mount and C-mount lenses.

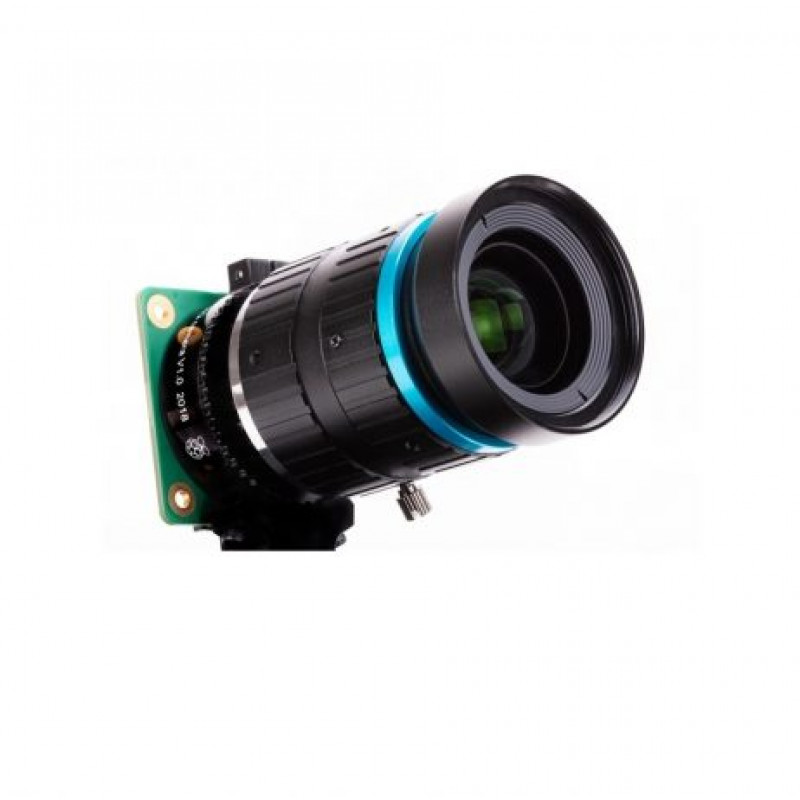

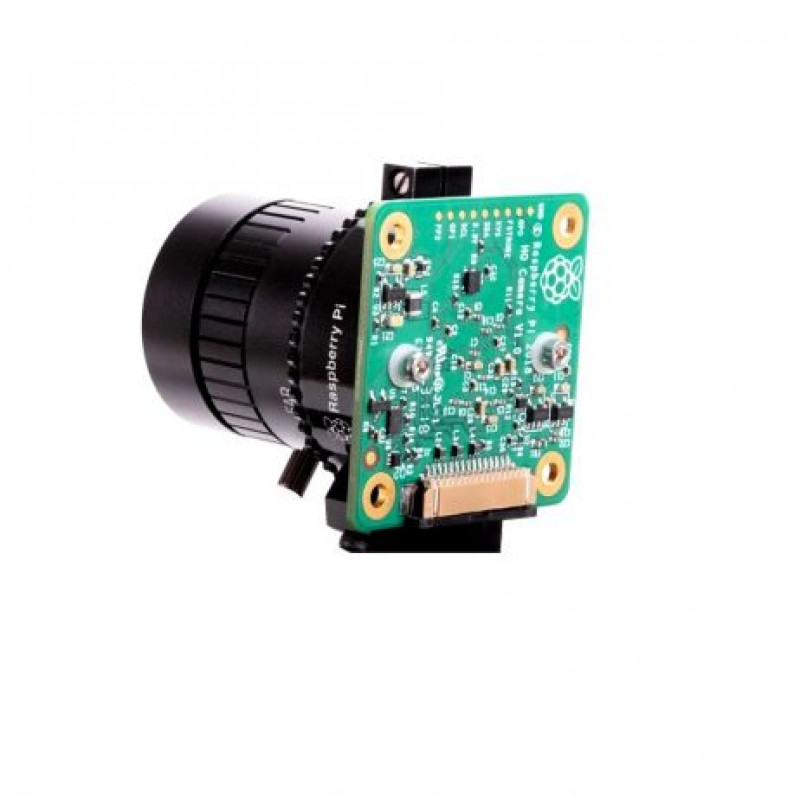

Note: This Camera does not come with the lenses shown in the pictures, you have to buy it separately.

Features of Raspberry Pi High Quality Camera with Interchangeable Lens Base:-

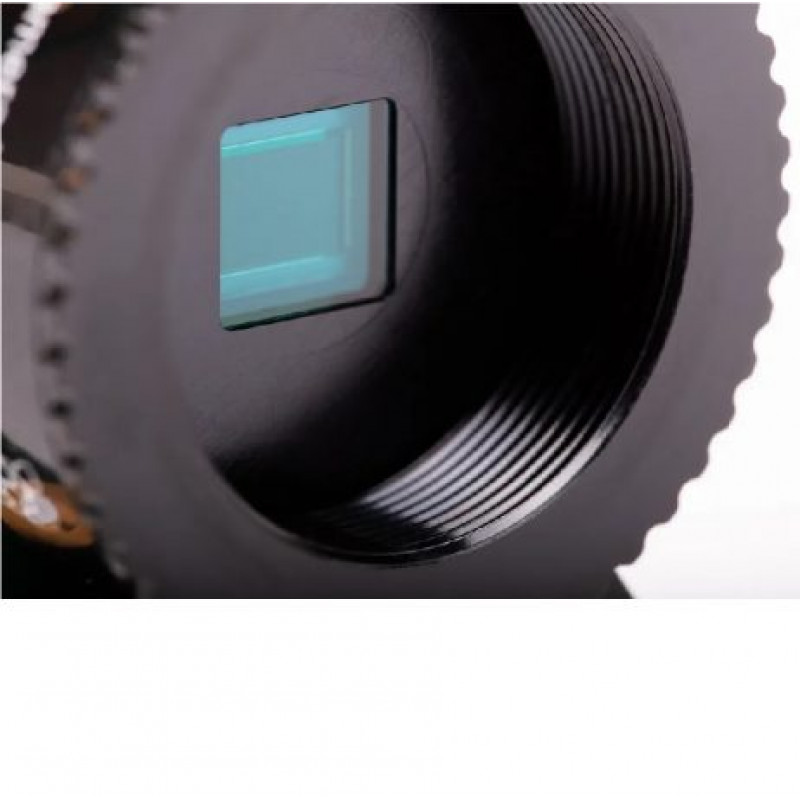

1. Sony IMX477R stacked, back-illuminated sensor.
2. Resolution: 12.3 megapixels.
3. Output: RAW12/10/8, COMP8
4. Compatible with Raspberry Pi 1/2/3/4 boards
5. Back focus: Adjustable (12.5 mm-22.4 mm)
6. Lens standards: C-mount, CS-mount (C-CS adapter included)
7. IR cut filter: Integrated

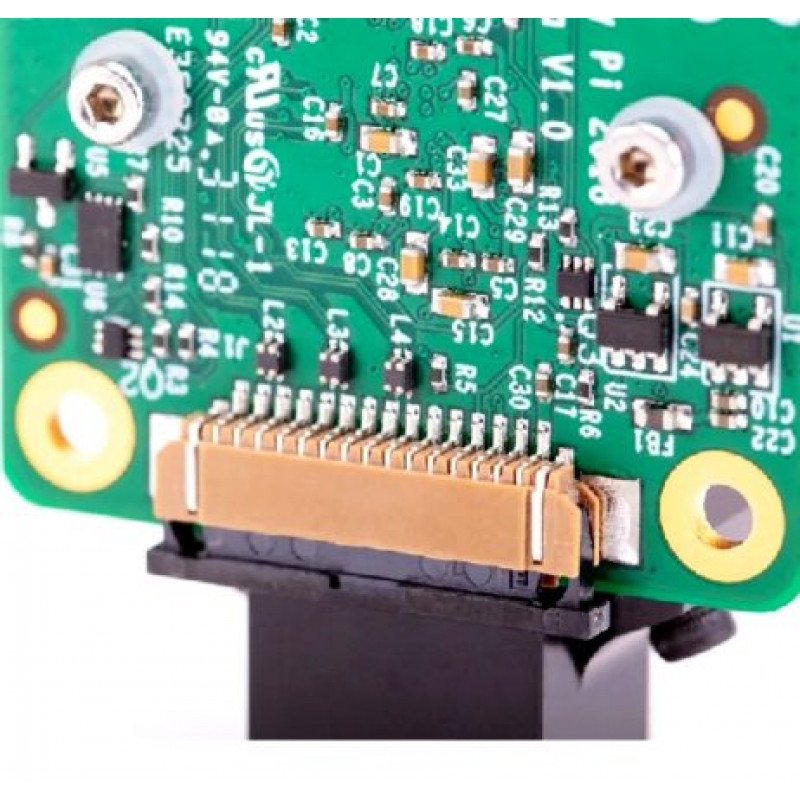

8. Ribbon cable length: 200 mm
9. Tripod mount: 1/4-20

Specifications of Raspberry Pi High Quality Camera with Interchangeable Lens Base:-

Package Includes:

1 x Raspberry Pi High-Quality Camera

1 x Ribbon cable (200 mm)
