This is a Waveshare 17.78 CM (7 inch) 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface. Toughened glass capacitive touch panel. It supports Raspberry Pi and can also be used as a computer monitor. This Display is Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, driver free.
Hardware connection:
- Connect the DSI interface of 7inch DSI LCD to the DSI interface of Raspberry Pi.

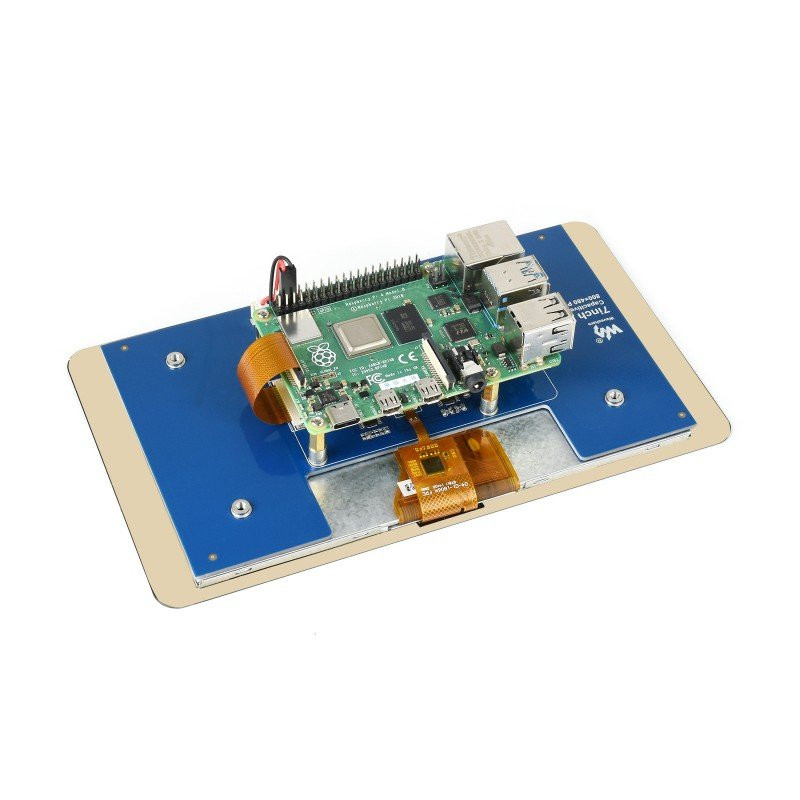

- For easy use, you can fix the Raspberry Pi on the backside of the 7inch DSI LCD with screws
Note: Raspberry pi is not Included in this kit, You have to buy it Separately
Features:
- 7 inch TFT screen. 800480 hardware resolution
- Capacitive touch panel, support 5-point touch
- Supports Pi 4B/3B+/3A+/3B/2B/B+/A+. Another adapter board is required for CM3/3+
- DSI interface, refresh rate up to 60Hz.
- Supports Raspbian/Ubuntu/Kali and WIN 10 IoT, driver-free.
- Support backlight adjusts by software.
Package Includes:
1 x Waveshare 17.78 CM (7 inch) 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface
Specifications :-
| Display Size (inch) | 7 |
| Display Resolution | 800480 |
| Display Port | DSI |
| Touch Type | Capacitive |
| Touch Points | 5 |
| Length (mm) | 192.96 |
| Width (mm) | 110 |
| Height (mm) | 40 |
| Weight (gm) | 300 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 5367.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare 17.78 CM (7 inch) 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface
- Product Code: EC-9407
- Availability: Out Of Stock
-
Rs.4949.00
- (Excluding 18% GST)
