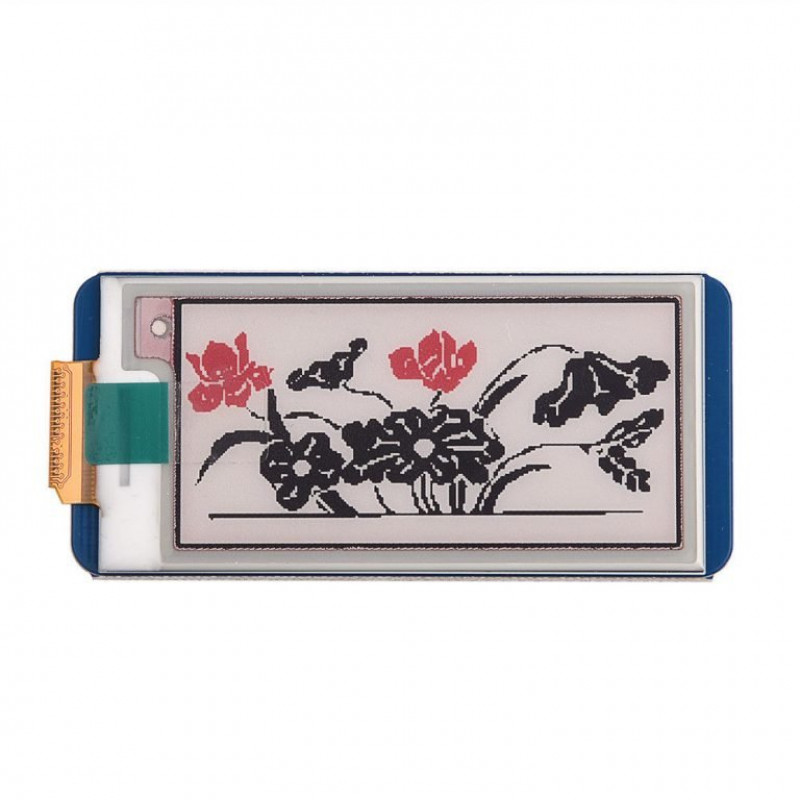

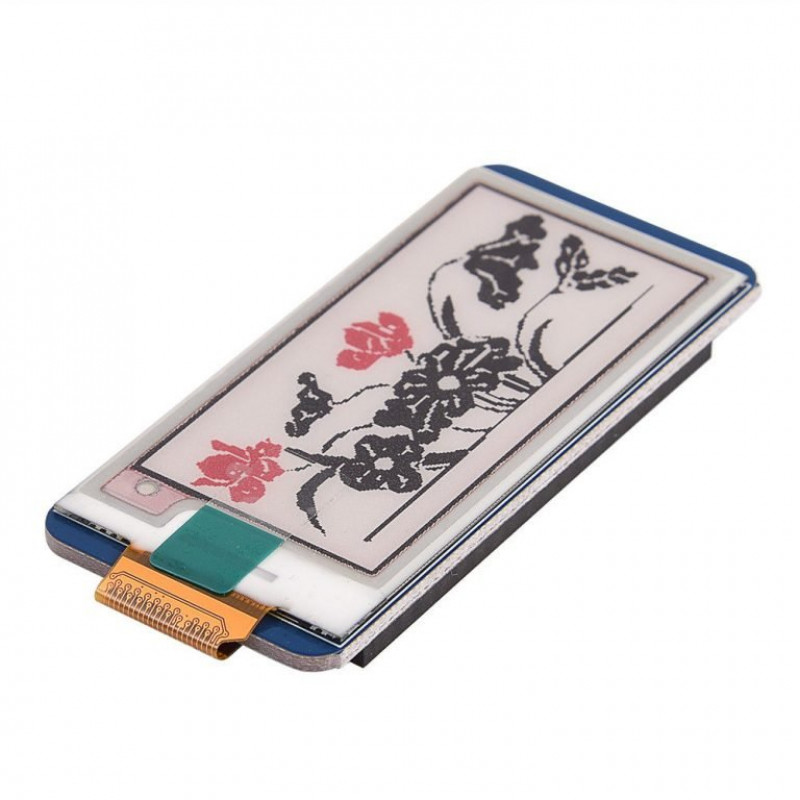

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with an embedded controller, communicating via SPI interface, supports the red, black, and white three-colour display.

There is no backlight so it can keep displaying last content for a long time even when the power is down. As these displays have no backlight panels and it doesn't need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight, Basically power to the display is only required for refreshing. For connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.. SPI interface can be used.


Features:

  1. No backlight keeps displaying last content for a long time even when power is down
  2. Ultra low power consumption, basically power is only required for refreshing

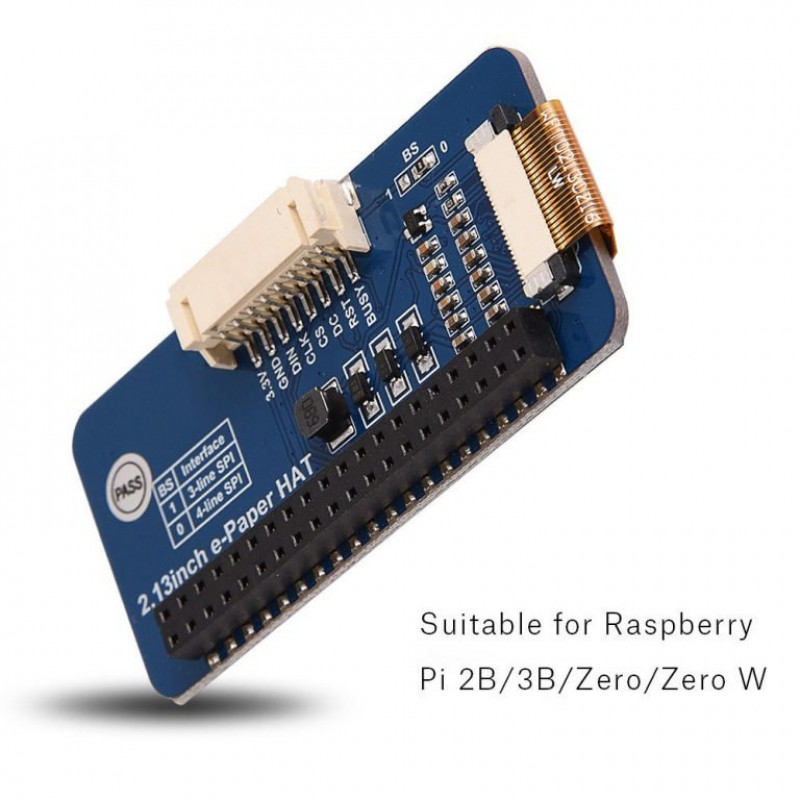

  3. Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  4. Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.

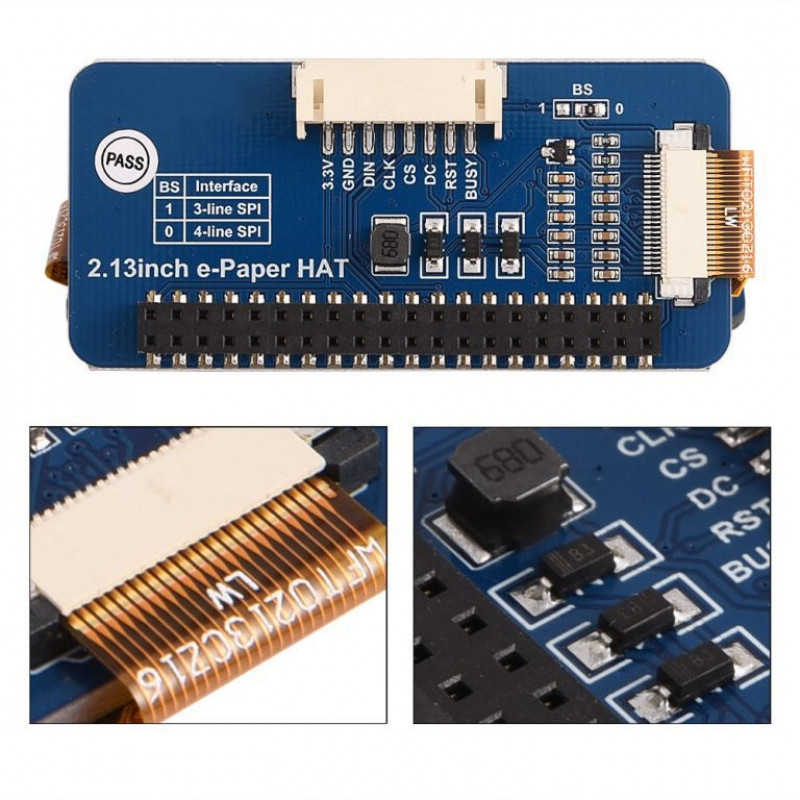

  5. Onboard voltage translator, compatible with 3.3V/5V MCUs
  6. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

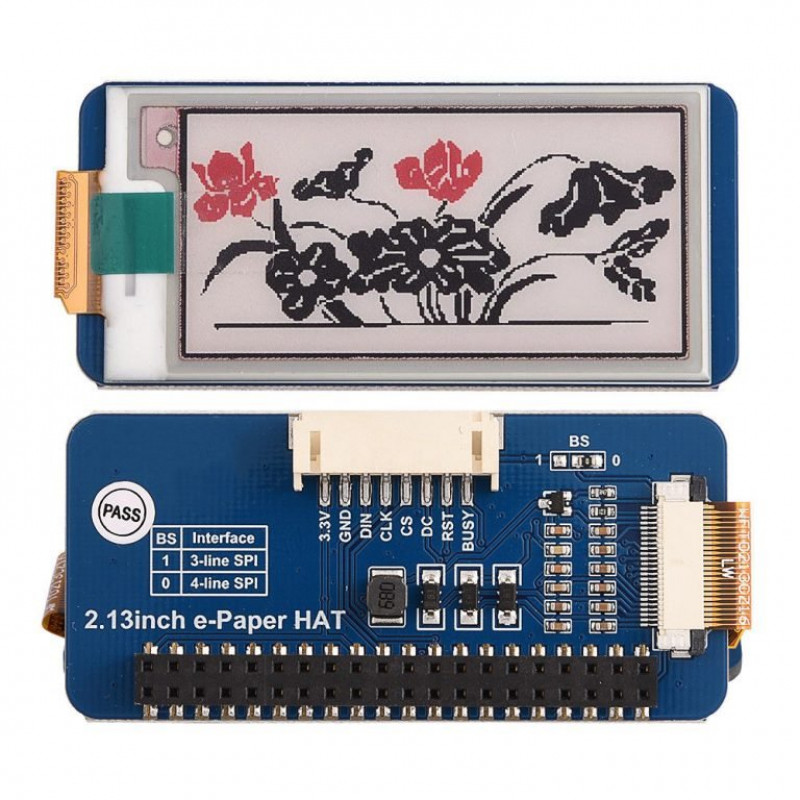

Interface:

SYMBOLDESCRIPTION
VCC3.3V/5V
GNDGround
DINSPI MOSI pin
CLKSPI SCK pin
CSSPI chip selection, low active
DCData/Command selection (high for data, low for command)
RSTExternal reset, low active
BUSYBusy status output, high active


Useful Links:

Wiki : www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(B)

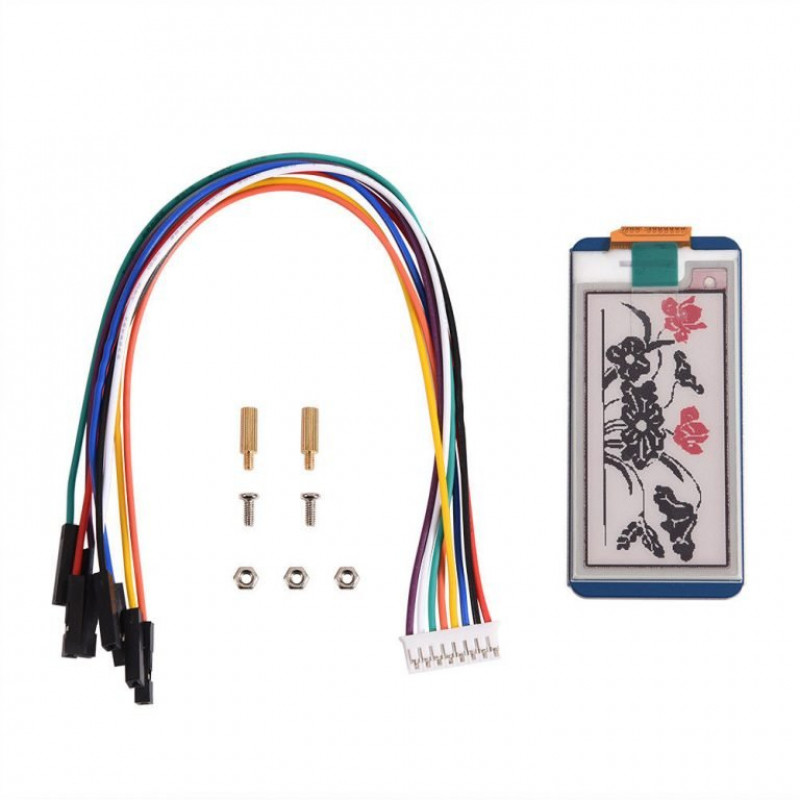

Package Includes:

1 x2.13inch E-Ink Paper display HAT for Raspberry Pi

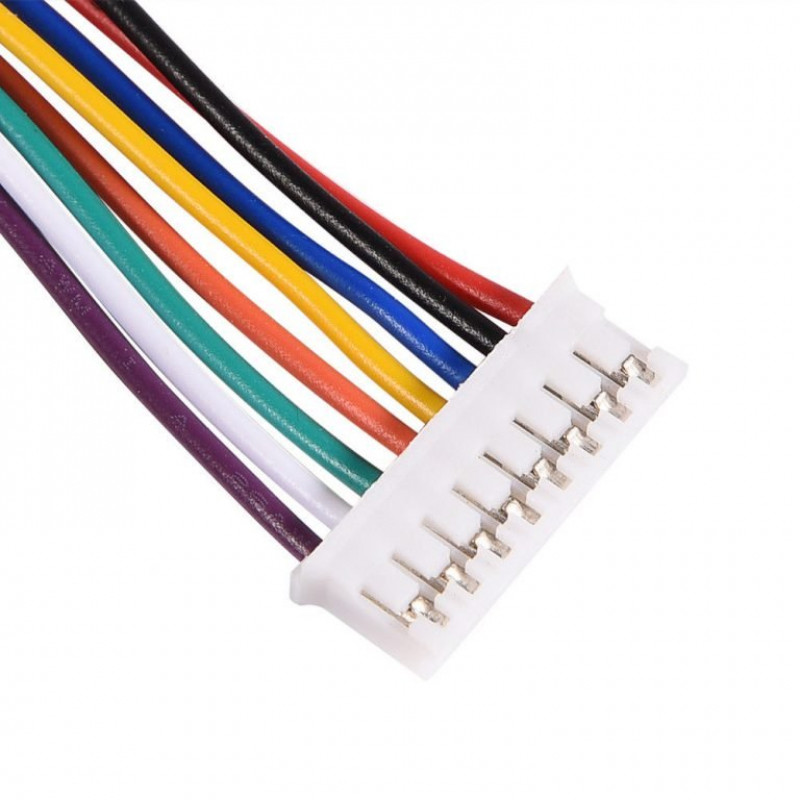

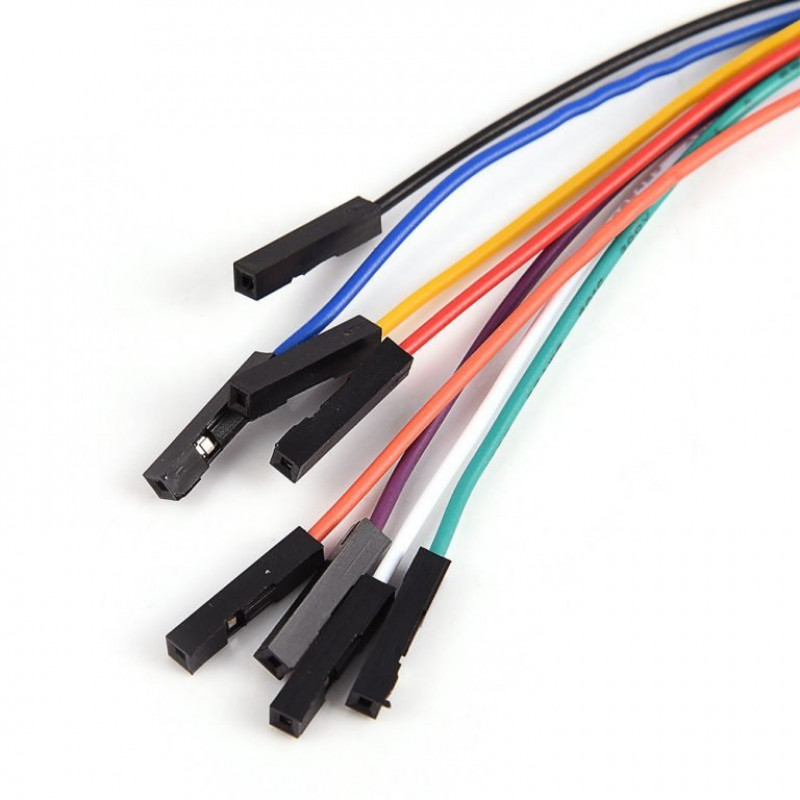

1 x Interfacing Cable

1 x Nut-Bolt and Spacer set

Note: No Raspberry Pi is included in Package



Specifications :-

Operating Voltage (VDC)

3.3

Display Size (inch)

2.13

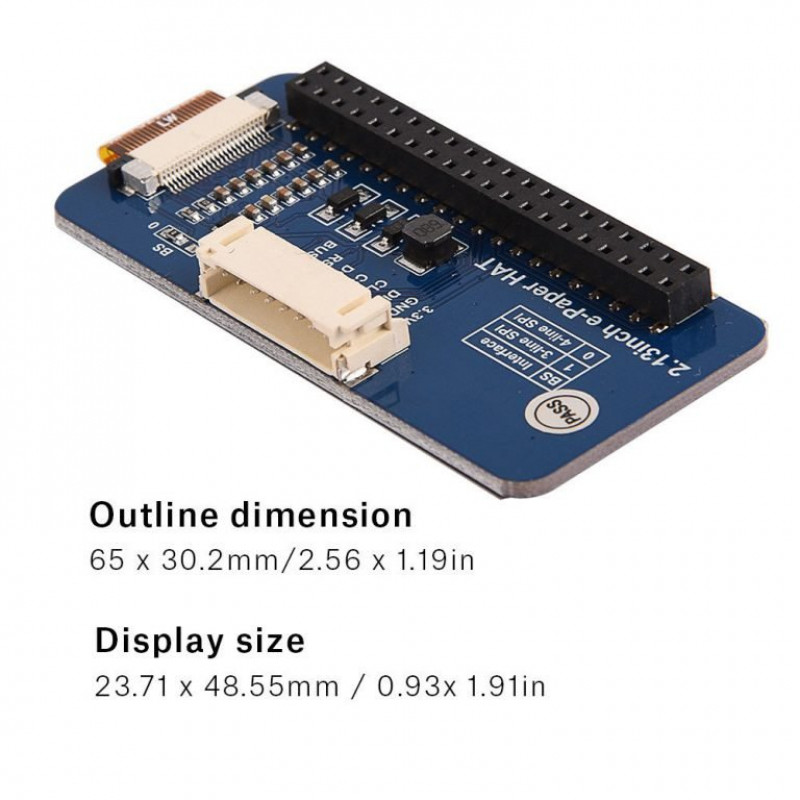

Outline dimension (mm)

65 30.2

Dot Pitch

0.229 0.228

Grey level

2

Display Color

Red, Black and White

Display Resolution

212 104

Viewing Angle

>170

Interface

3-wire SPI, 4-wire SPI

Full Refresh Time (s)

15

Refresh Power

26.4mW(typ.)

Standby Power (mW)

<0.017

Dimensions in mm (LxWxH)

65 x 31 x 8

Weight (gm)

20


Brand/Manufacturer Waveshare
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1886.82 (Inclusive of all Taxes)
